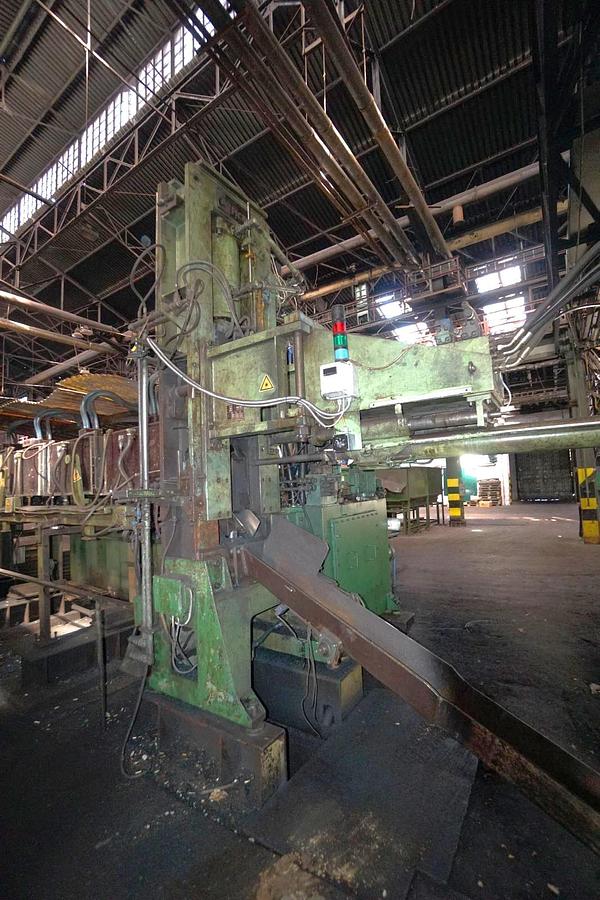

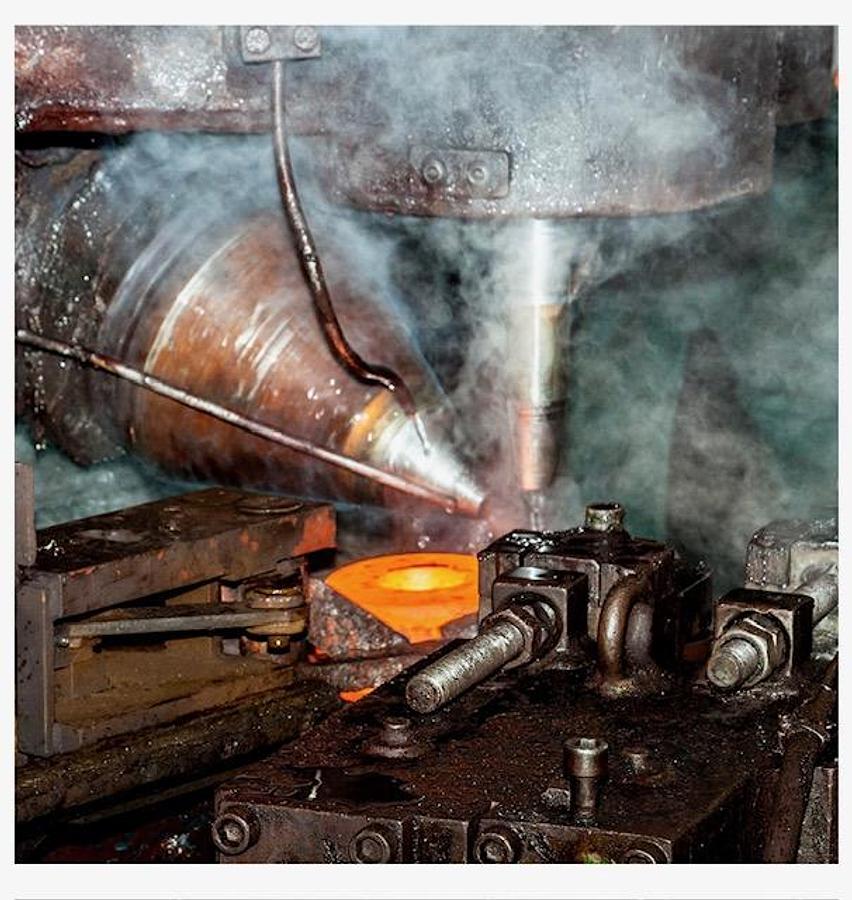

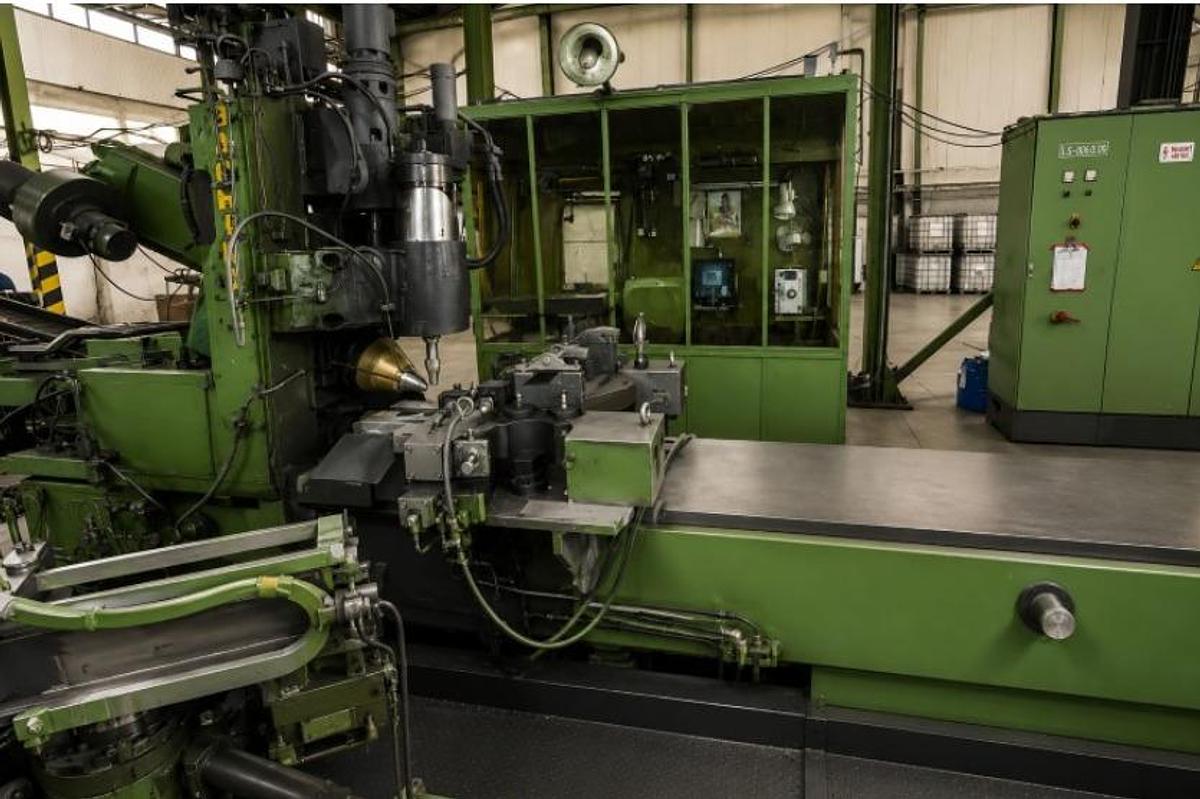

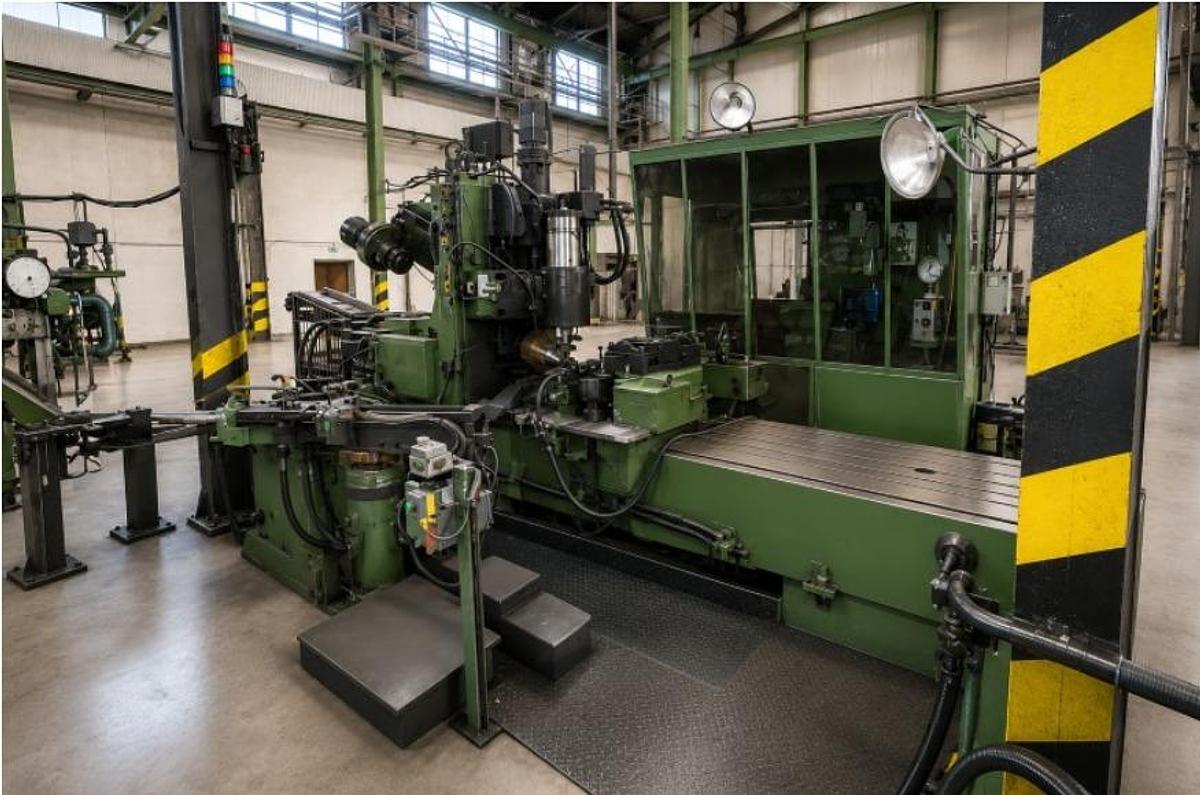

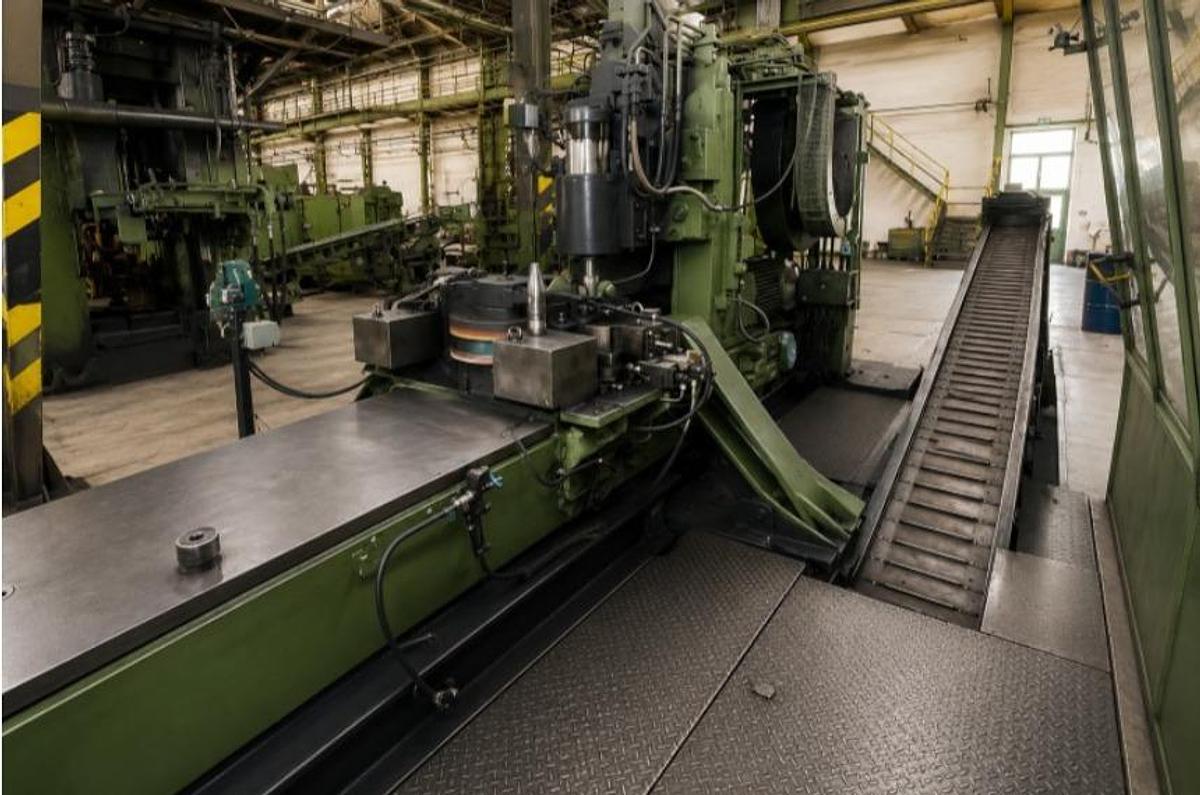

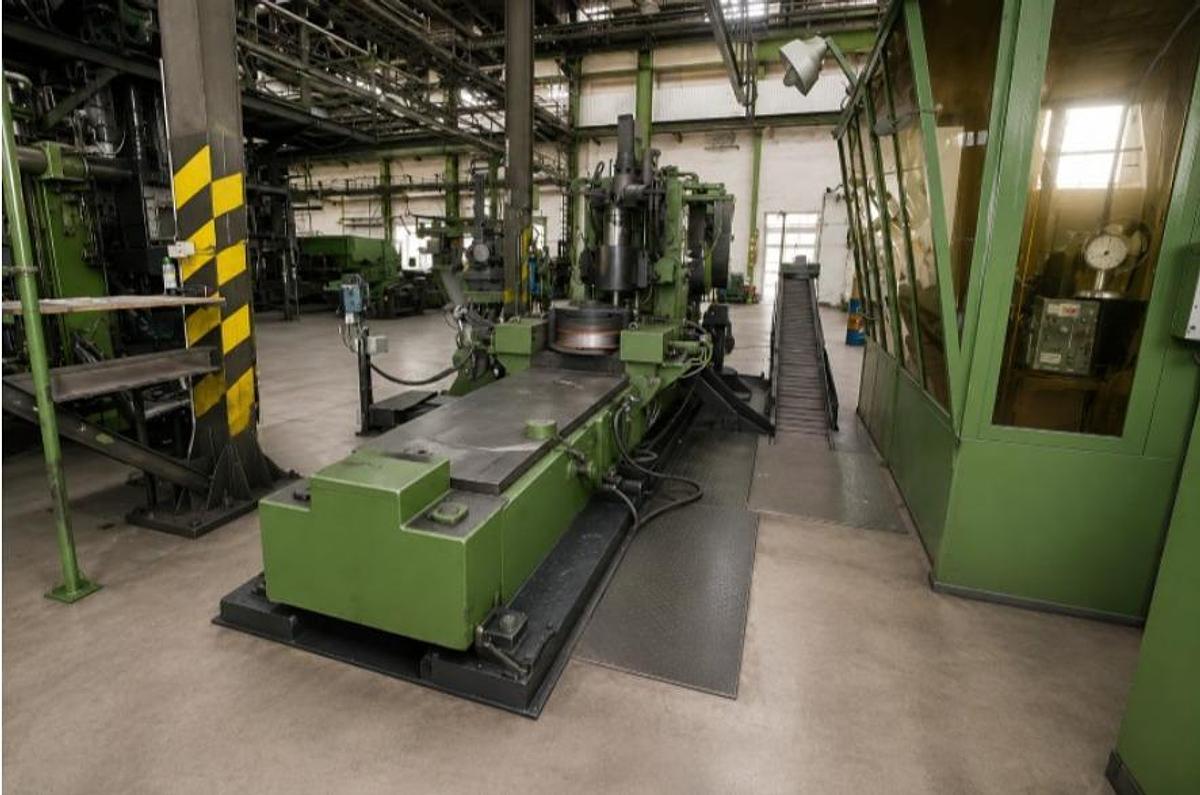

Ring Rolling Line Banning Mira20/12

Make : Banning

Model : Mira20/12

Max. exterior diameter of the ring : max.100 – 350 mm,

Height of the ring : 35 – 135 mm,

Max. ring weight : 12 kg,

Radial rolling force : 20 tons,

Axial rolling force : 12 tons,

Rolling speed : 2.20 m/s,

Main roller diameter : 500 mm,

Driving power : 210 kW / 380 V / 50 Hz.

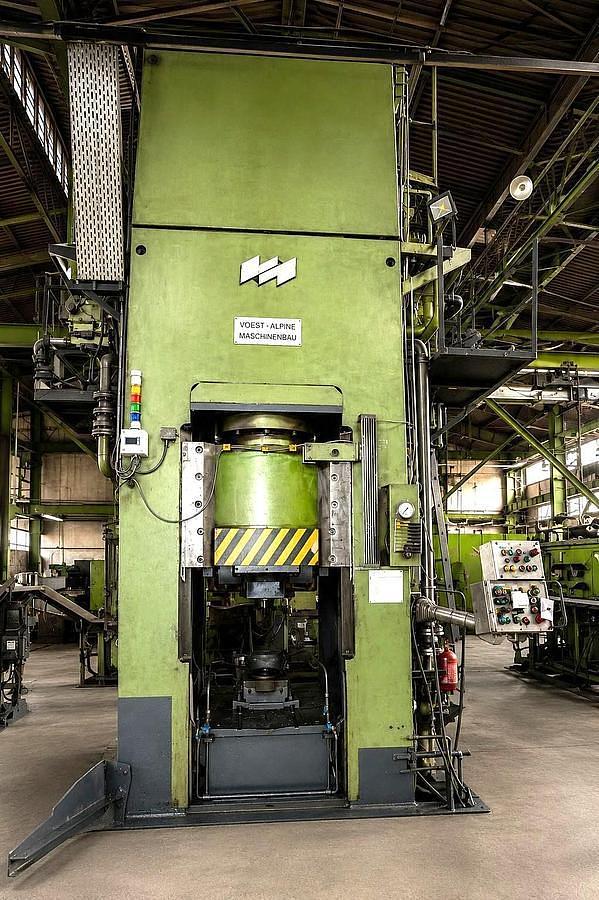

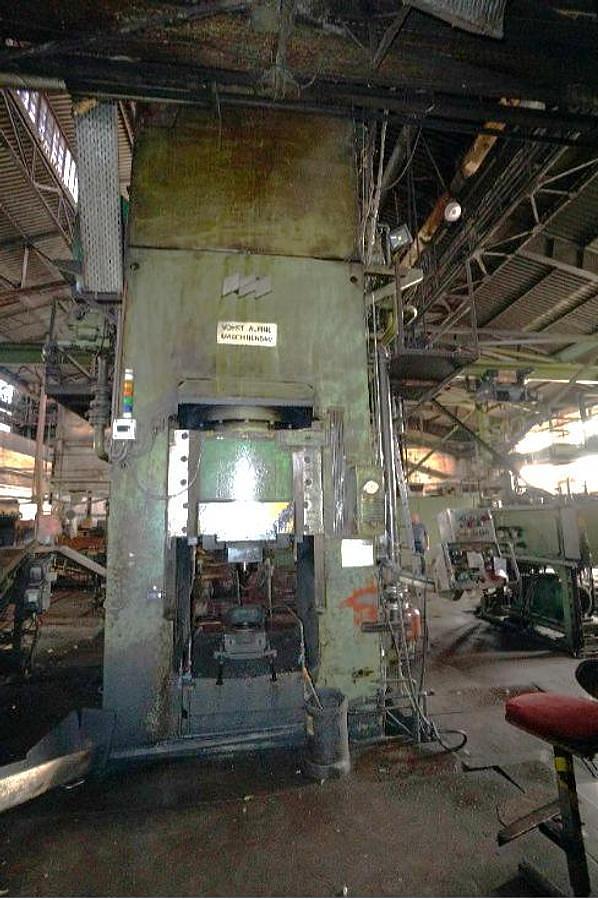

Press Forging Hydraulic

Make : Voestalpine

Model : PVRS10000X

Capacity : 1000 tons,

Stroke : 600 mm,

Table size (left to right) : 950 x 1100 mm,

Ram (left to right) : 960 x 1060 mm,

Height of table above floor : 1050 mm,

Max. Height above floor : 6400 mm,

Pressure speed : 52,5 mm/s,

Return speed : 300 mm/s,

Rapid retraction speed : 340 mm/s,

Driving power : 175 kW / 380 V / 50 Hz.

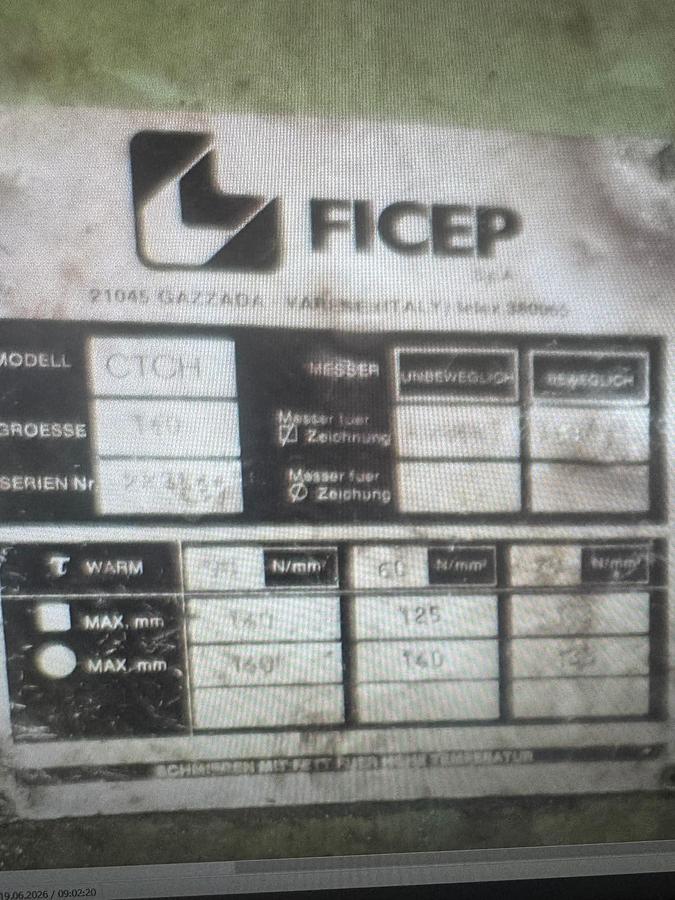

Ficep Hot Shear

Make : Ficep

Model : CTCH,

Size : 140,

Cutting capacity for carbon steel and medium-alloy steel with a cold tensile strength of 800 N/mm2 :

at 1150 C : 50 ÷ 140 mm - 50 ÷ 140 mm,

at 1050 C : 50 ÷ 125 mm - 50 ÷ 140 mm,

Min. / Max. Cutting temperature with standard blade : 950 ÷ 1250 C,

Measuring device (Standard) : 40 ÷ 400 mm,

Loading table capacity : 10 tons,

Cross-section of loaded bars : 50 ÷ 140 mm,

Length of loaded bars : 4.5 ÷ 8 m,

Length of unloaded bars : 3.2 ÷ 8 m.

Machines are currently installed Europe.

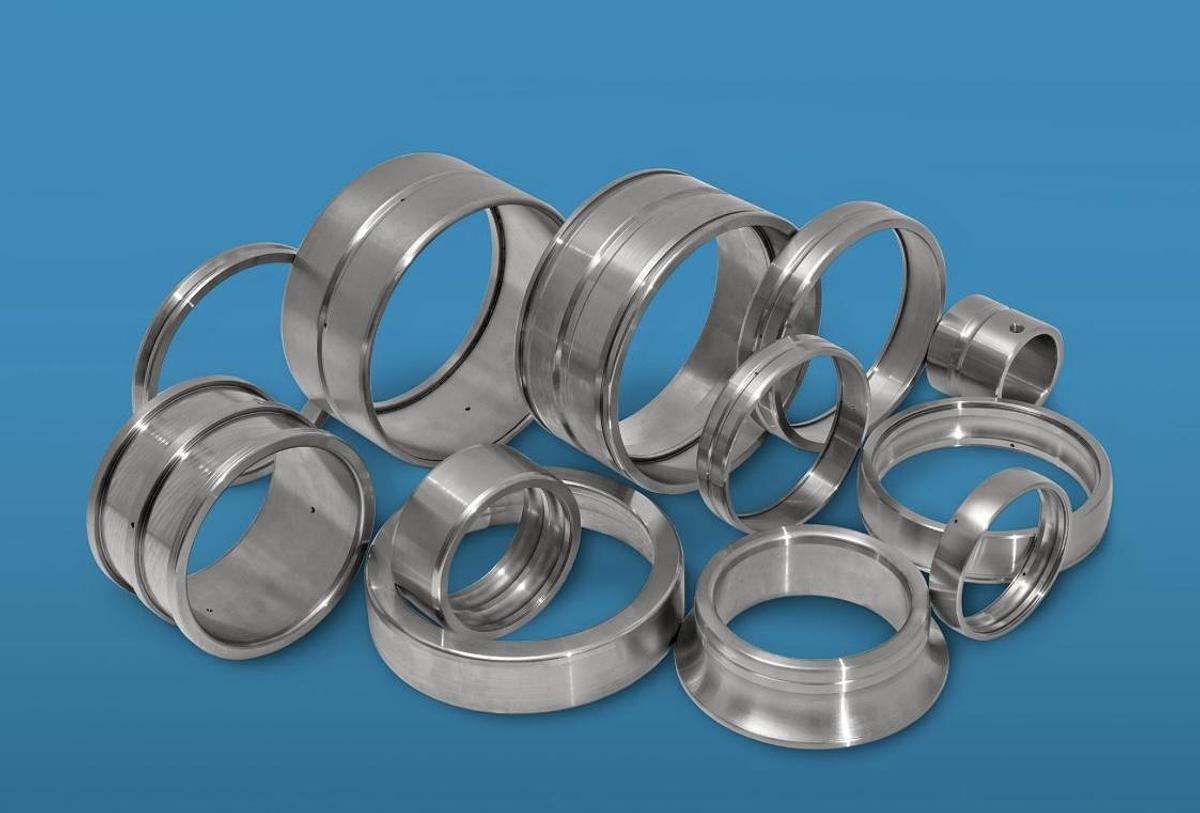

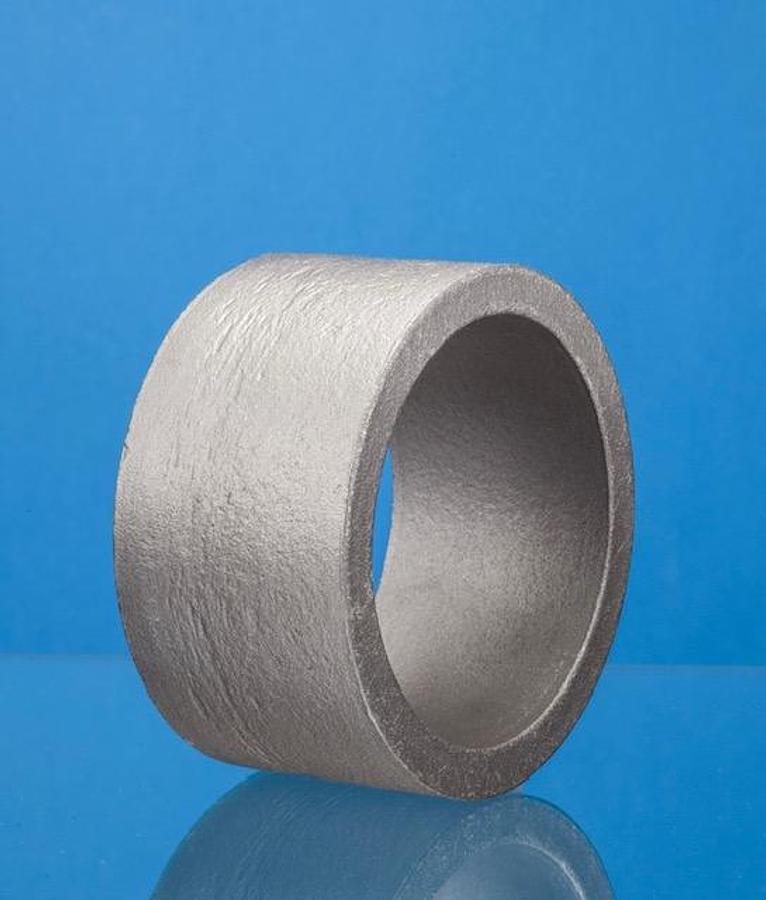

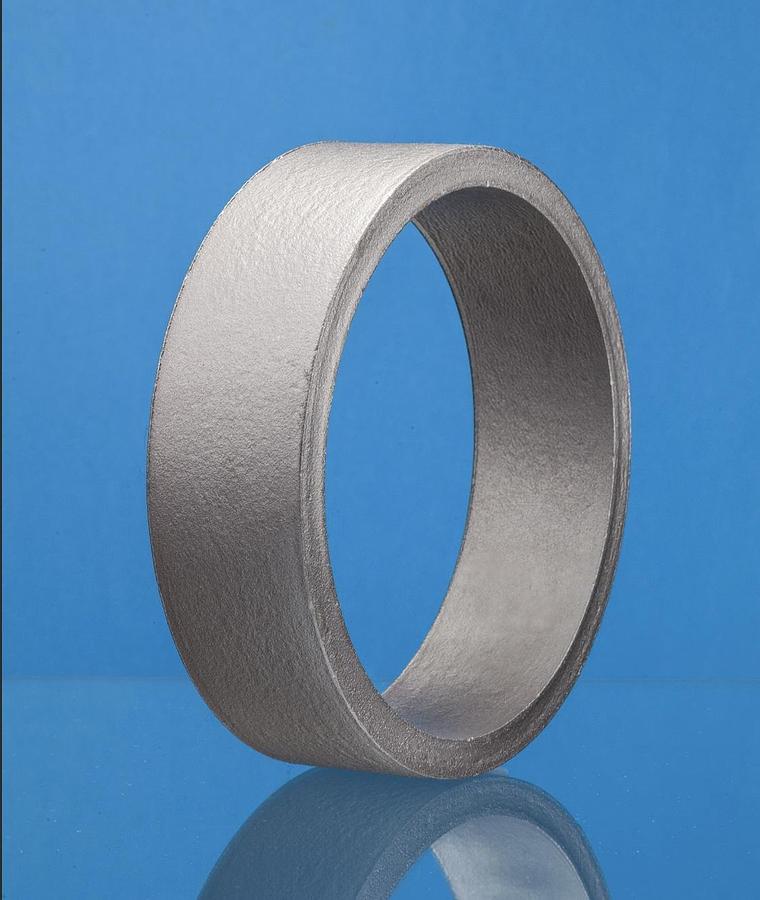

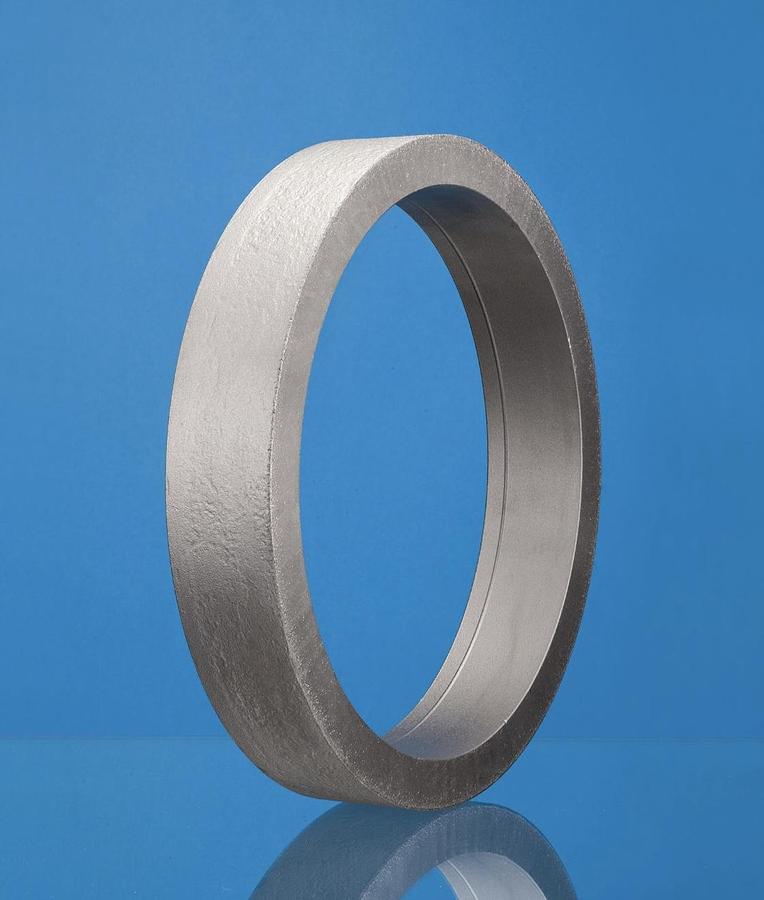

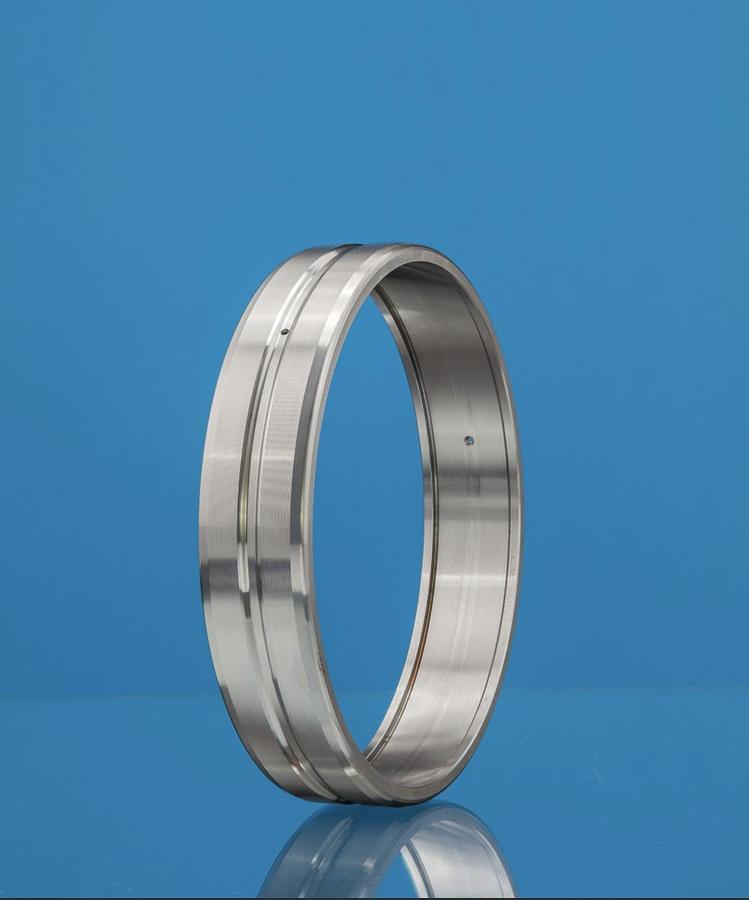

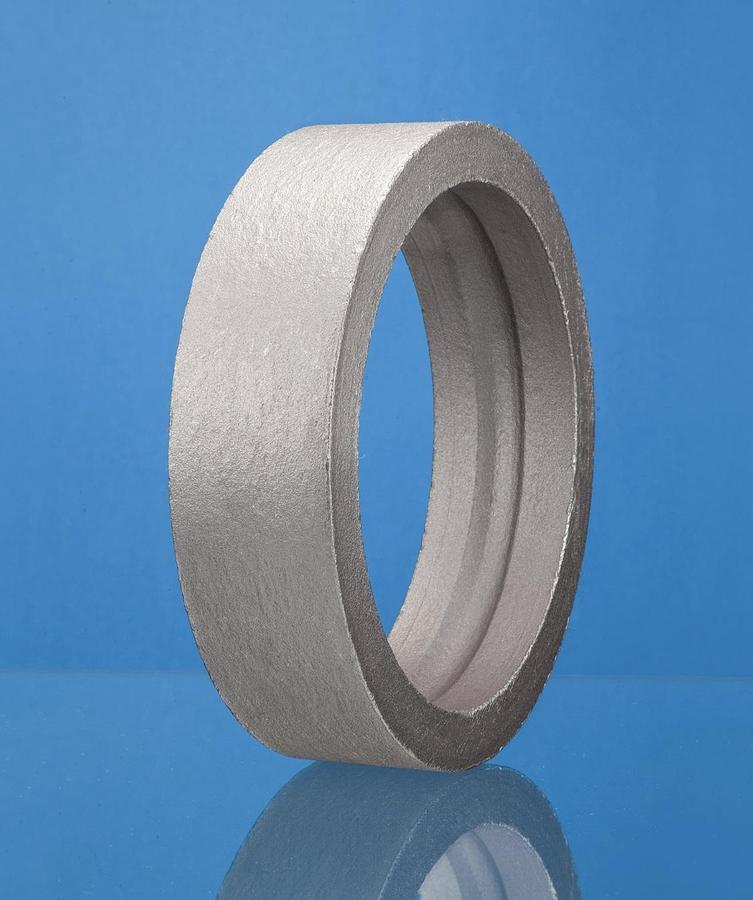

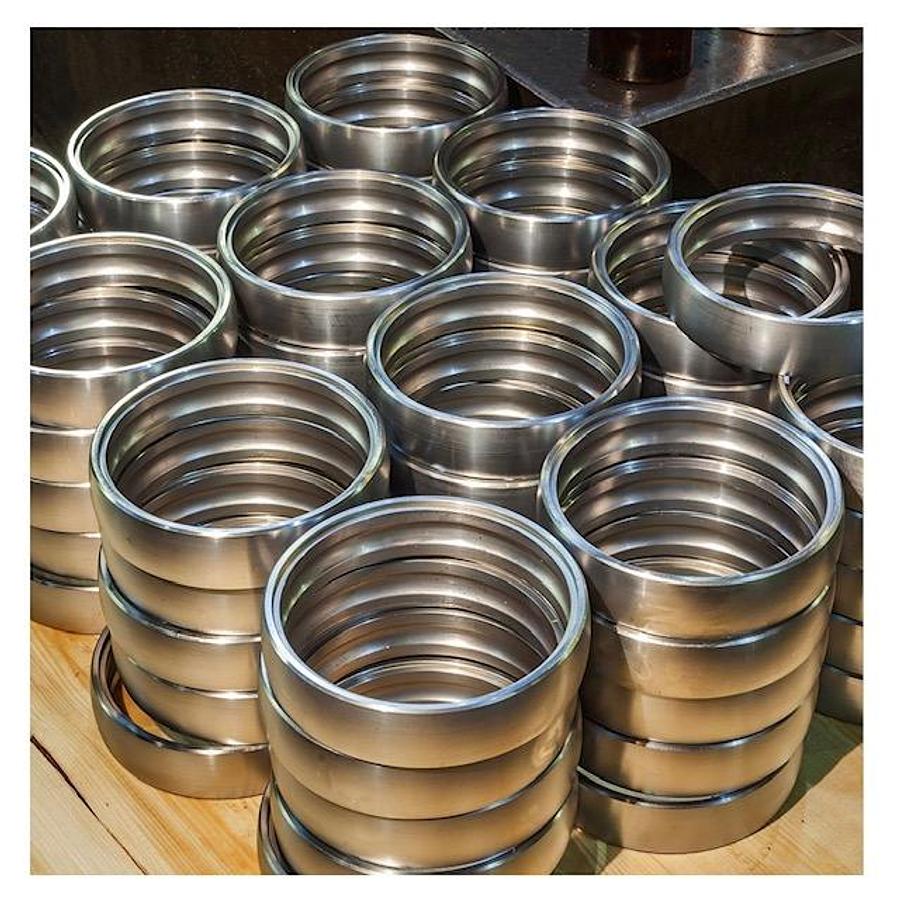

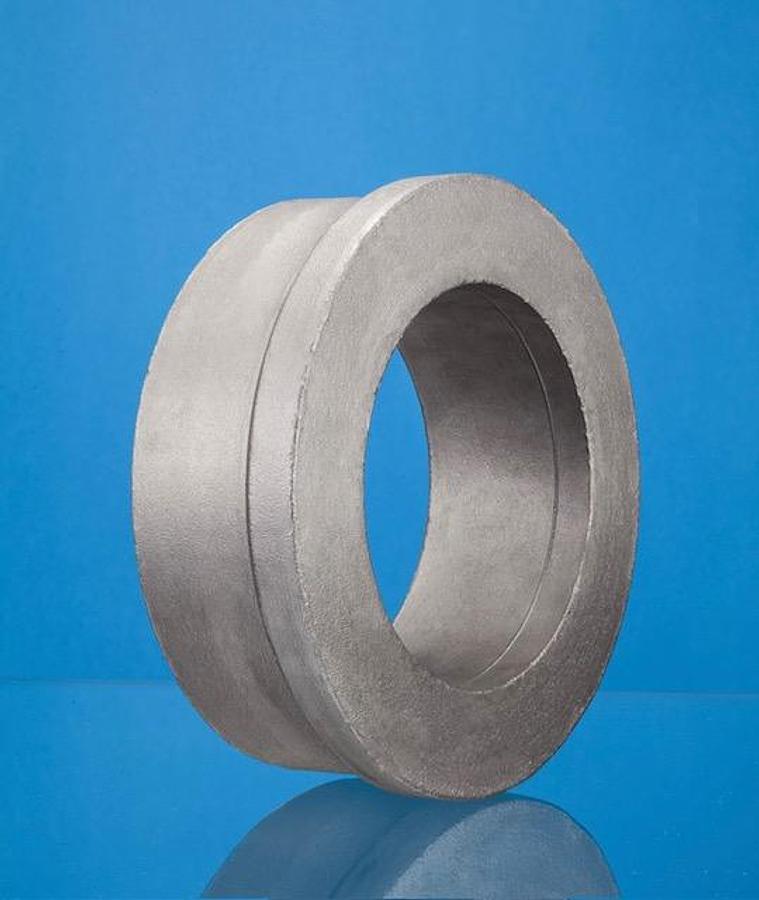

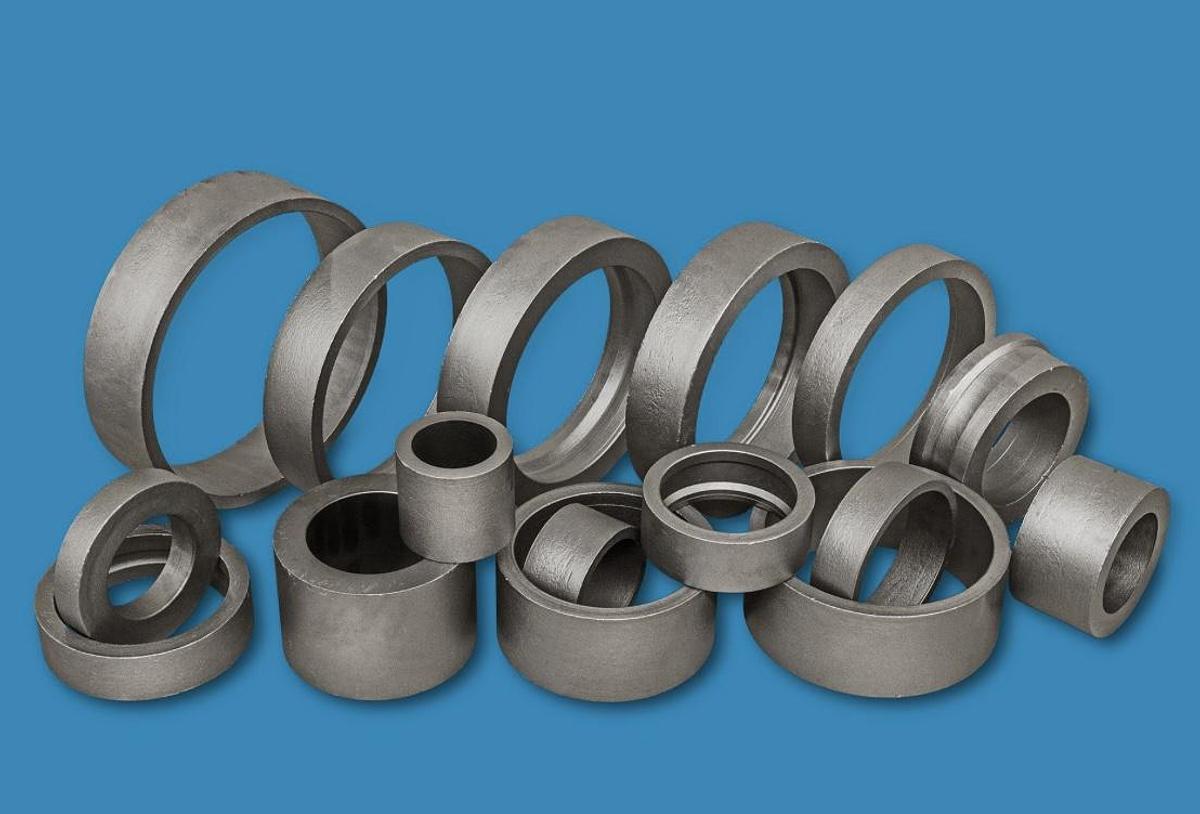

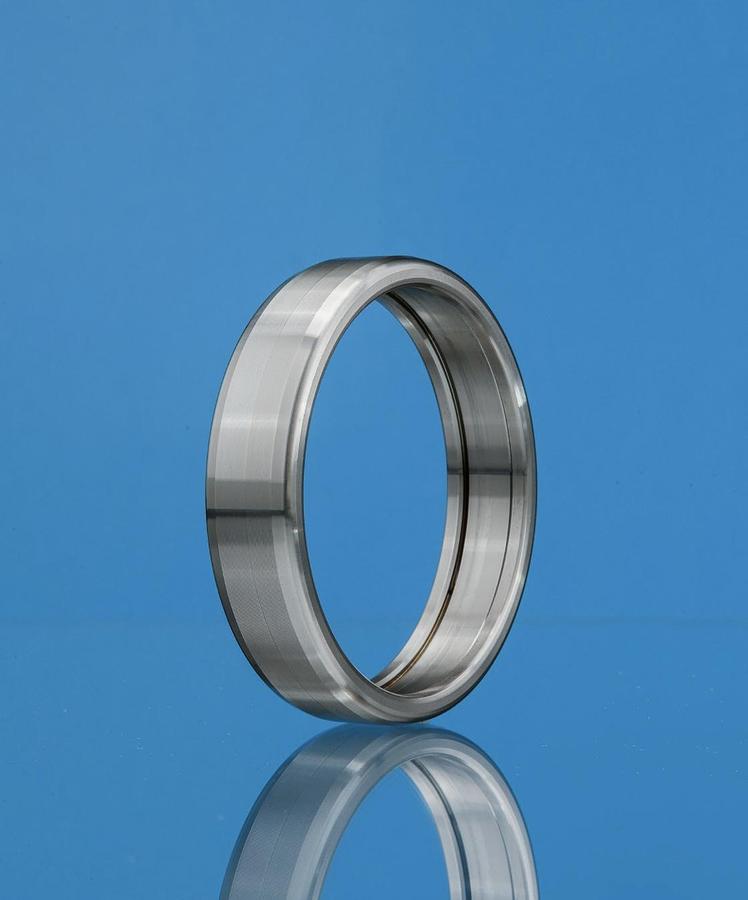

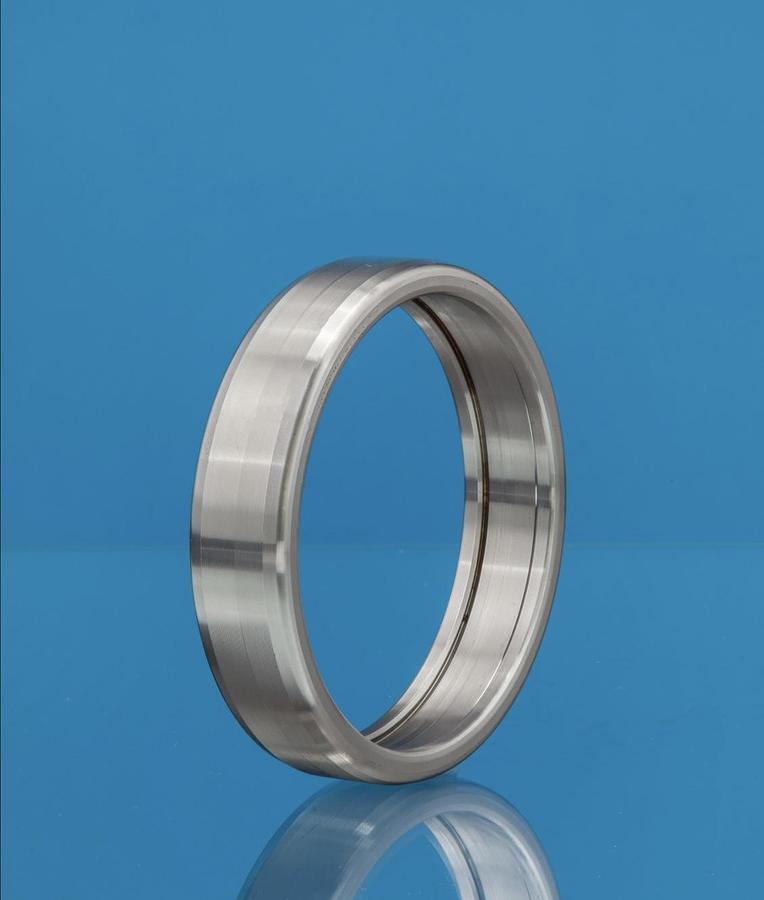

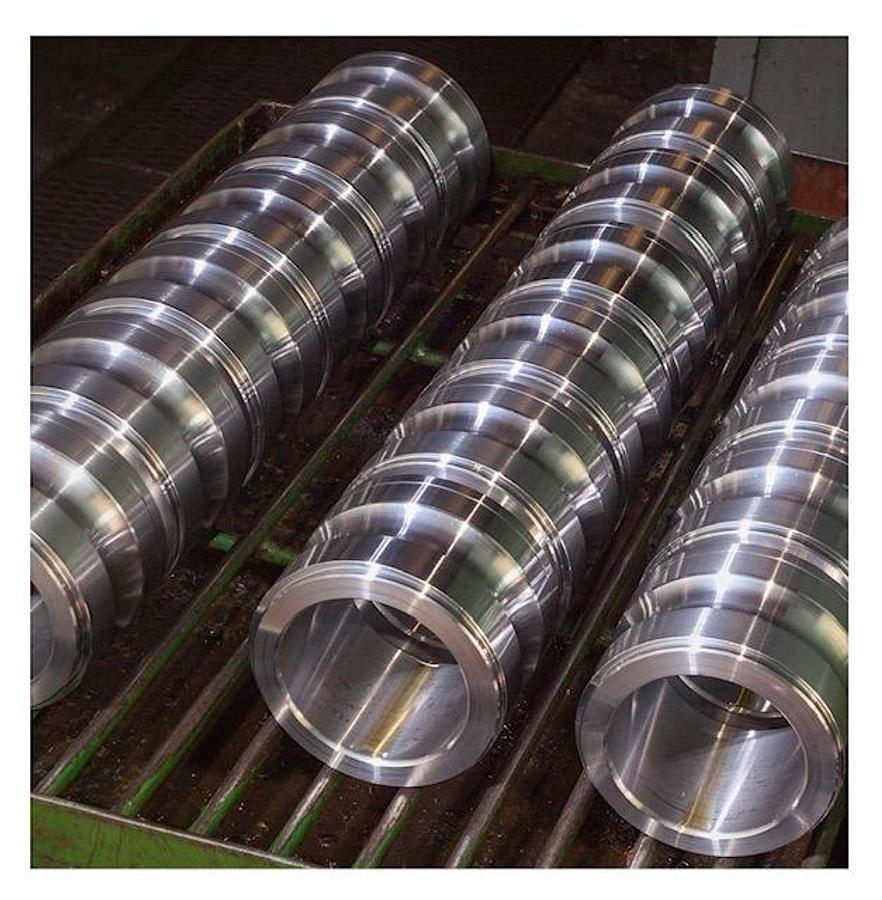

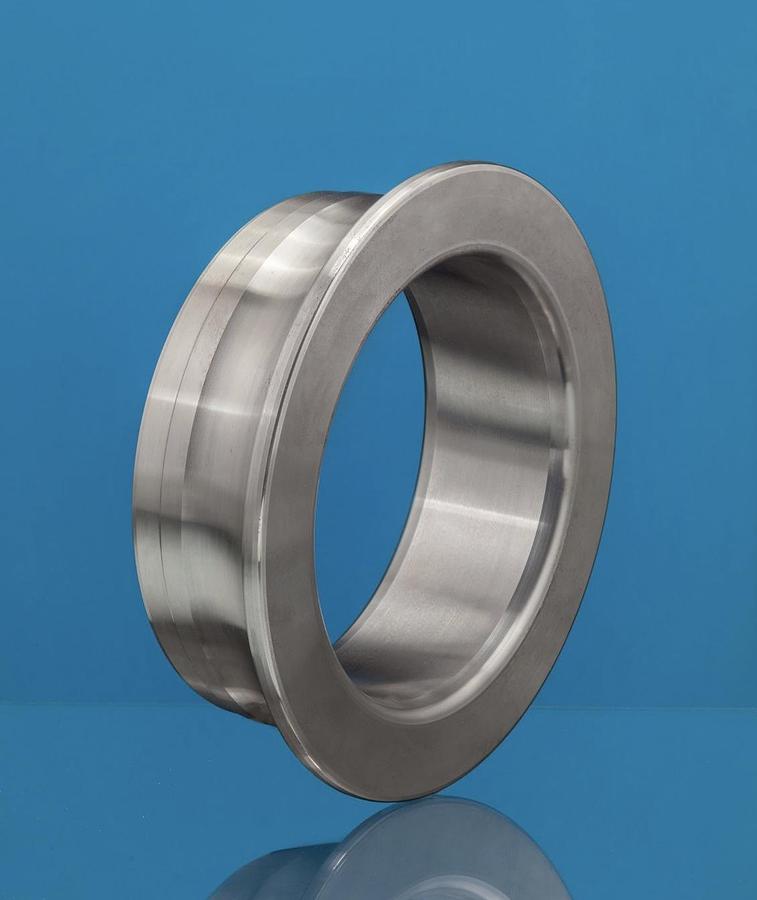

This plant was mainly manufacturing rings up to 350 mm OD for customers like FAG Schaeffler, SKF etc.
