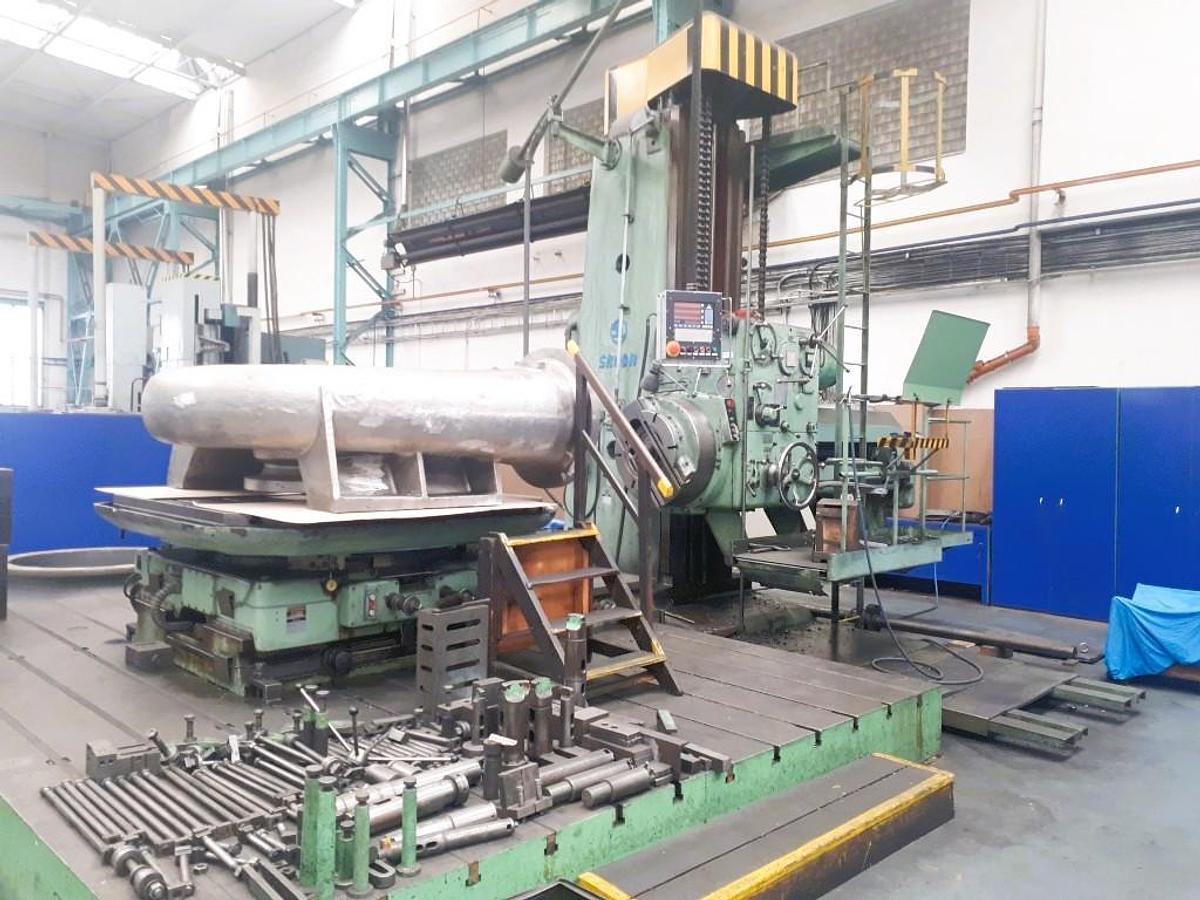

Borer Horizontal Table Type Skoda HVF160D

Spindle Diameter: 160 mm,

Spindle Taper : Metric 100,

Max. Boring Diameter with Spindle : 1000 mm,

Max. Boring Diameter with Facing Head : 1300 mm,

Max. Spindle Travel (W-axis) : 1200 mm,

Max. Spindle Center Height Above Table (Y-axis) : 1900 mm,

Max. Distance Between Facing Head and Steady Rest : 4400 mm,

Facing Head Diameter : 810 mm,

Table Clamping Area Dimensions : 1600 x 1800 mm,

Longitudinal Table Travel Along Bed (X-axis) : 2500 mm,

Cross Table Travel : 2800 mm,

Spindle Speeds : 2.25 – 450 rpm,

Facing Head Speeds : 2.25 – 28 rpm,

Main Motor Power : 18 kW,

Total Machine Weight : 35.5 tons.
