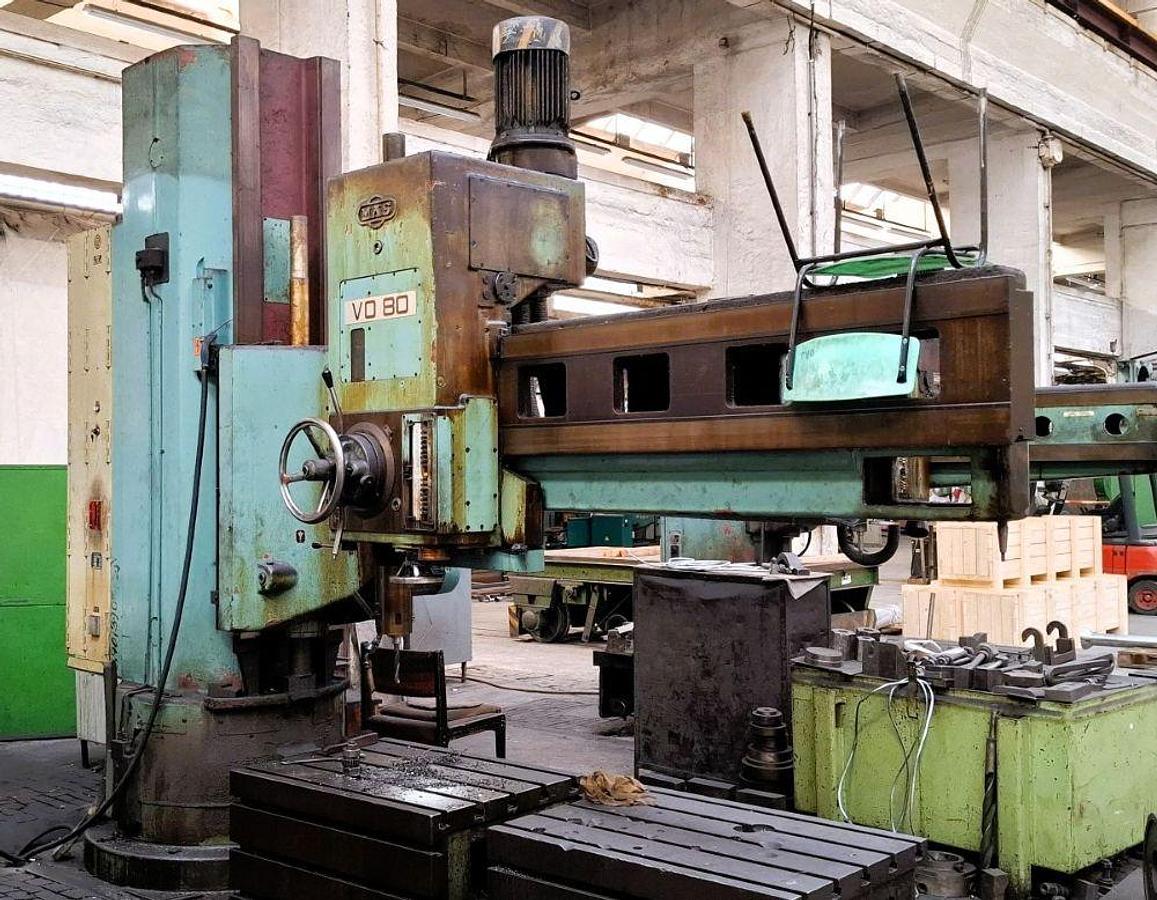

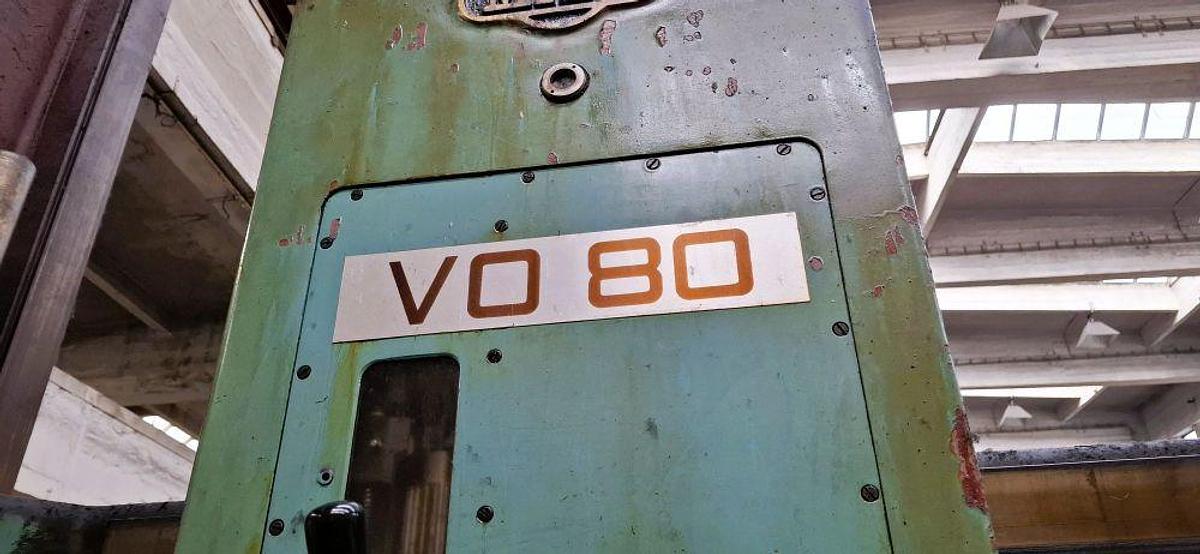

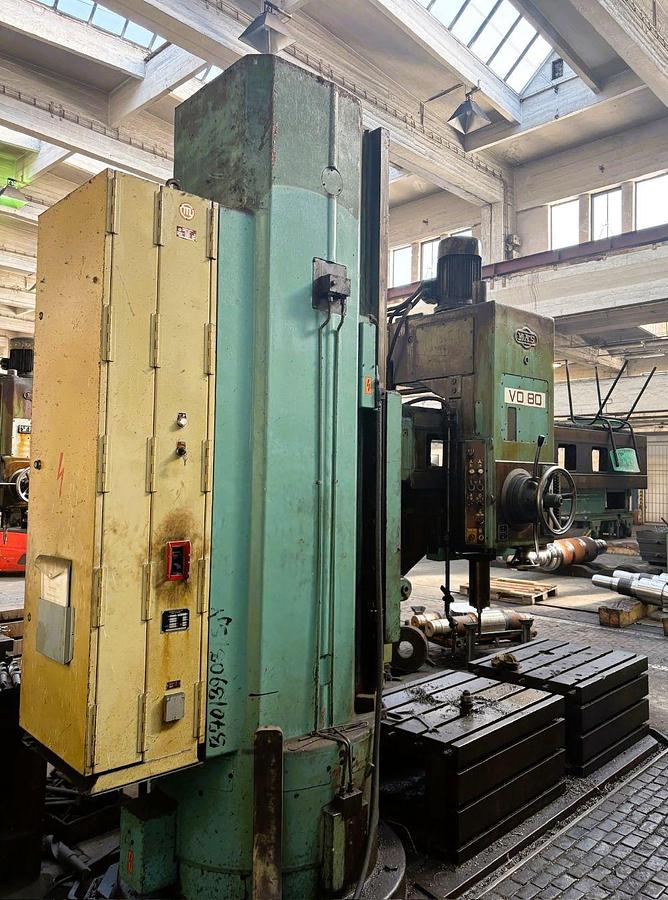

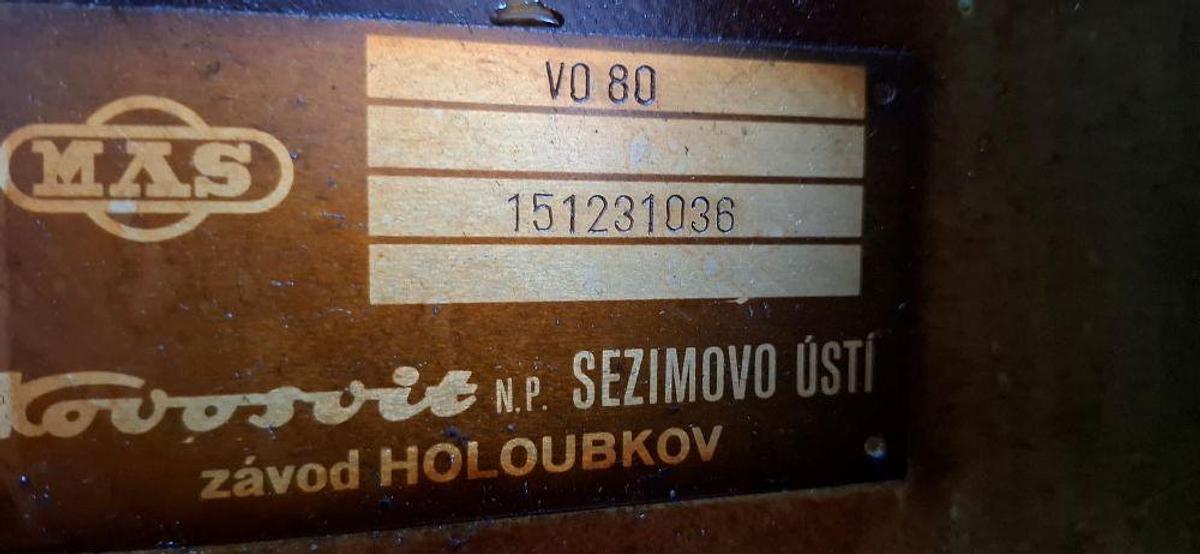

Radial Drilling Machine Mas/Kovosit VO80

Max. drilling dia. in steel : 80 mm,

Max. boring dia. in steel with guide : 300 mm,

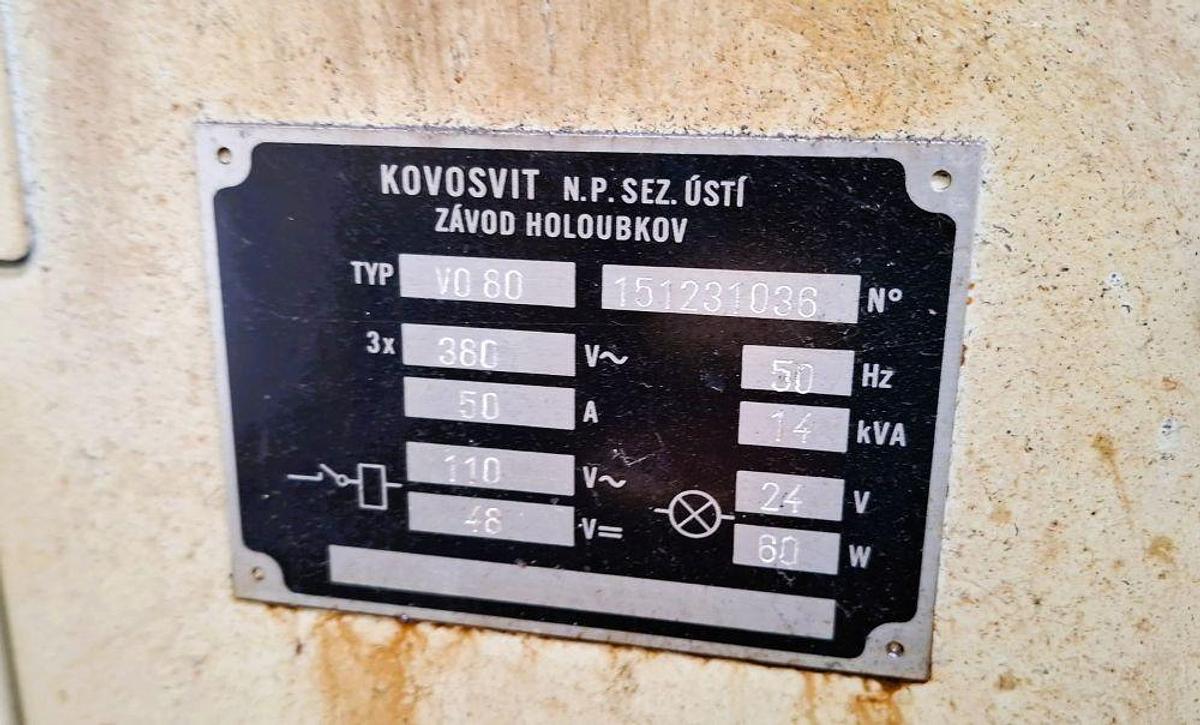

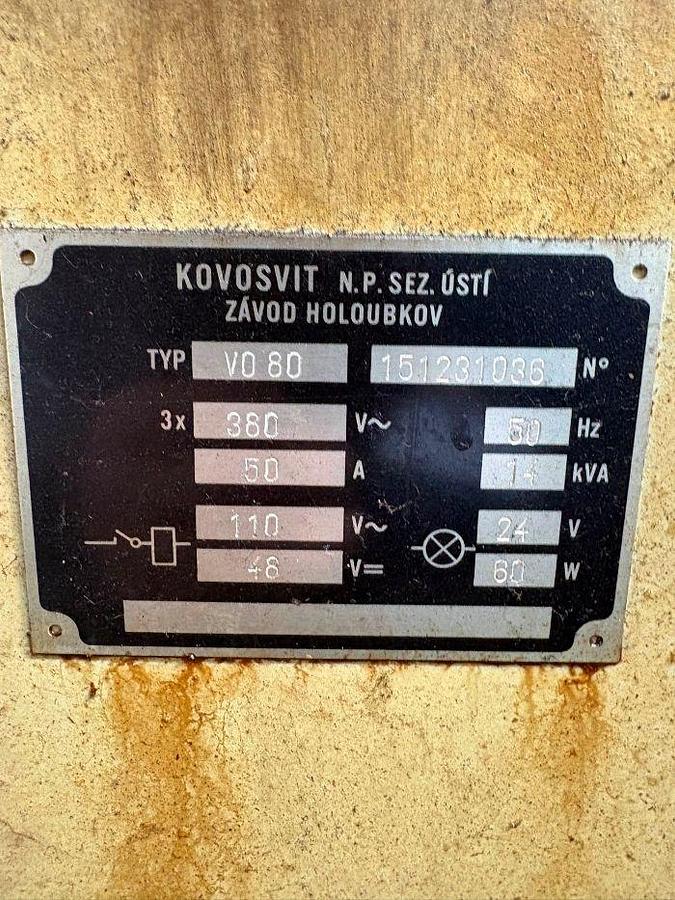

Input : 13.5 kVA,

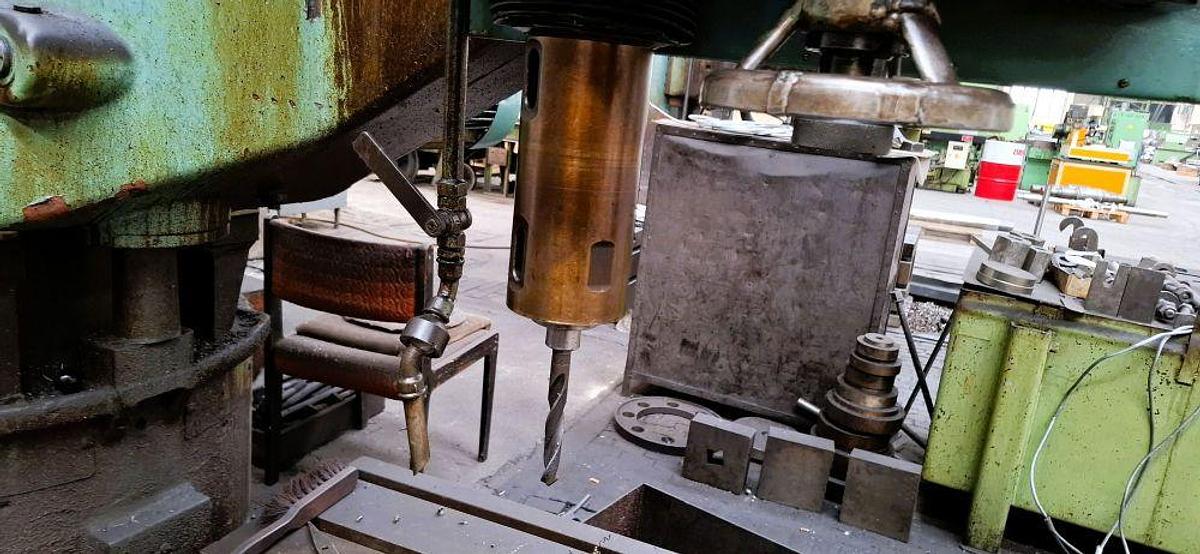

Spindle taper : Morse 6,

Spindle speeds : 30 speeds,

Spindle speed range : 9-1800 rpm,

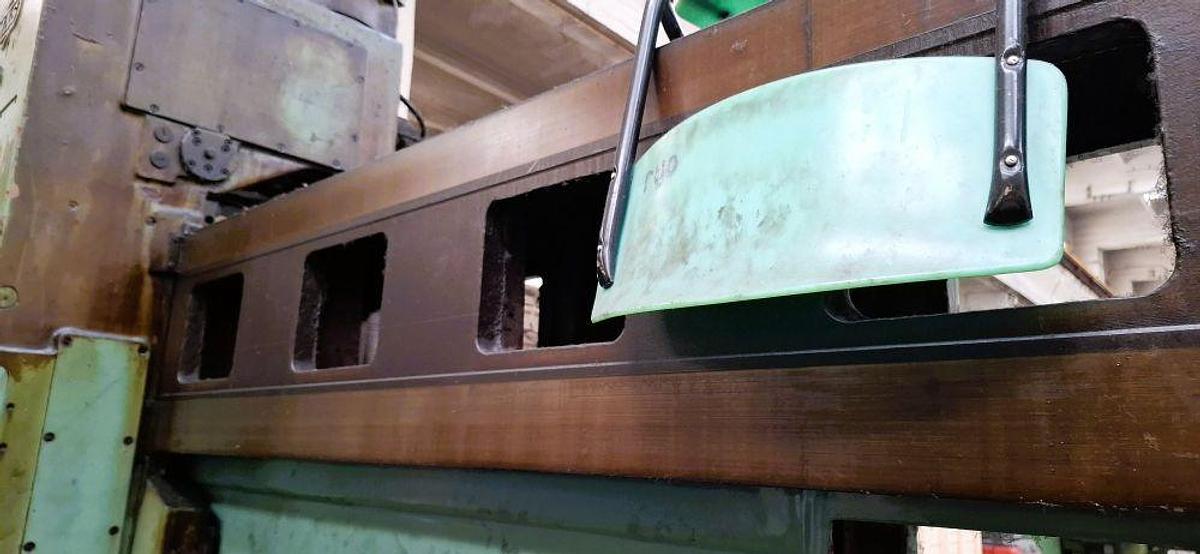

Drill head travel along the arm : 2015 mm,

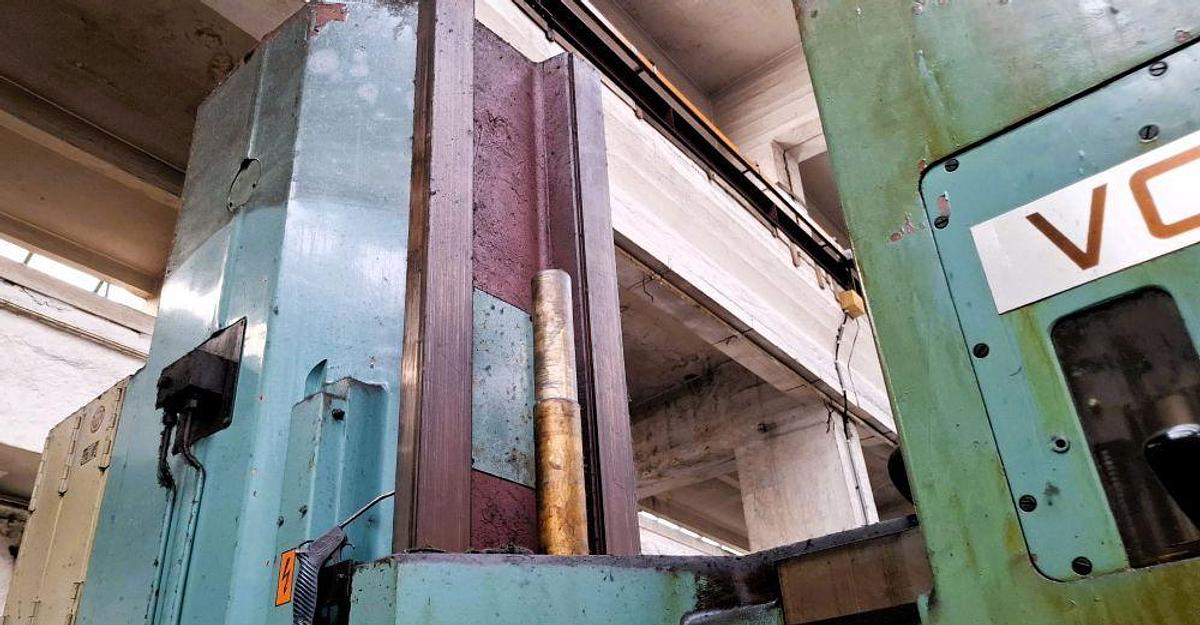

Vertical adjust. of the arm on the column : 1250 mm,

Max. distance from spindle axis to the column sleeve guide : 2515 mm,

Max. height of the machine : 3600 mm,

Total weight of the machine : approx. 12.1 tons.
