Sheet Stamping Line Mechanical 1000-500-400-400-600
Specifications
| Manufacturer | SIMPAC |
| Model | DE2P-1000 |
| Year | 2005 |
| Condition | Used |
| Stock Number | MA3571 |
| Item condition | Good working condition |
| Capacity tons | 1000 |
Description
Line (1000-500-400-400-600 Ton)

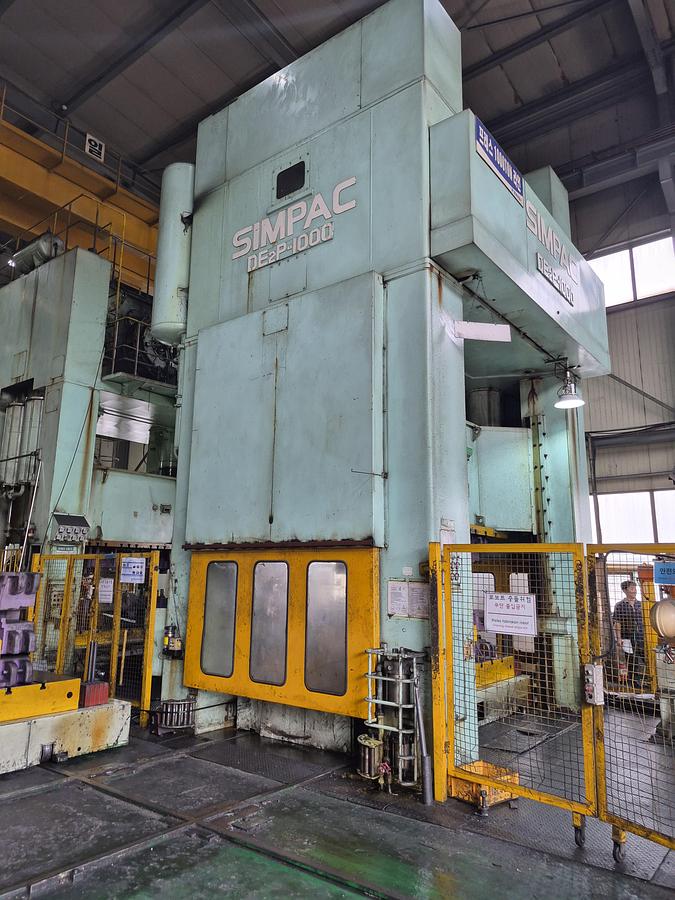

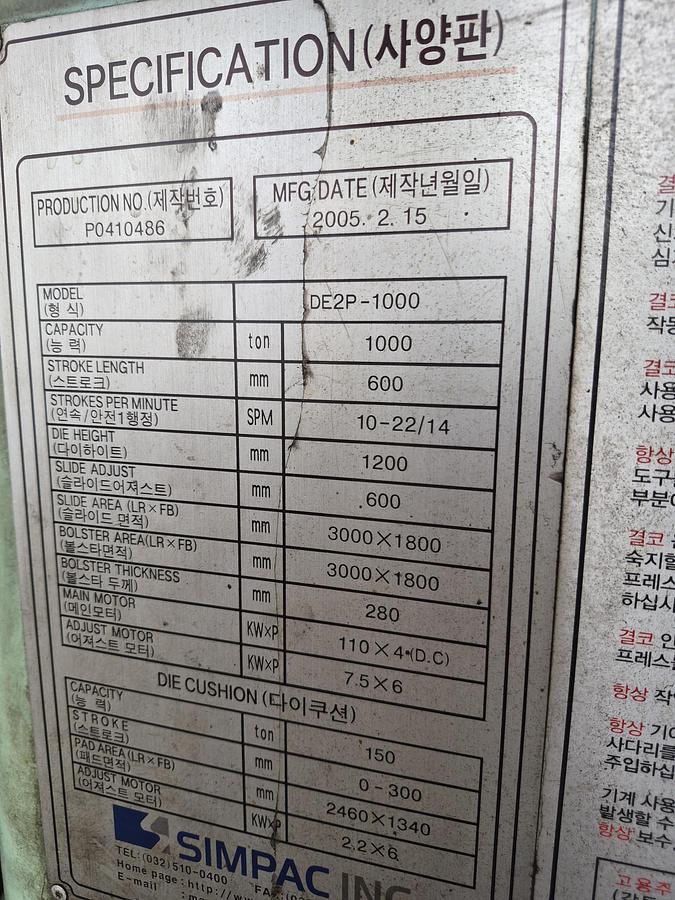

1. Capacity : 1000 tons,
Model : DE2P-1000,
Yom : 2005,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-22/14,
Slide adjustment : 600 mm,
Slide area : 3000 x 1800 mm,
Bolster area : 3000 x 1800 mm,
Bolster thickness : 280 mm,
Main motor : 110 x 4 (D.C) Kw x P,
Adjust motor : 7.5 x 6 Kw x P,
Die cushion
Capacity : 150 tons,
Stroke : 300 mm,
Pad area (LR x FB) : 2460 x 1340 mm,
Adjust motor : 2.2 x 6 KW x P.

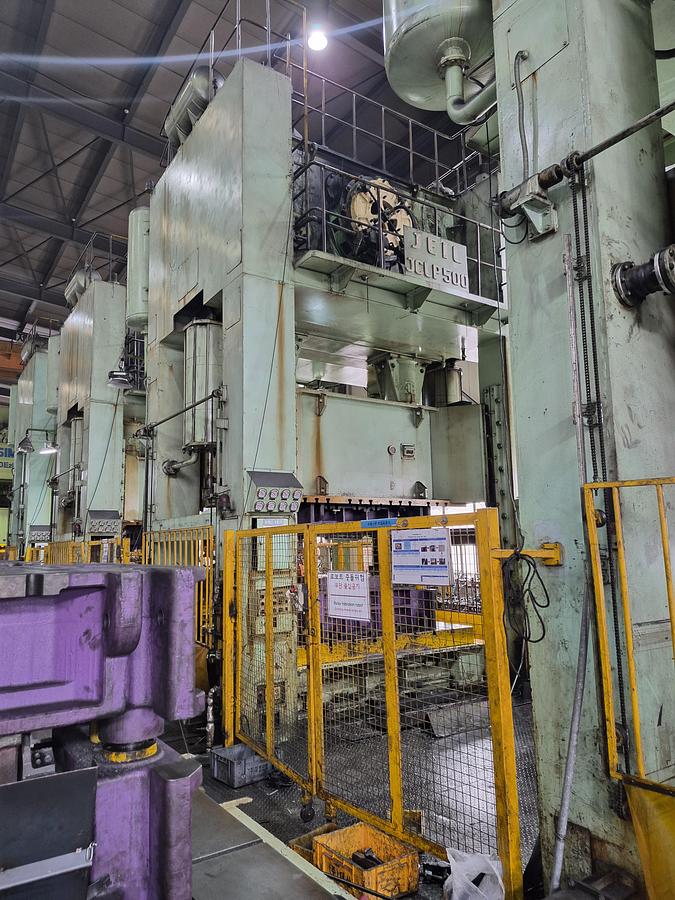

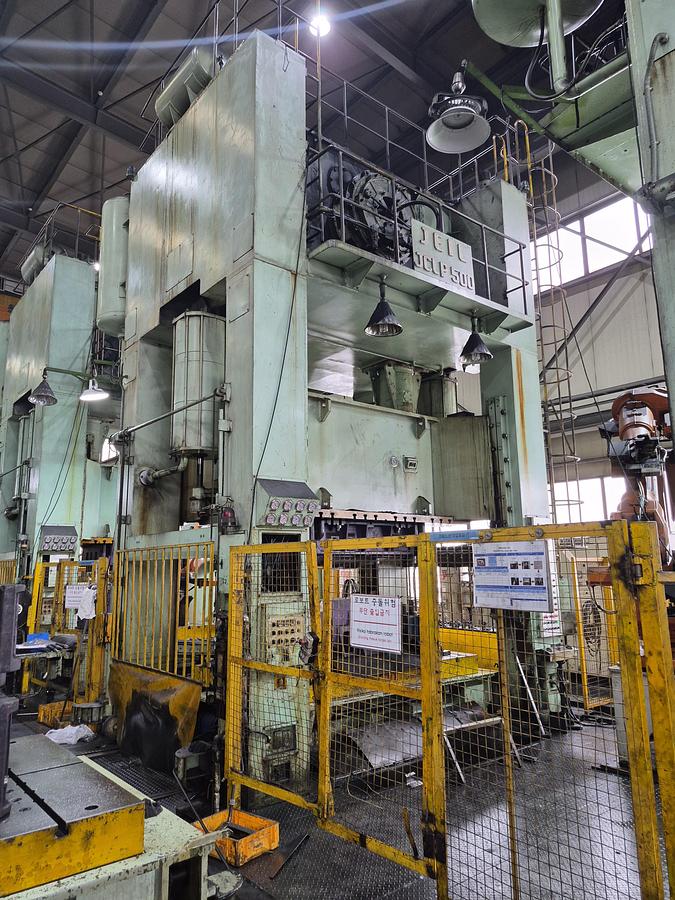

2. Capacity : 500 tons,
Make : Jeil,
Model : JCLP-500,
Yom : 1995,
Slide stroke : 900 mm,
Die height : 1200/600 mm,
No. of stroke (SPM) : 12-24,
Slide adjustment : 600 mm,
Air pressure : 5 kg/cm2,
U Slot (Bolt Slot) : Standard PIN + 160 mm,
Slide area : 3000 x 1200 x 100 mm,
Bolster area : 3000 x 1700 x 240 mm,
Main motor : 75 Kw x P,
Adjust motor : 3.7 x 6 Kw x P,
3. Capacity : 400 tons,
Make : Jeil,
Model : JCLP-400,
Yom : 1995,
Slide stroke : 900 mm,
Die height : 1200/600 mm,
No. of stroke (SPM) : 12-24,
Slide adjustment : 600 mm,
Air pressure : 5 kg/cm2,
U Slot (Bolt Slot) : Standard PIN + 160 mm,
Slide area : 3000 x 1700 x 100 mm,
Bolster area : 3000 x 1700 x 240 mm,
Main motor : 55 Kw x P,
Adjust motor : 3.7 x 6 Kw x P,
4. Capacity : 400 tons,
Make : Jeil,
Model : JCLP-400,
Yom : 1995,
Slide stroke : 900 mm,
Die height : 1200/600 mm,
No. of stroke (SPM) : 12-24,
Slide adjustment : 600 mm,
Air pressure : 5 kg/cm2,
U Slot (Bolt Slot) : Standard PIN + 160 mm,
Slide area : 3000 x 1700 x 100 mm,
Bolster area : 3000 x 1700 x 240 mm,
Main motor : 55 Kw x P,
Adjust motor : 3.7 x 6 Kw x P,
5. Capacity : 500 tons,
Make : Jeil,
Model : JCLP-4500,
Yom : 1995,
Slide stroke : 900 mm,
Die height : 1200/600 mm,
No. of stroke (SPM) : 12-24,
Slide adjustment : 600 mm,
Air pressure : 5 kg/cm2,
U Slot (Bolt Slot) : Standard PIN + 160 mm,
Slide area : 3000 x 1700 x 100 mm,
Bolster area : 3000 x 1700 x 240 mm,
Main motor : 95 Kw x P,
Adjust motor : 3.7 x 6 Kw x P,
Technical manuals available
Loading & Unloading by Automatic Process by ROBOT.
