6 tons Hammer Forging Pneumatic Huta MPM16000

Capacity : 6 tons,

Energy of blow : 175 kJ,

Max. stroke : 1000 mm,

Stroke per min : 80,

Min. die thickness : 400 mm,

Ram weight : 6.3 tons,

Upper die max. weight : 1.8 tons,

Length of die seat in the ram : 900 mm,

Length of die seat in the die holder : 1250 mm,

Cylinder bore : 850 mm,

Width : 4080 mm,

Height : 7580 mm,

Depth : 2400 mm,

Height above the floor : 5180 mm,

Anvil weight : 120 tons,

Total weight with anvil : 168 tons.

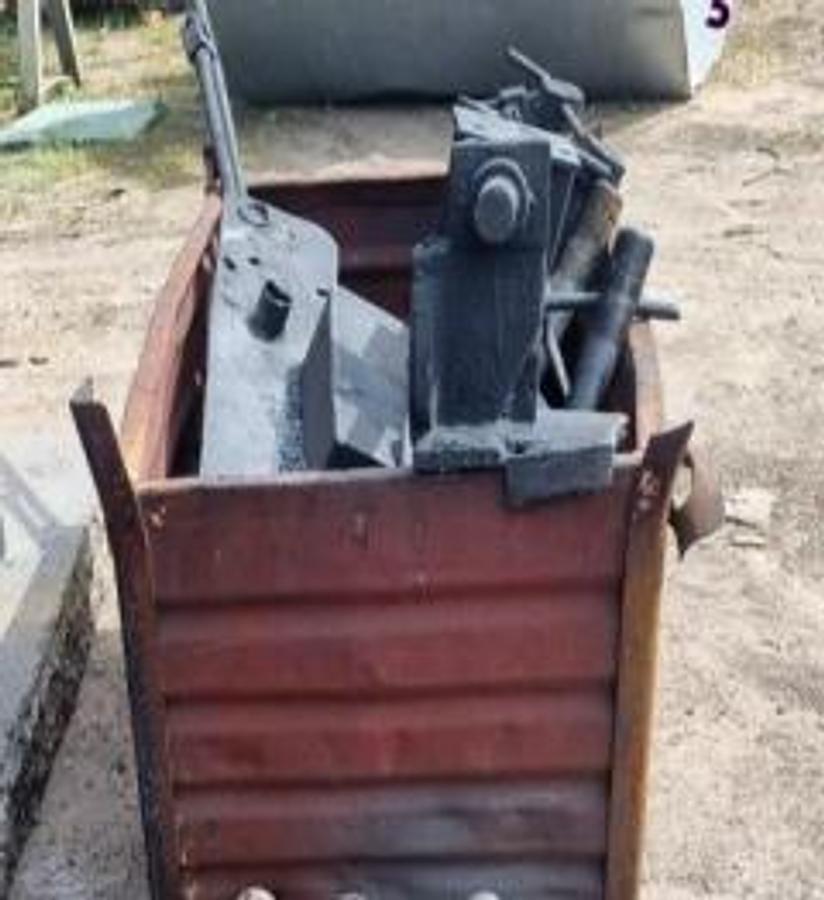

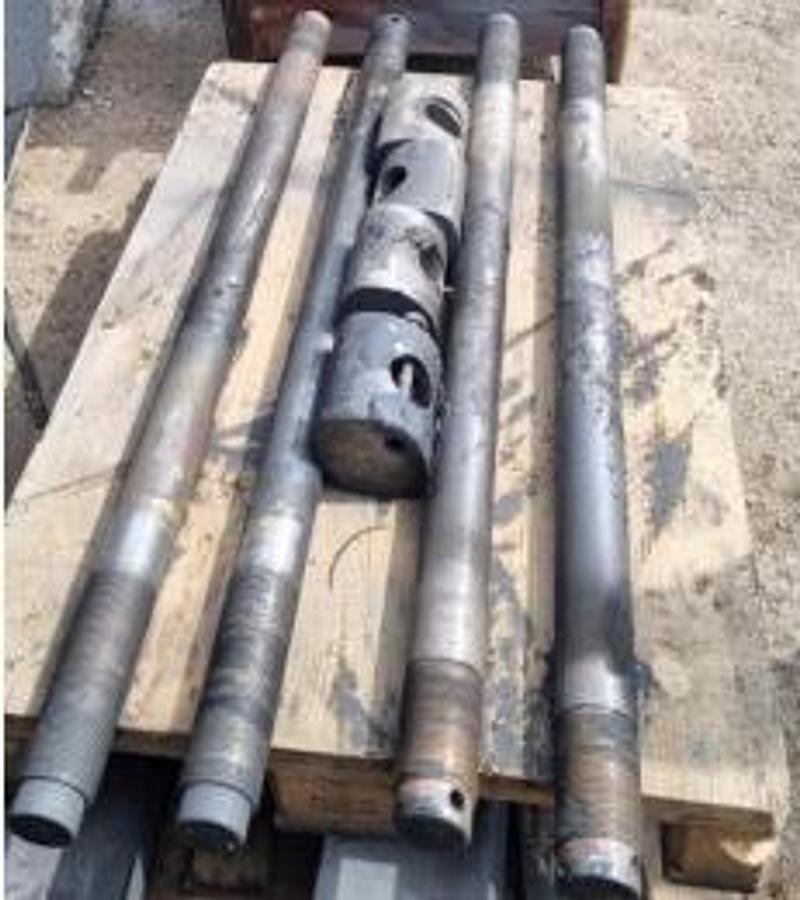

Available Spare Parts :

Ram – 1 pc.

Piston sleeve – 1 pc.

Ejector piston – 2 pcs.

Throat bronze bushing – 1 pc.

Guides – 2 pcs.

Shock absorbers – 2 pcs.

In 2023, the upper and lower guides, crown, anvil block, and side columns were machined.
