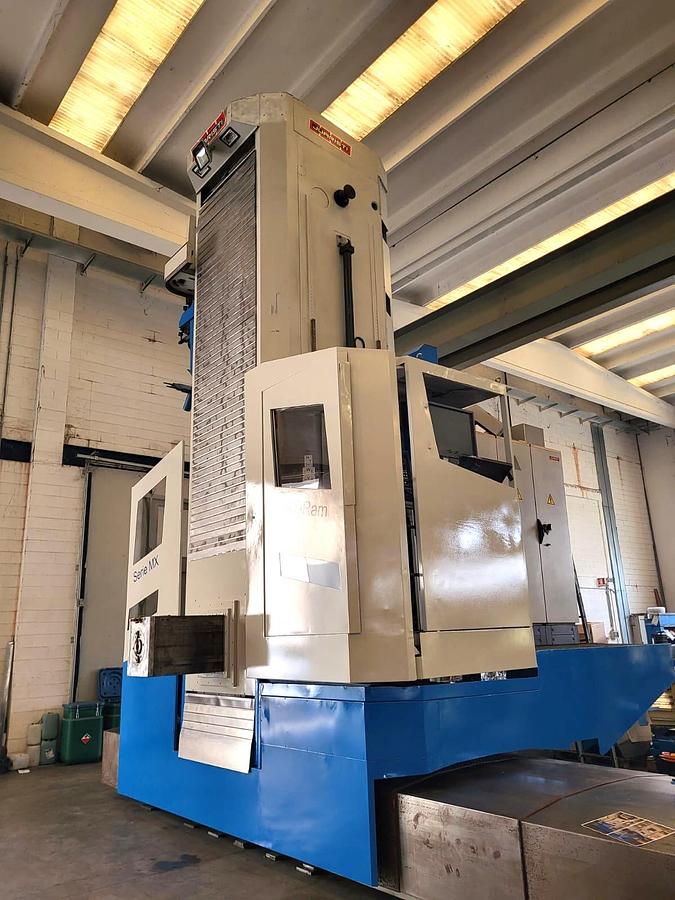

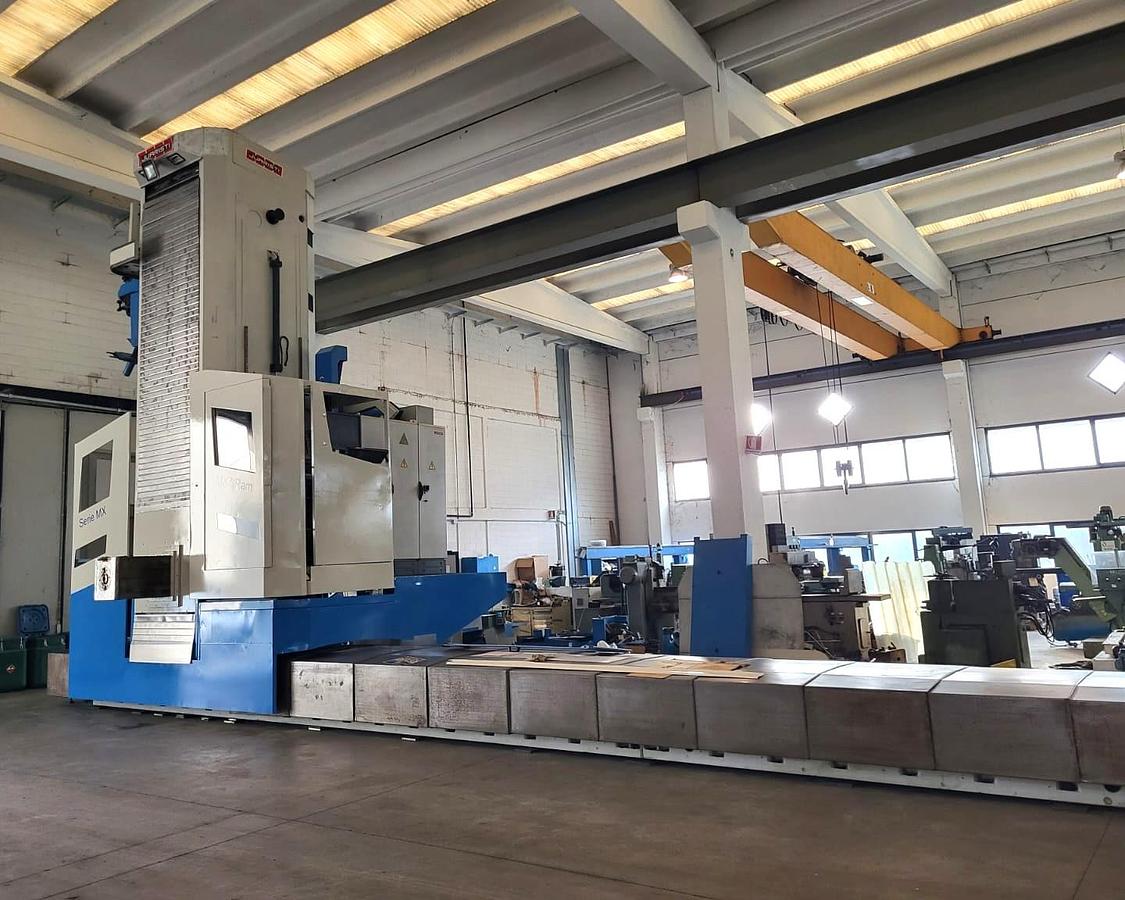

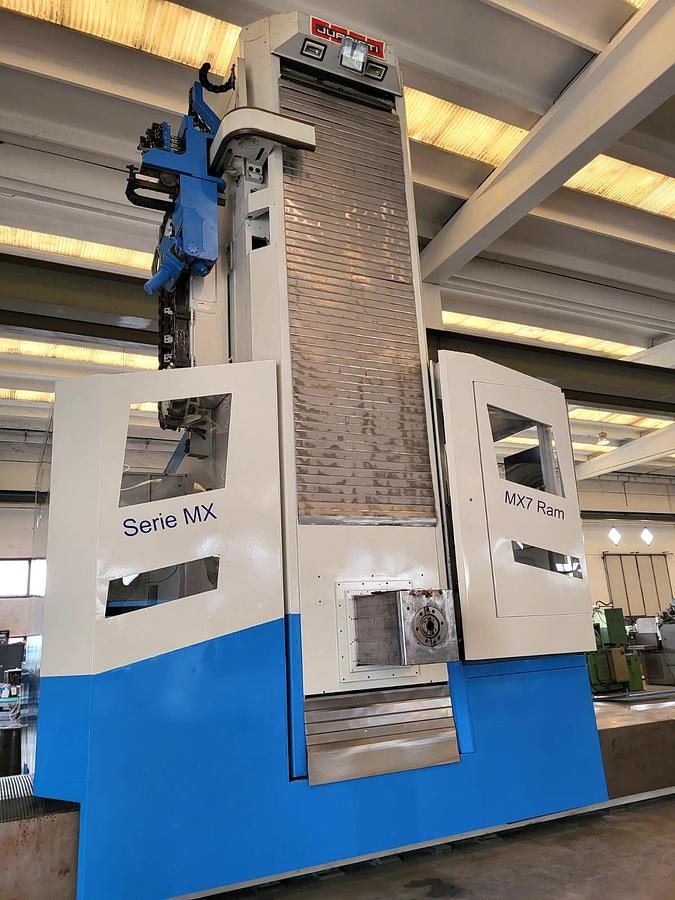

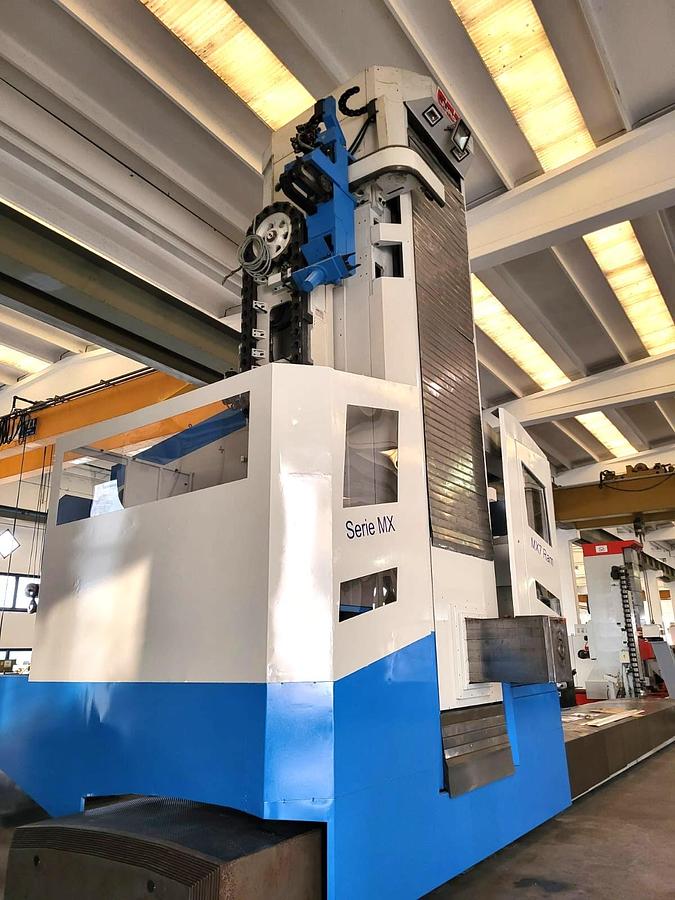

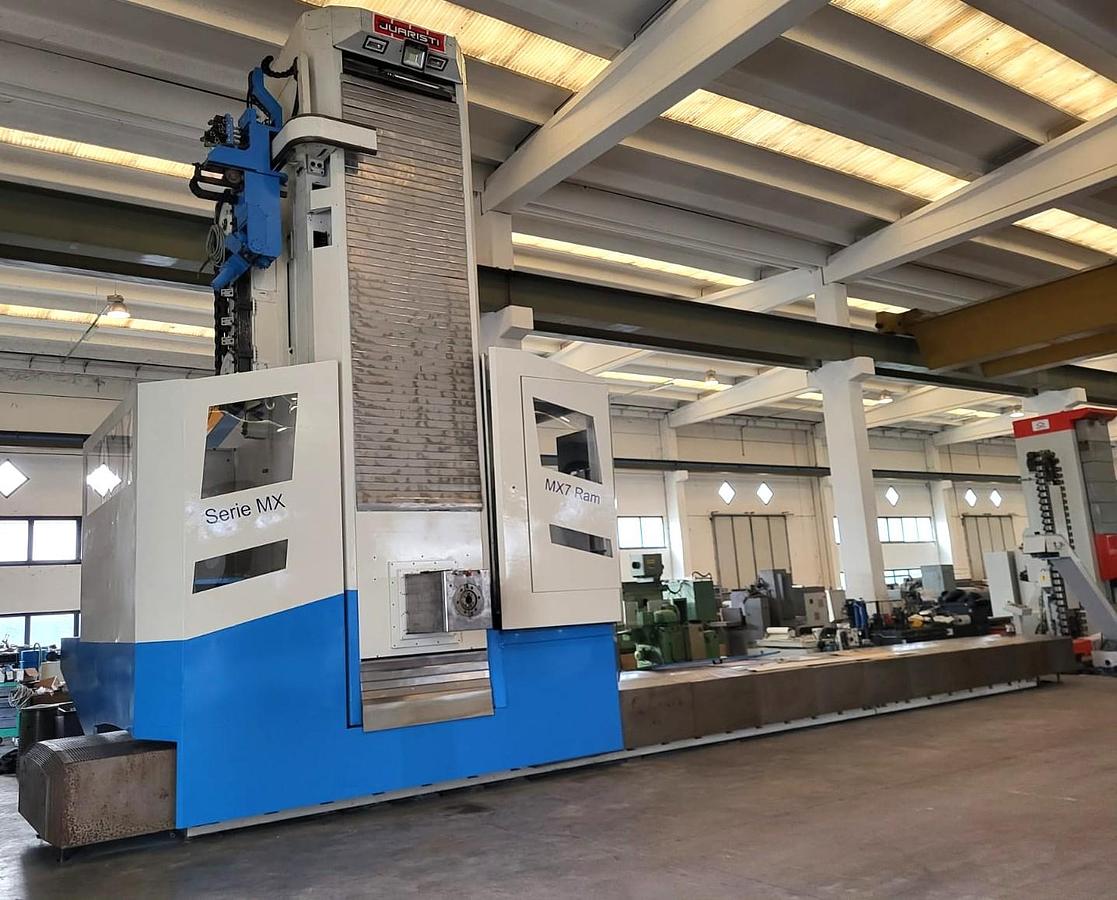

Borer Horizontal Floor Type CNC Juaristi MX7-RAM

Spindle diameter : 160 mm,

Table dimension : 2500 x 3500 mm,

X - axis travel : 10000 mm,

Y - axis travel : 4000 mm,

Z - axis travel (ram) : 1000 mm,

W - axis travel (spindle) : 800 mm,

Total z + w axis travel : 1800 mm,

Spindle speed : 3000 rpm,

Spindle motor power : 40 kw,

Spindle taper ISO 50 din 69871/1A,

Nr 02 speed range,

Ram dimensions : 460 x 520 mm,

Rapid feeding : 20000 mm/min,

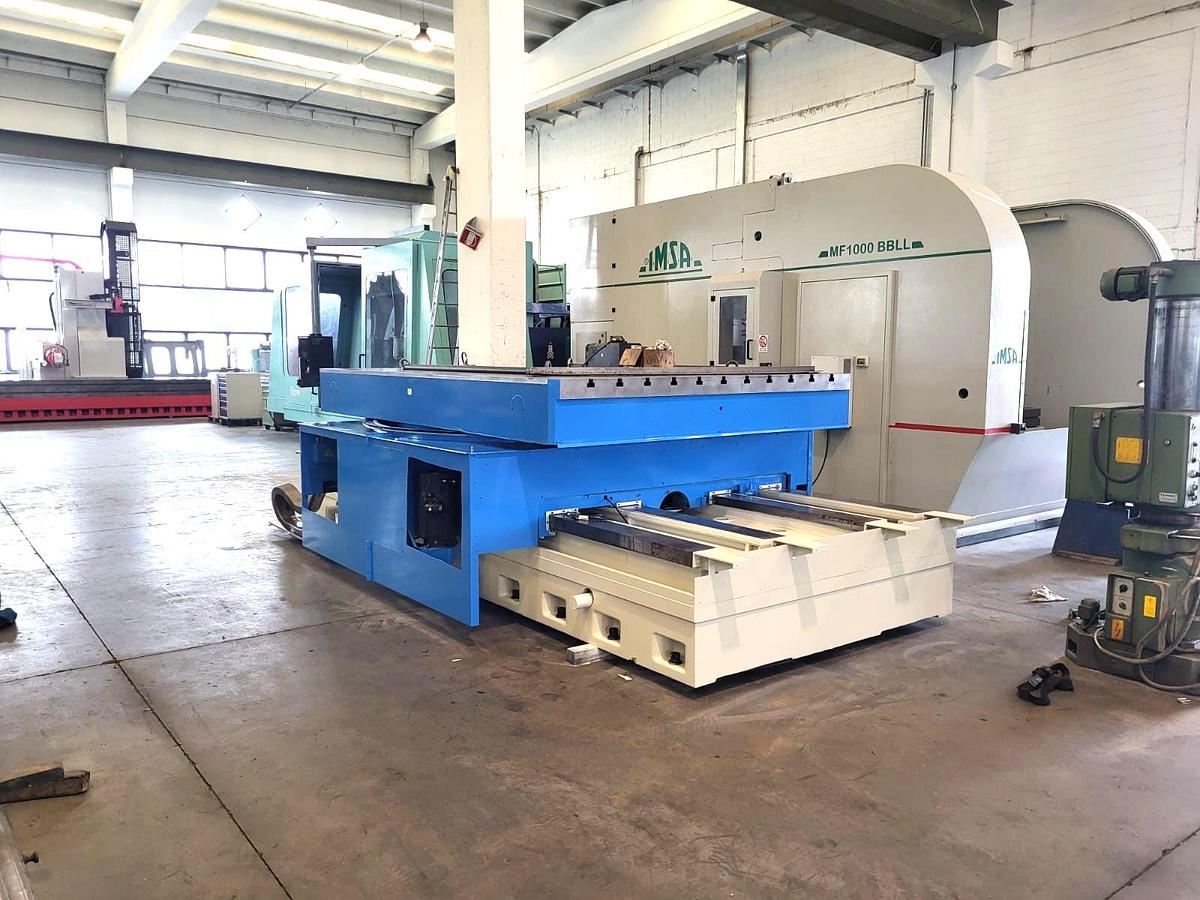

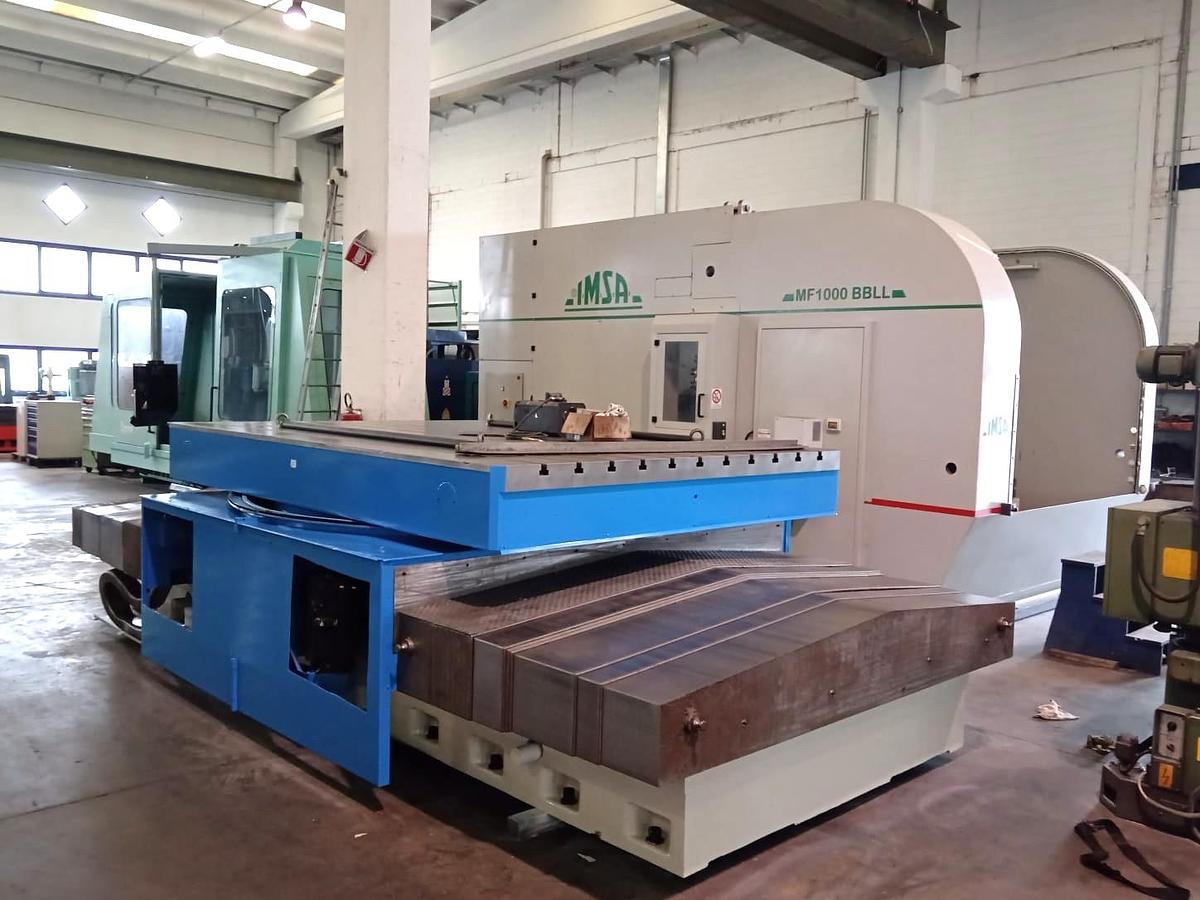

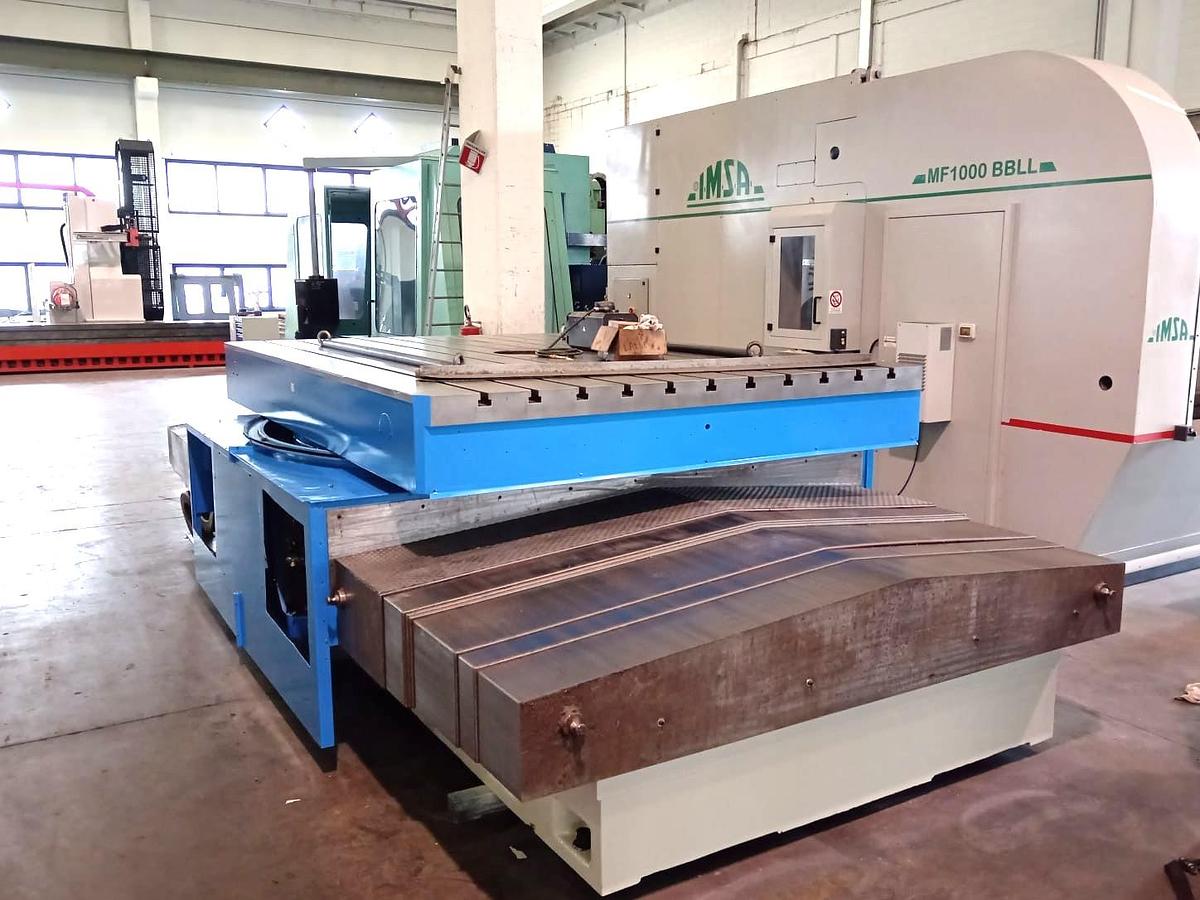

Infeeding rotary table model mg 50

Dimen. : 2500 x 3500 mm;,

Load capacity : 50 ton,

Stroke : 2000 mm,

Rotation 360000 positions 0,001°

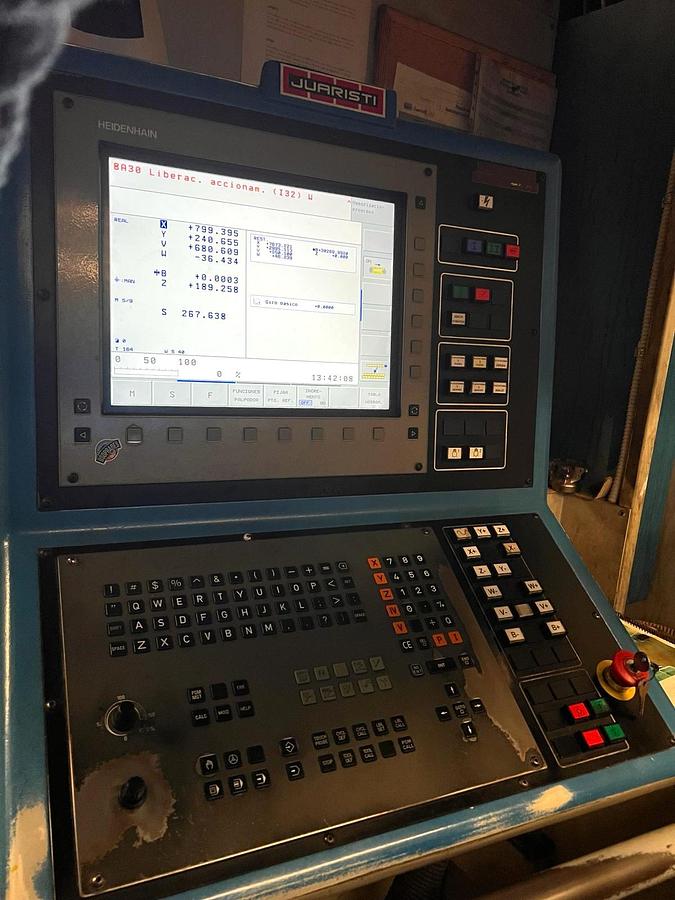

CNCHEIDENHAIN iTNC 530.

Standard equipment :

Heidenhain itnc 530 CNC

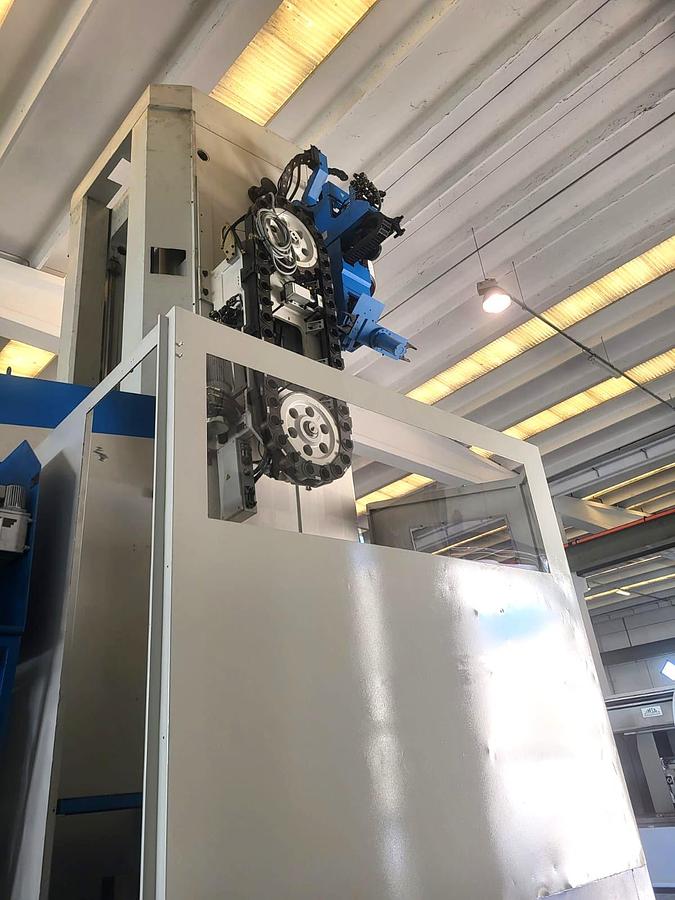

Tool changer 40 places

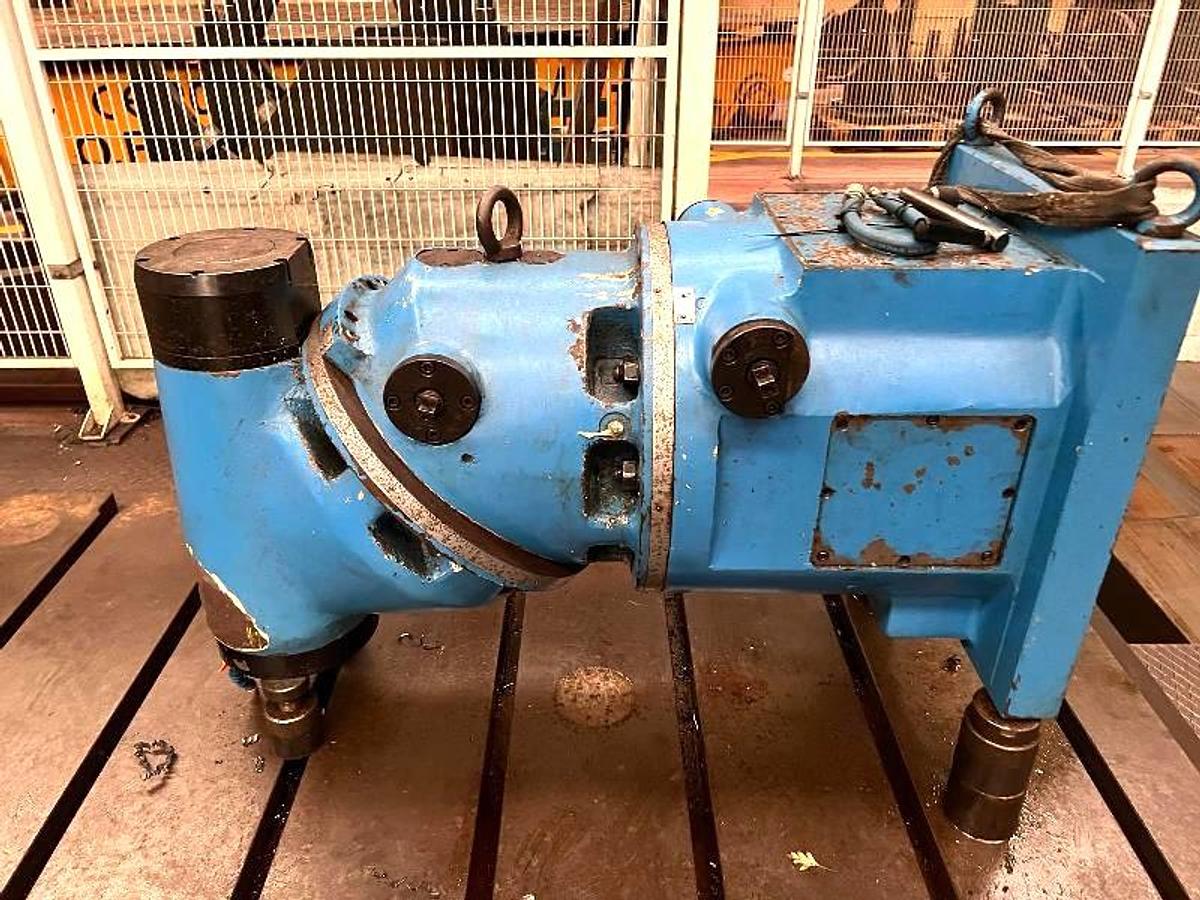

Manual universal head

Anchor plate 6000 x 2000 x 300 mm

External refrigeration

Total installed power 110 kva.
