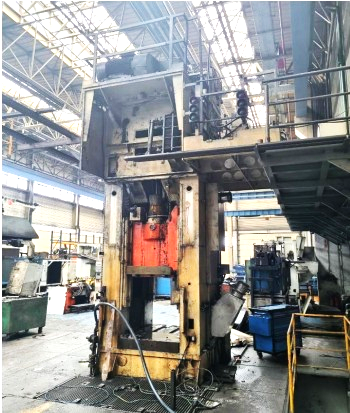

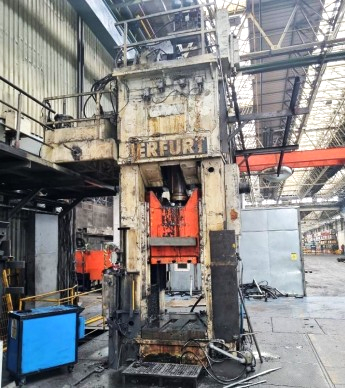

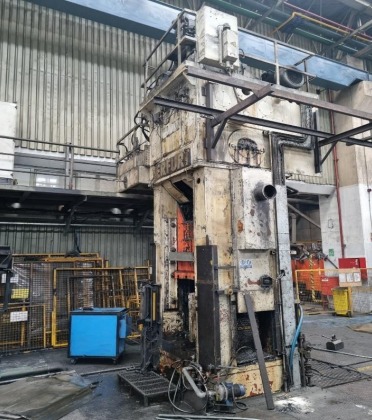

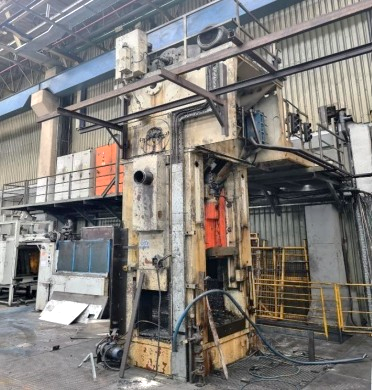

500 tons Press Trimming WMW Erfurt PE-1-U-500

Capacity : 500 tons,

Stroke : 400 mm,

Stroke per minute (SPM) : 12,

Distance between columns : 1000 mm,

Shut height : 850 mm,

Ram adjustment : 220 mm,

Table size : 1000 x 1400 mm,

Ram size : 800 x 1120 mm,

Ejector :

Capacity : 10 tons,

Stroke : 150 mm,

Clutch oil seals – 4 pcs.

Clutch lining gears – 20 pcs.

Clutch friction discs – 24 pcs.

Brake and clutch springs – 1 set each

Front flywheel bearing – 1 pc.

Rear flywheel bearing – 1 pc.

Connecting rod bronze bushings – 2 pcs.

Main bearing bronze bushings – 2 pcs.

Rear shaft bearings – 2 pcs

The power/control cabinet and operator panel have been completely renewed with Siemens components.
