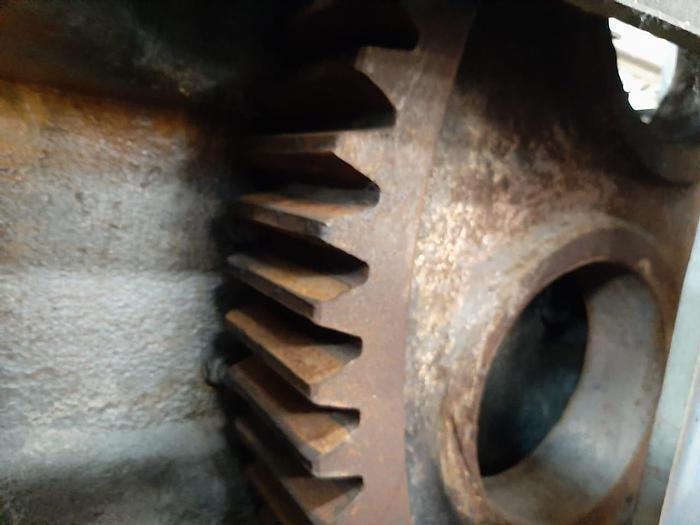

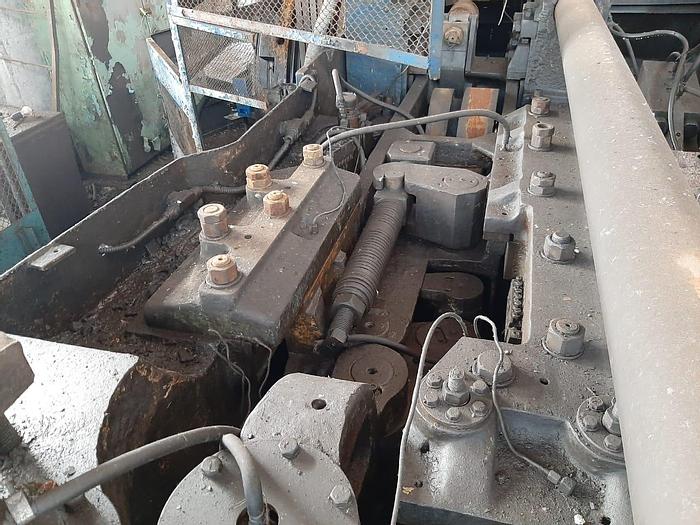

Upsetter B1139A

4"

Capacity : 800 tons

Movable die stroke : 180 mm,

Max. upsetting ram stroke : 380 mm,

Upsetting ram works stroke : 250 mm,

Upsetting ram return stroke with close die : 130 mm,

Distance between upsetting ram and dies :

Stroke forward : 140 mm,

Ram stroke per min : 35,

Die dimension : 590 x 220 x 660 mm,

Main drive motor power : 40 kW,

Overall dimension :

Floor space : 6300 x 3900 mm,

Height above floor level : 2850 mm,

Weight : approx. 81 tons.
