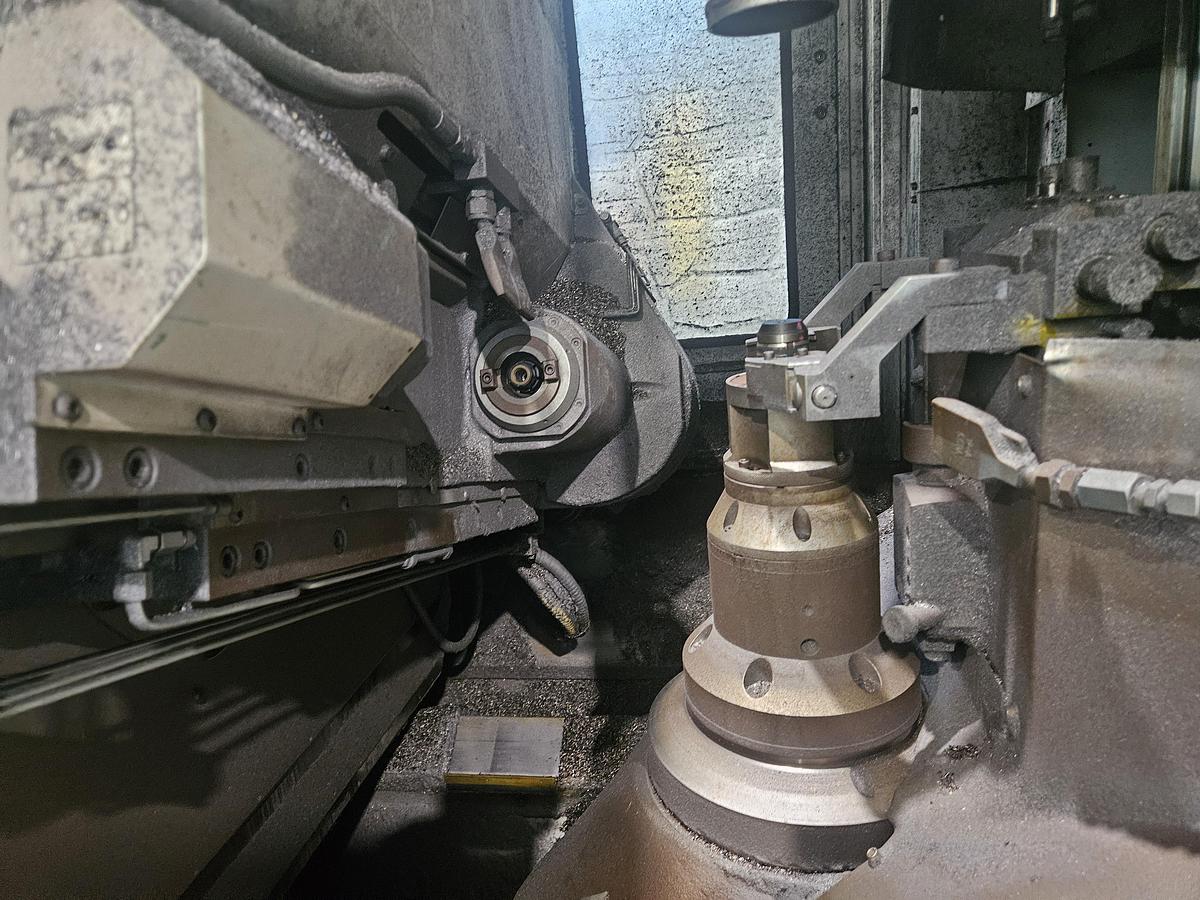

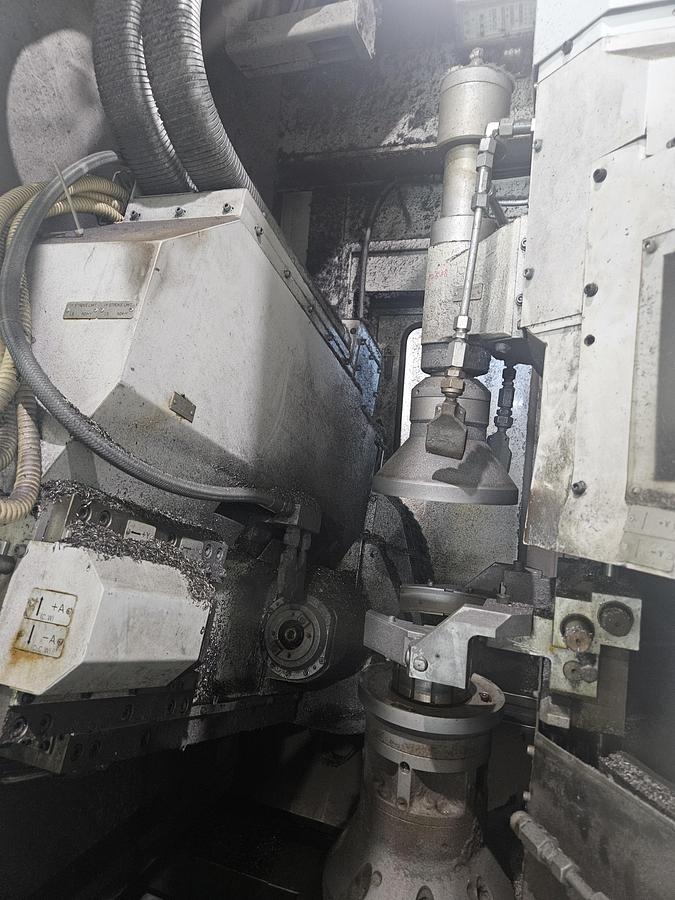

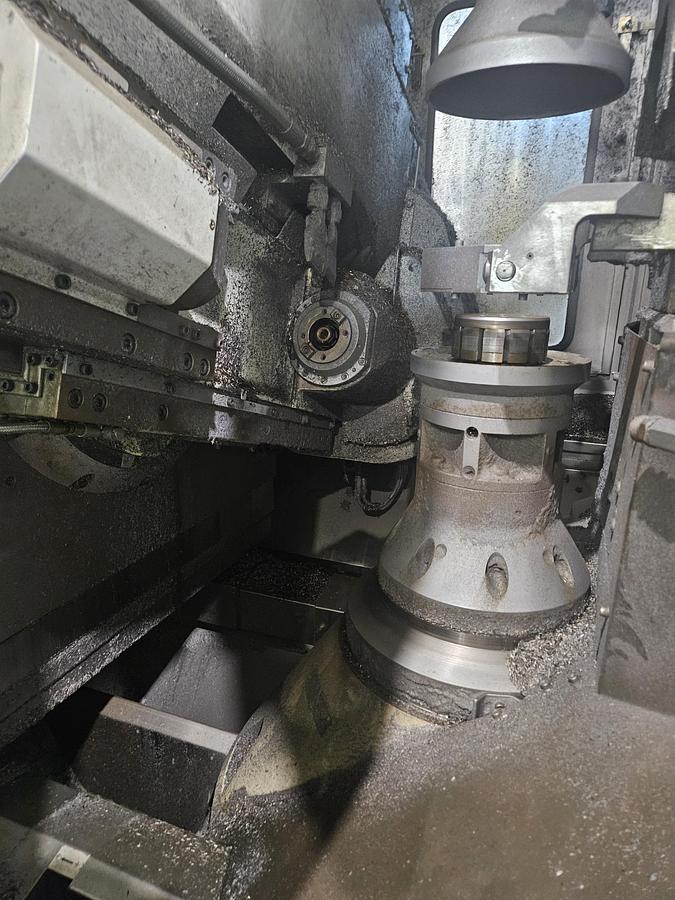

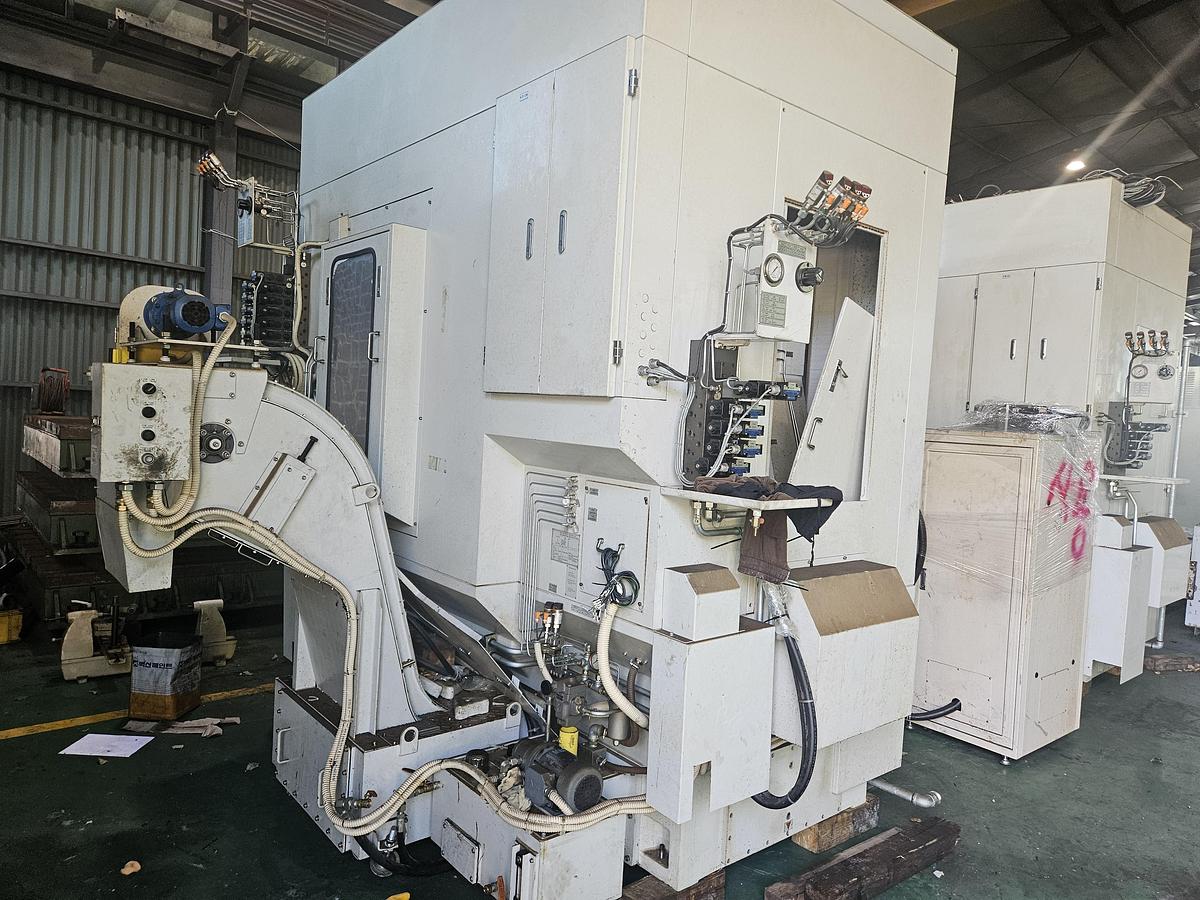

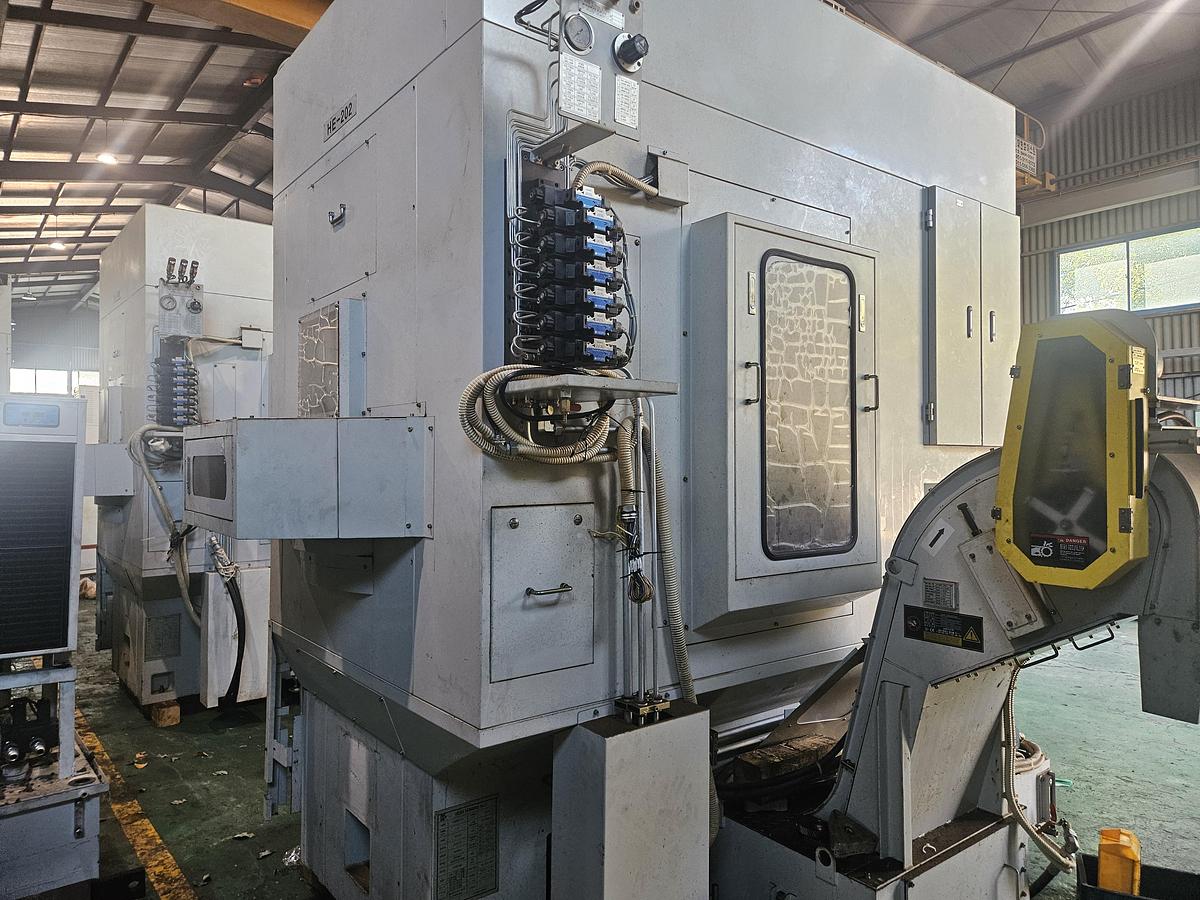

Gear Hobbing Machine CNC Hyundai HE-201LM
Specifications
| Manufacturer | Hyundai |
| Model | HE-201LM |
| Year | 2016 |
| Condition | Used |
| Stock Number | MA3593 |

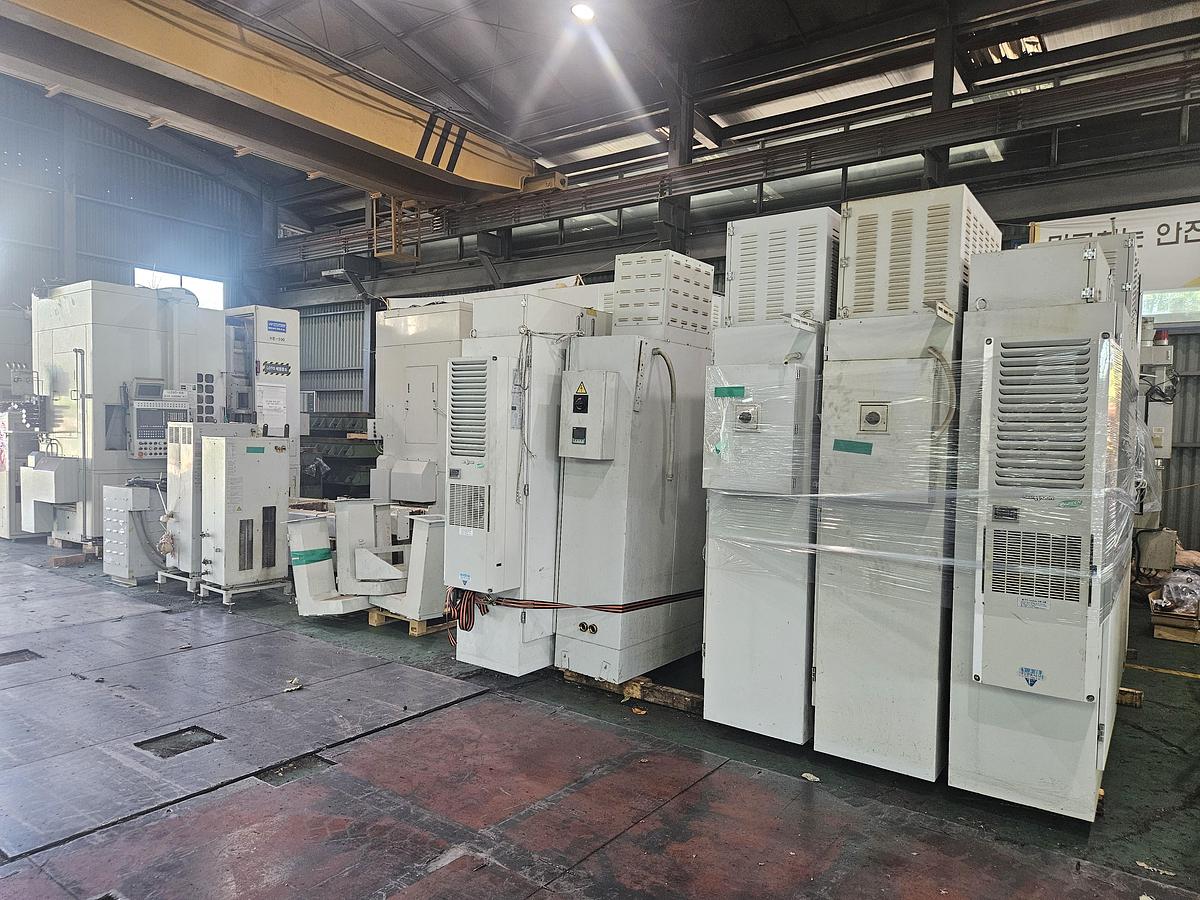

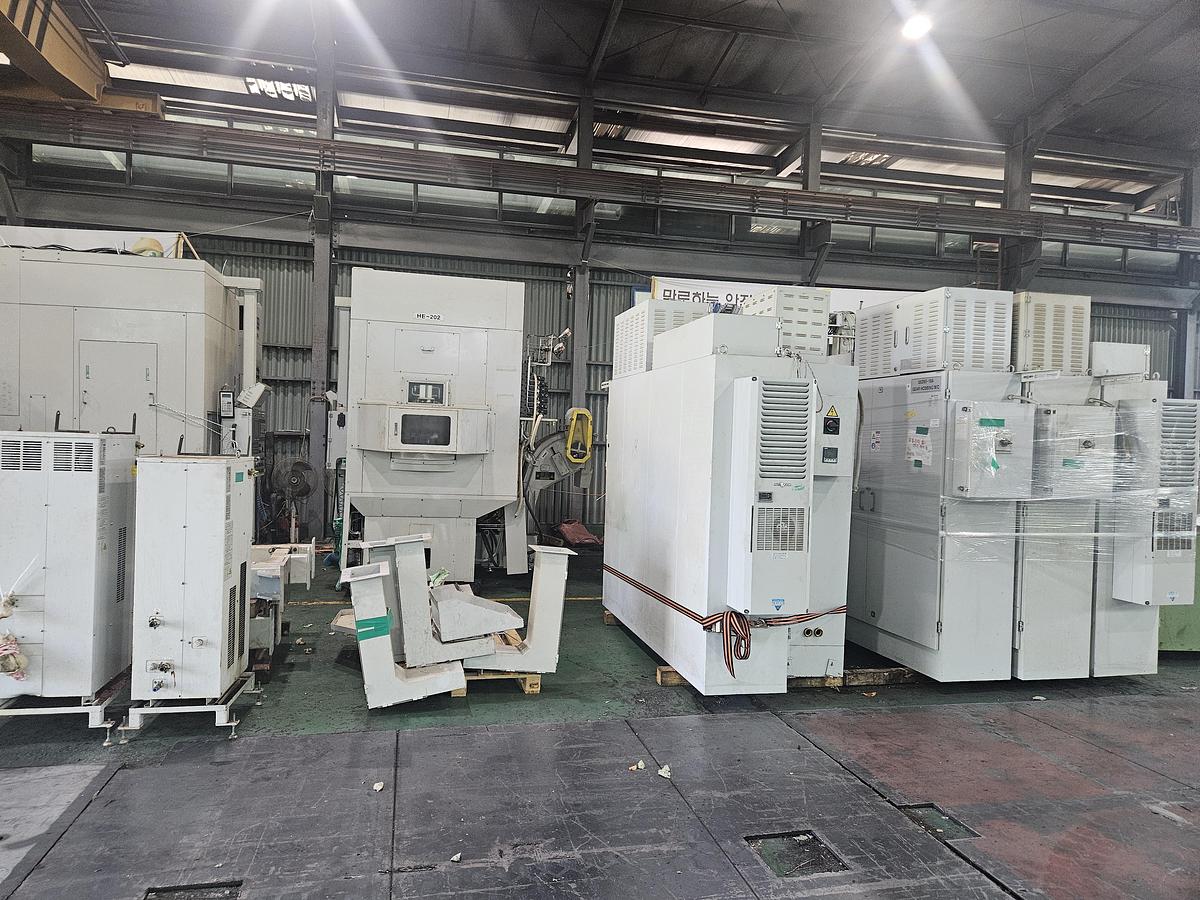

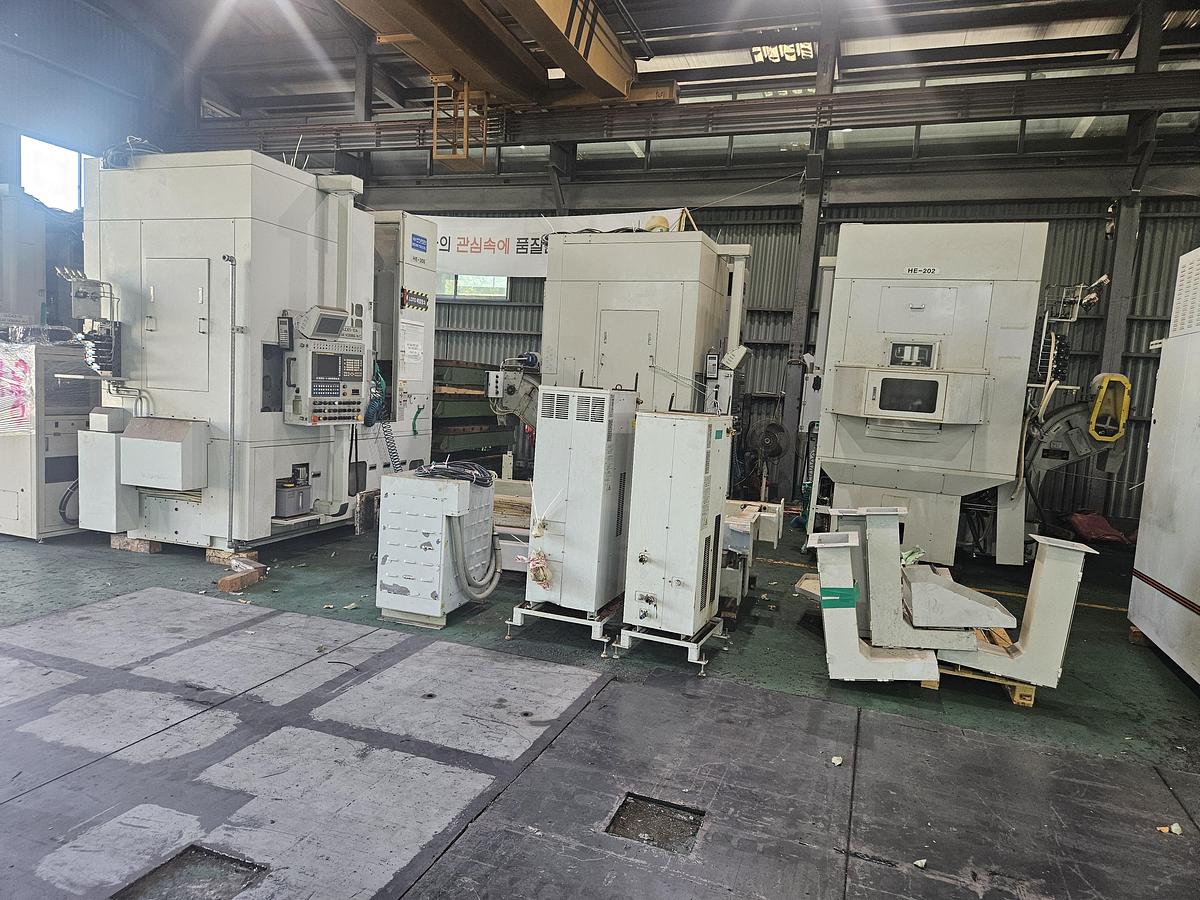

| Item condition | Dismantled & stored at Warehouse |
Description
Package Deal (Total 4 sets)
Manufacturer : Hyundai Motor Co. Ltd.
a) Model : HE-201LM (Workpiece Dia : 200 mm, Modul 8) - 3 Sets,
b) Model : HE-300 (Workpiece Dia : 300 mm, Modul 8) - 1 Set.

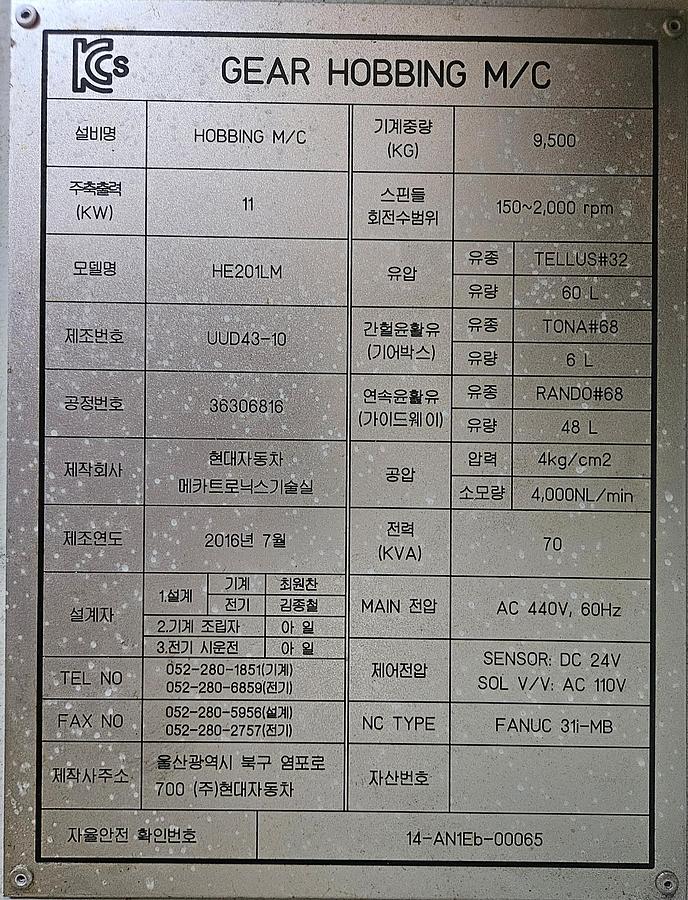

a) Model : HE201LM
Workpiece Dia : 200 mm,
Modul : 8
Spindle Power : 11 kW,
Spindle rotation speed range : 150-2000 rpm,
Hydraulics : Type - TELUS #32, Flux - 60 L,
Intermittent Lubrication (Gearbox) : Type - TONS#68, Flux - 6 L,
Continuous Lubricating Oil (Guideway) : Type - RANDO#68, Flux - 48 L,
Pneumatic : Enter - 4 kg/cm2, Consumption : 4000 NL/min.,
Power (LVA) : 70,
Main voltage : AC 440V, 60 Hz,
Control voltage : Sensor : DC 24 V, SOL V/V : AC 110 V,

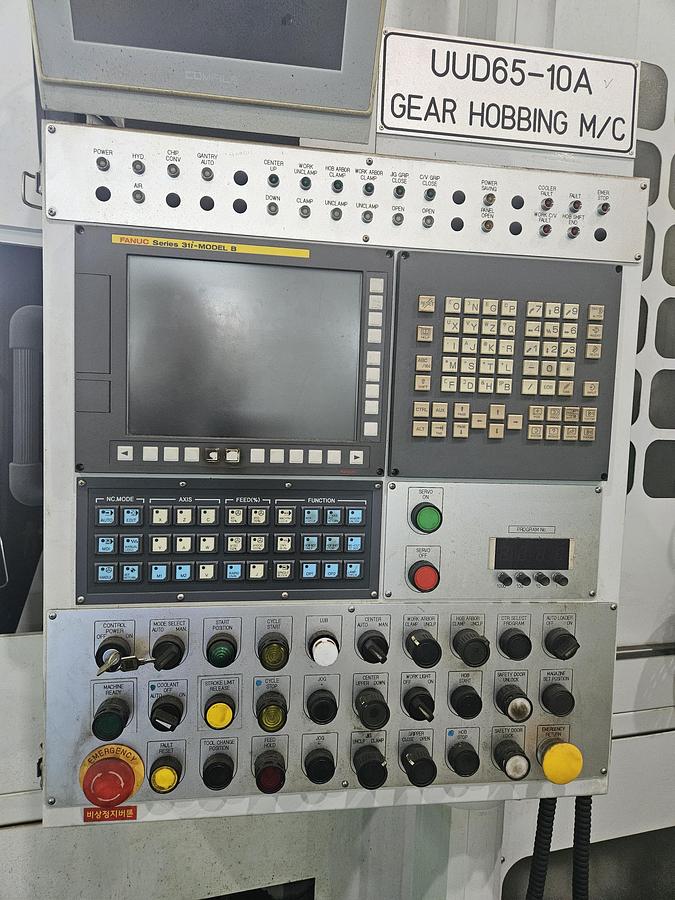

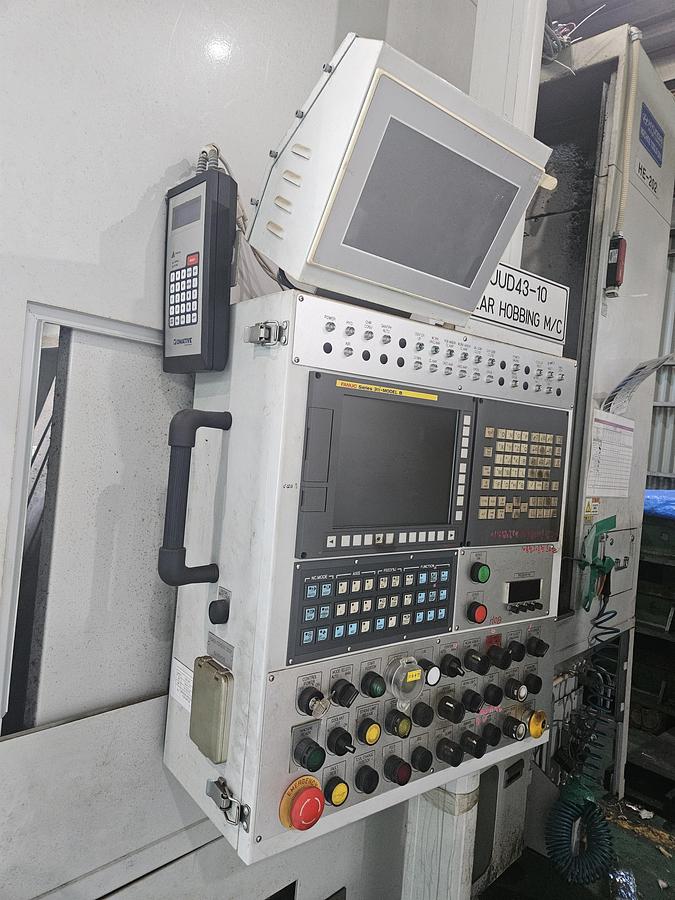

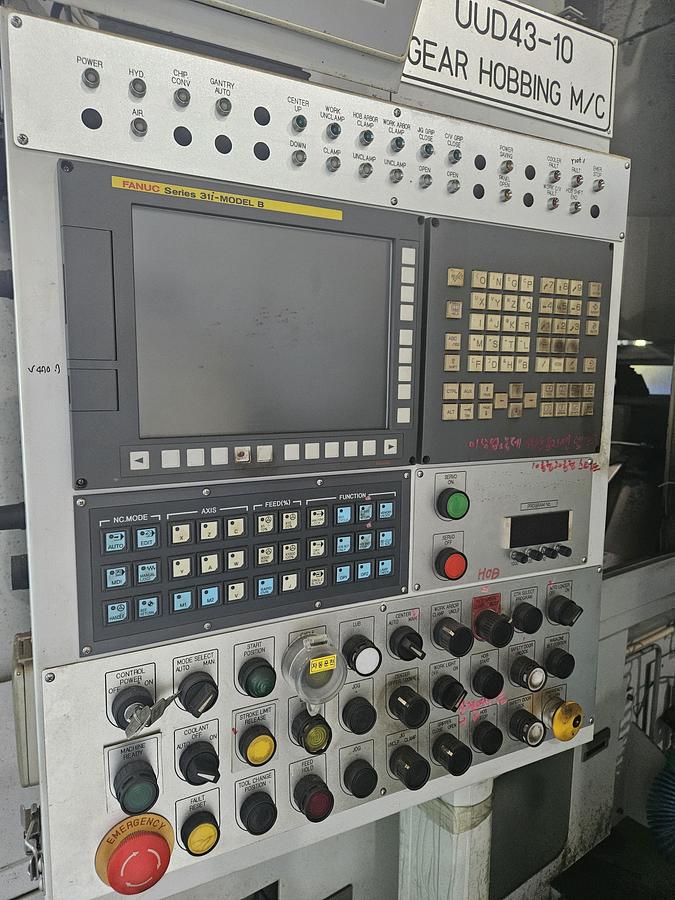

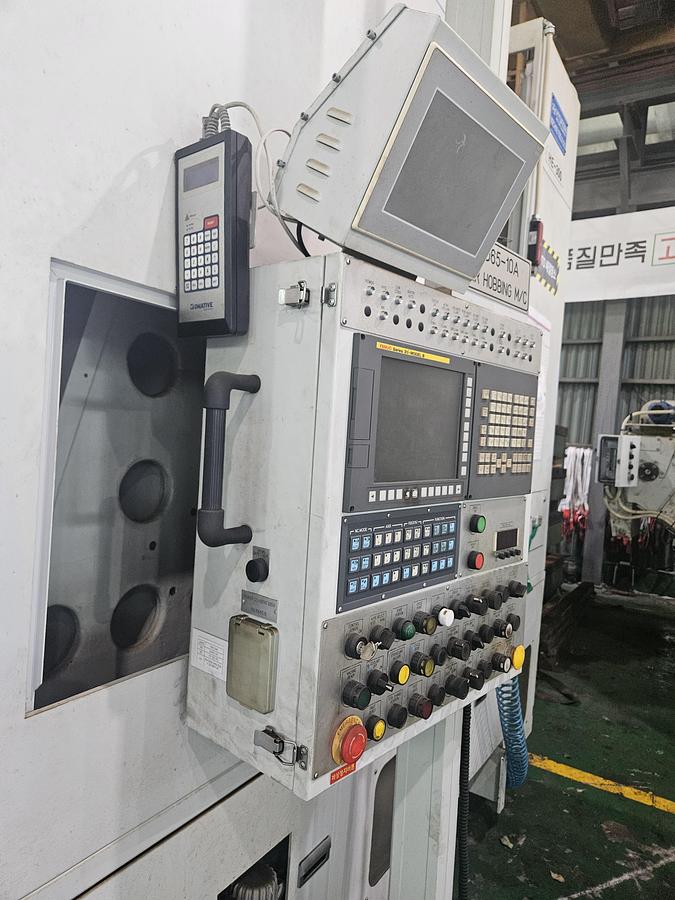

NC type : FANUC 31i-MB
Machine weight : 9500 kg.
Qty : 3 sets

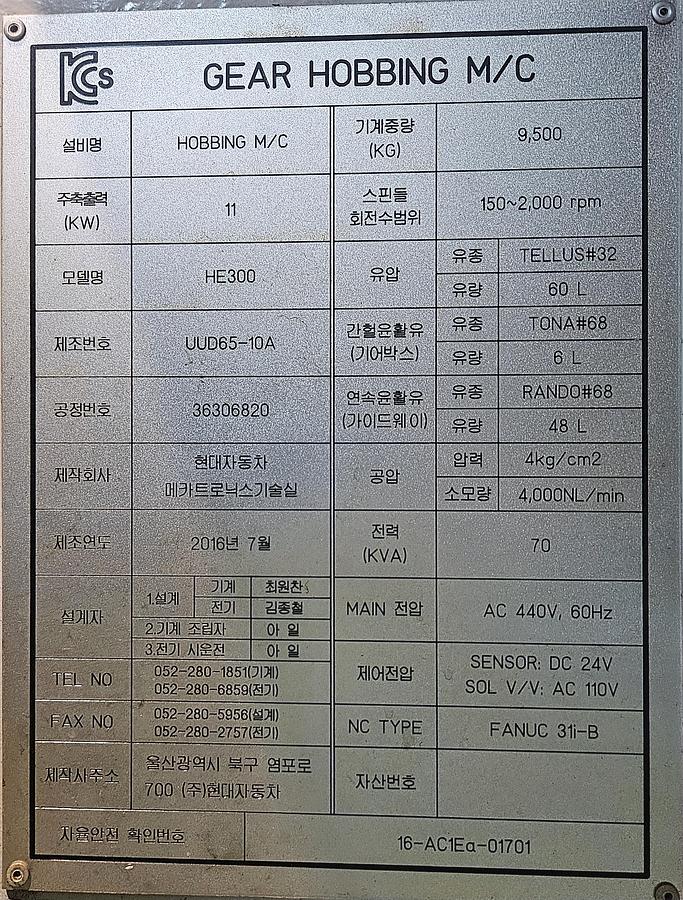

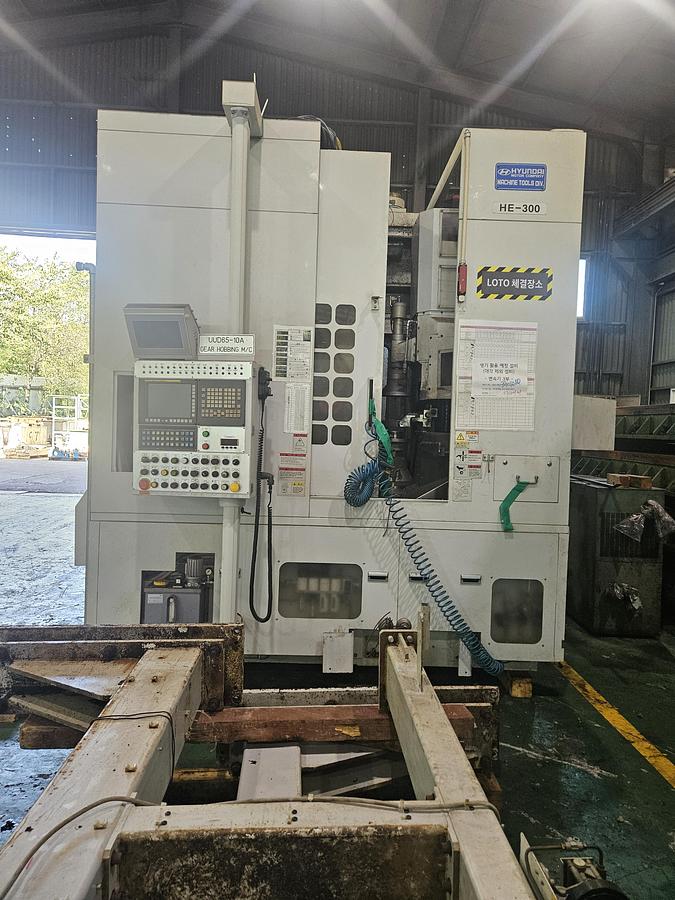

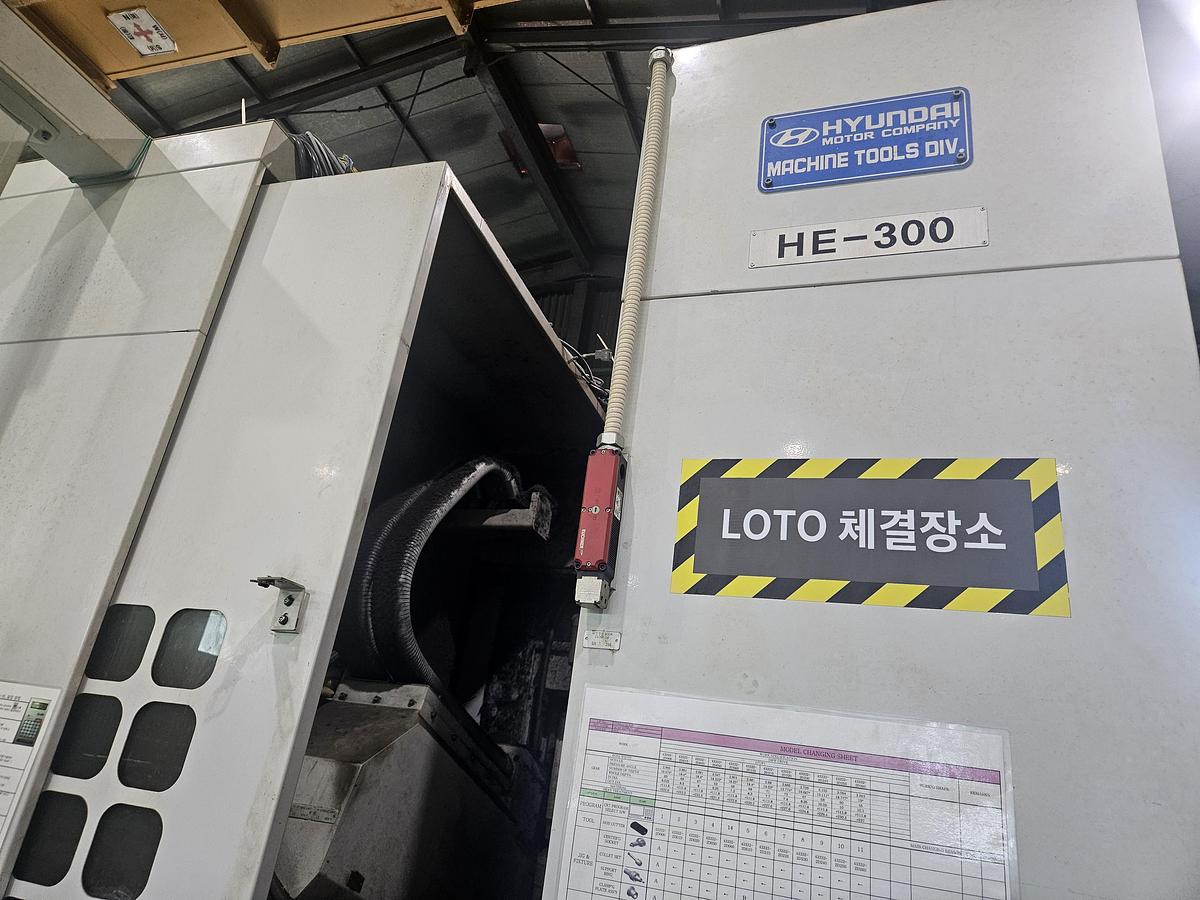

b) Model : HE-300
Workpiece Dia : 300 mm,
Modul : 8
Spindle Power : 11 kW,
Spindle rotation speed range : 150-2000 rpm,
Hydraulics : Type - TELUS #32, Flux - 60 L,
Intermittent Lubrication (Gearbox) : Type - HIS#68, Flux - 6 L,
Continuous Lubricating Oil (Guideway) : Type - RANDO#68, Flux - 48 L,
Pneumatic : Enter - 4 kg/cm2, Consumption : 4000 NL/min.,
Power (LVA) : 70,
Main voltage : AC 440V, 60 Hz,
Control voltage : Sensor : DC 24 V, SOL V/V : AC 110 V,
NC type : FANUC 31i-B
Machine weight : 9500 kg.
Qty : 1 set
