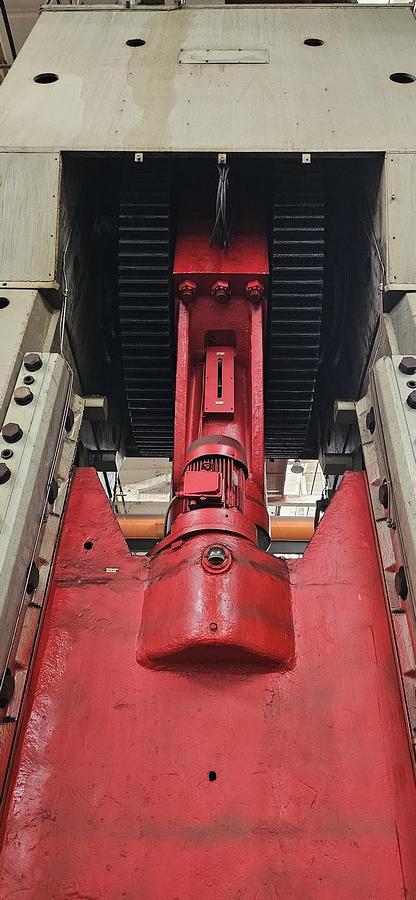

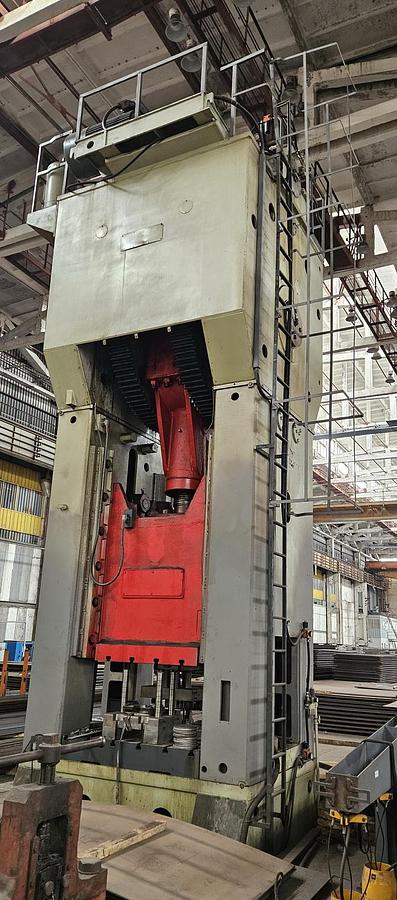

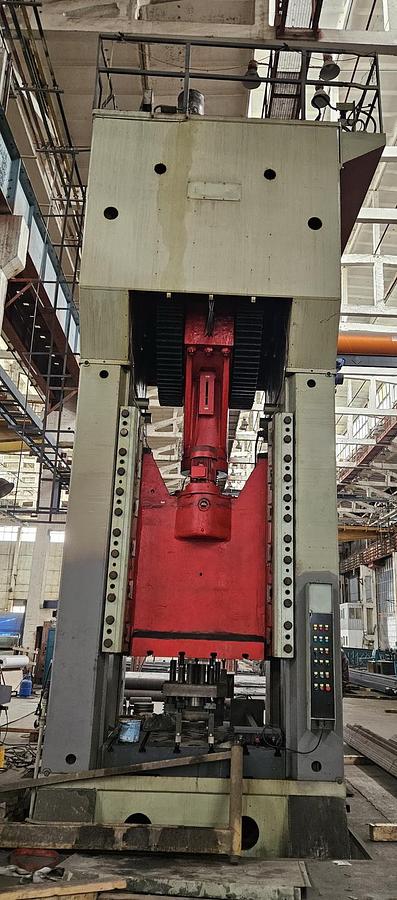

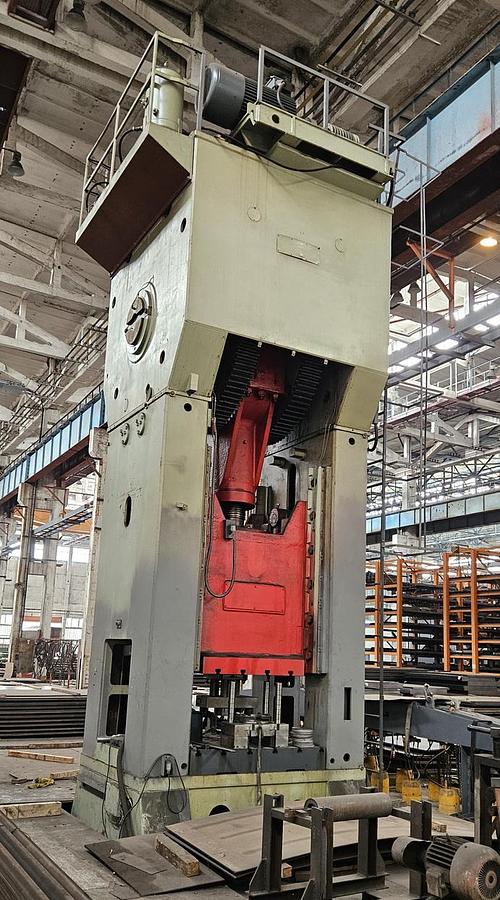

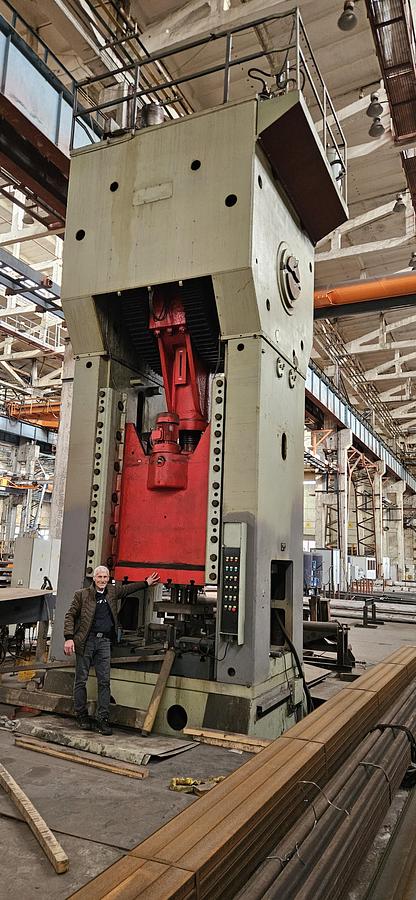

1250 tons Press Trimming WMW Erfurt, Germany PKZE1250

Capacity : 1250 tons,

Slide stroke : 500 mm,

Slide adjustment : 215 mm,

Maximum shut height between bolster plate and slide (stroke down, adjustment up) : 860 mm,

Bed area : 1600 x 1850 mm,

Slide area : 1300 x 1400 mm,

Opening in the bed : 1100 x 1100 mm,

Main motor rating : 90 kW at 1478 RPM,

Ram adjusting motor rate : 7.5 kW at 1450 RPM,

Number of single strokes : 8 min^-1,

Cushion capacity : 200 ton force,

Cushion stroke : 200 mm,

Height above floor : 7900 mm,

Press weight : 130 tons.

Superb working condition, after full, professional overhaul. After the retrofit, the press was tested and after newer used.

It can be inspected under power.
