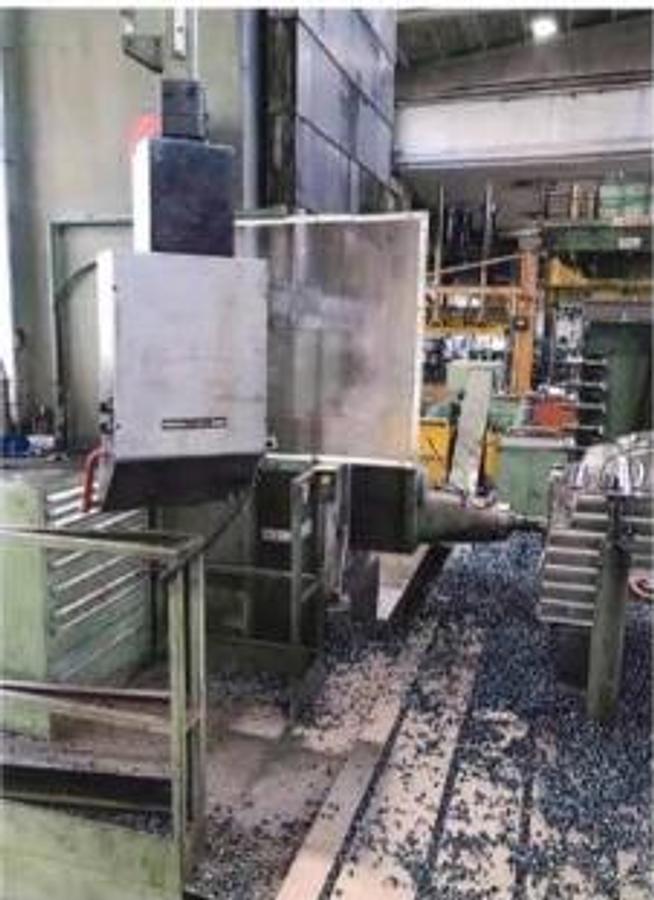

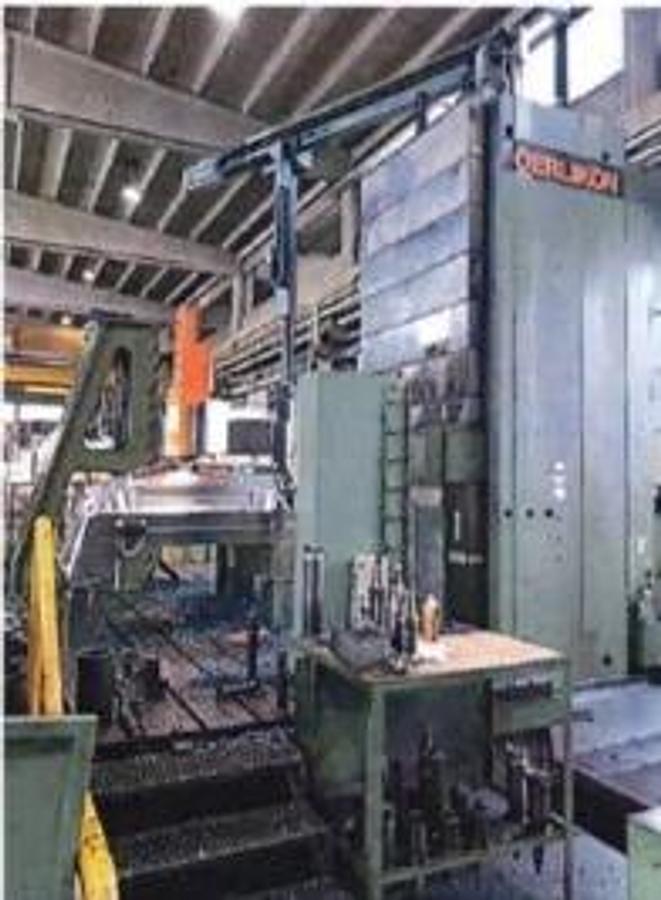

Borer Horizontal Floor Type CNC Oerlikon

X - Axis : 5000 mm,

Y - Axis : 1000 mm (vertical),

Z - - Axis : 2200 mm,

Spindle motor power in S6 : 42 kW,

Max. spindle speed at constant power : 2500 rpm,

Supply voltage : 400 Vac,

Supply frequency : 50 Hz,

Spindle cone : ISO 50,

Brushless motors : Siemens,

Drives : Siemens Simo drive 611,

CNC : FIDIA C10.

Accessories :

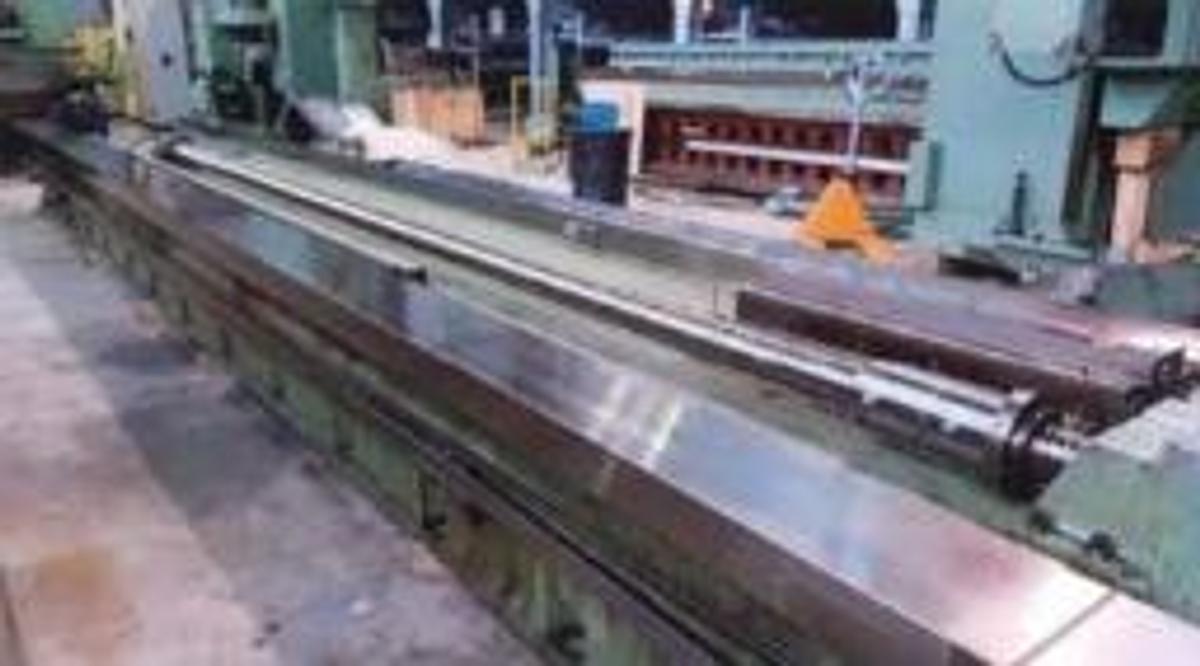

-X-axis pallet with cable chain and X-axis telescopic cover

-Double upright complete with ram

-Hanging arm with CNC

-Z-axis telescopic cover

-Fixed operator platform with protections

-Supports and conical larders

-Crankcase

-No. 2 Hydraulic power packs

-Oil cooler

-Coolant tank

-Electric cabinet

-No. 2 horizontal snouts

No rotary table, no floor plates.
