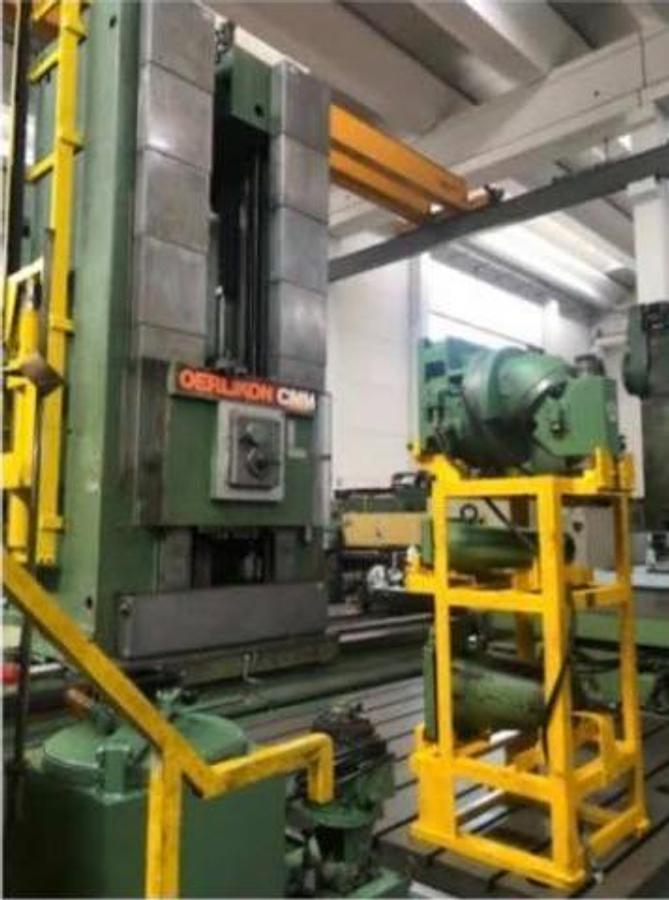

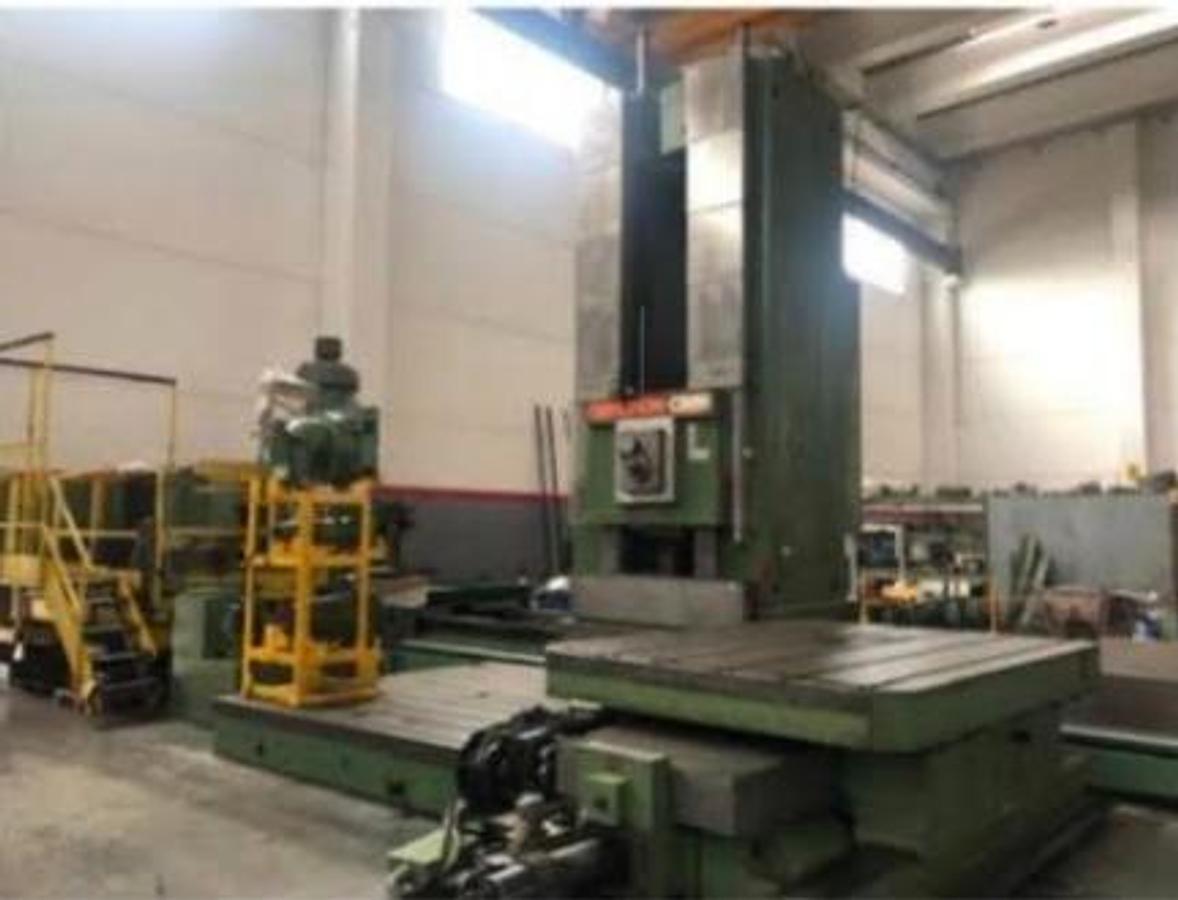

Borer Horizontal Floor Type CNC Oerlikon

X - Axis : 4000 mm,

Y - Axis : 1000 mm (vertical),

Z - - Axis : 2550 mm,

Spindle motor power in S6 : 42 kW,

Max. spindle speed at constant power : 2500 rpm,

Supply voltage : 400 Vac,

Feeding frequency : 50 Hz,

Spindle cone : ISO 50,

Accessories :

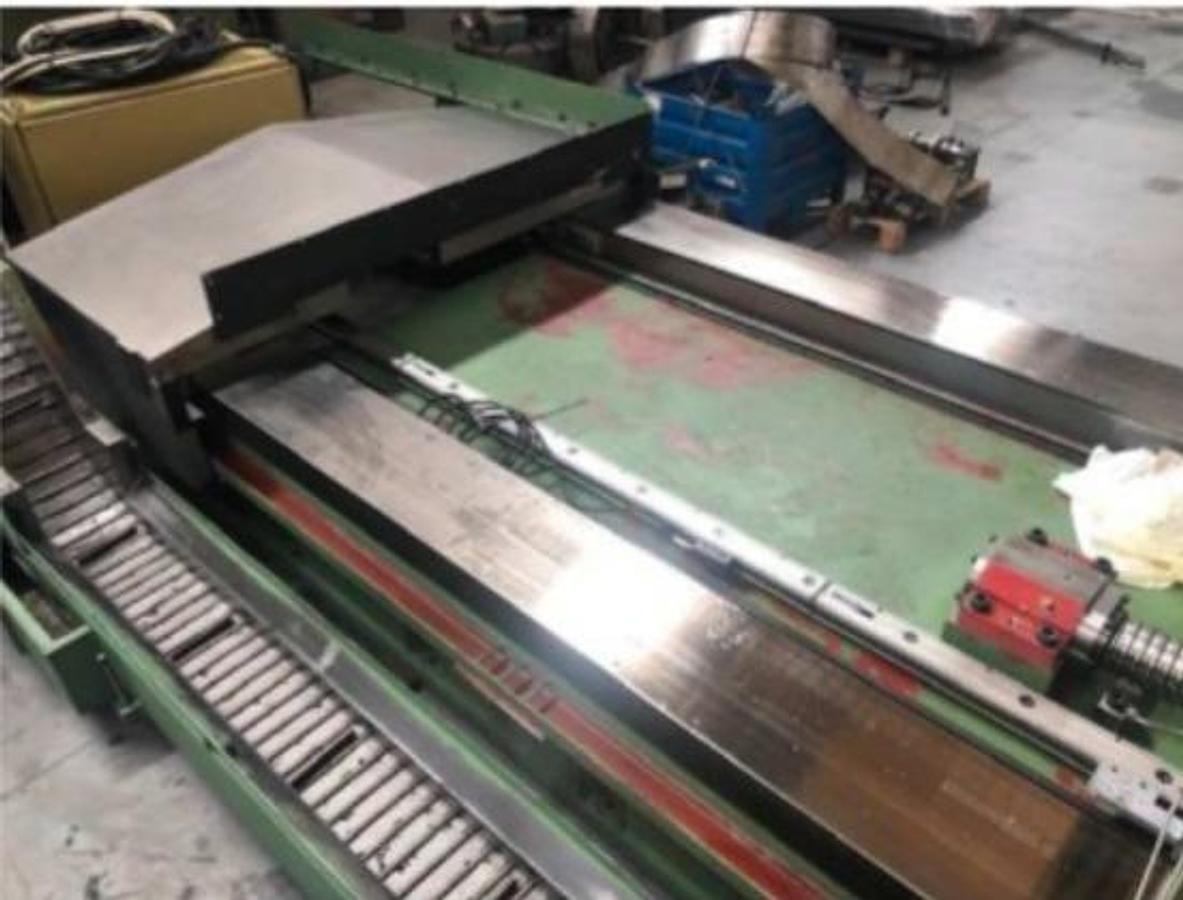

-X-axis pallet with X-axis telescopic cover

-Double upright complete with ram

-Z-axis telescopic cover

-Supports and conical larders

-No. 2 Hydraulic power packs

-Coolant tank

-Electric cabinet

-Mobile operator's platform (Z and Y axes independent of the column)

-Hanging arm with CNC

-Swarf conveyor

-Levellers

No rotary table, no floor plates.
