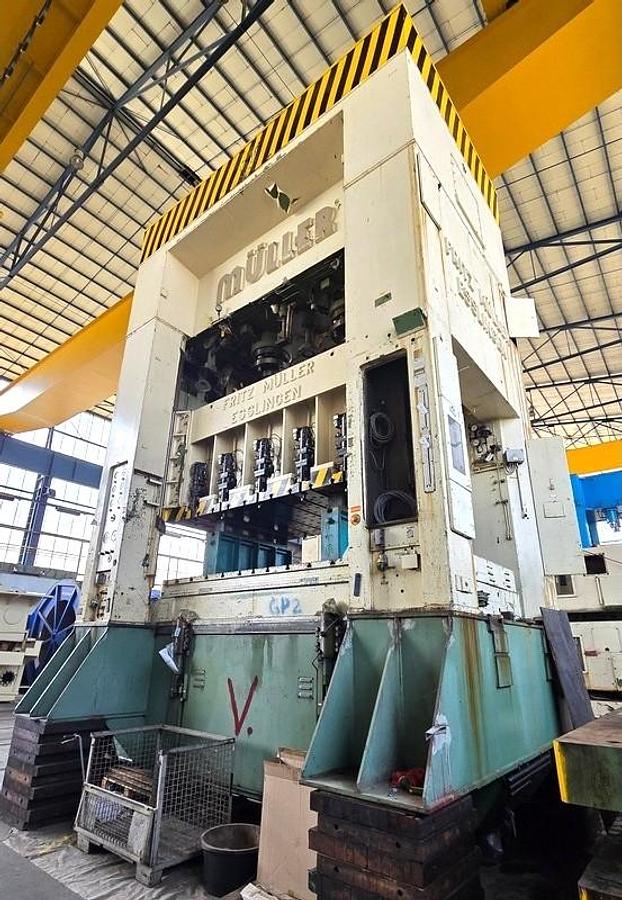

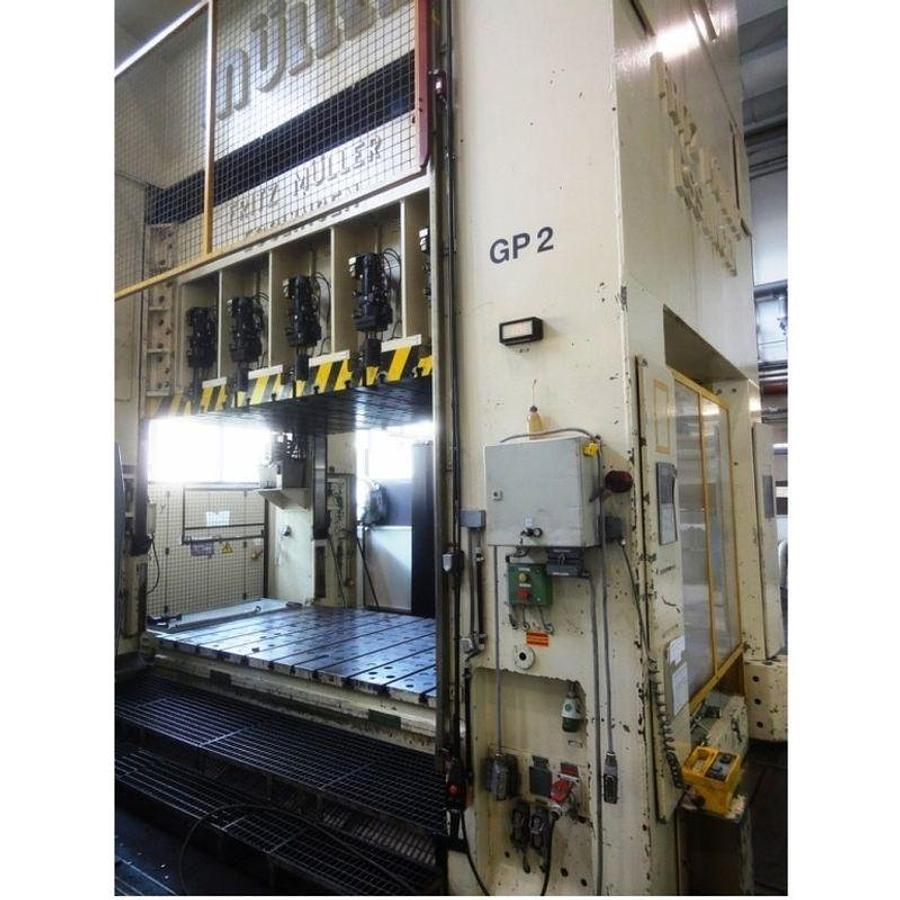

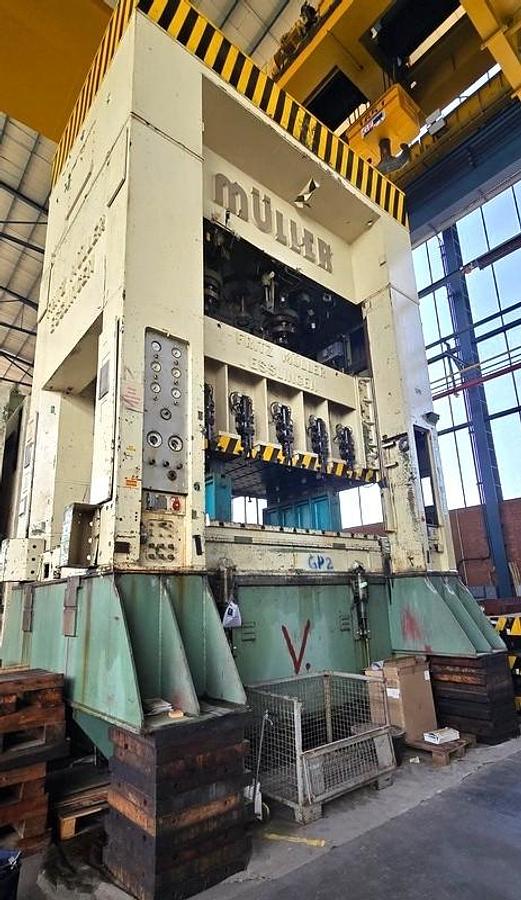

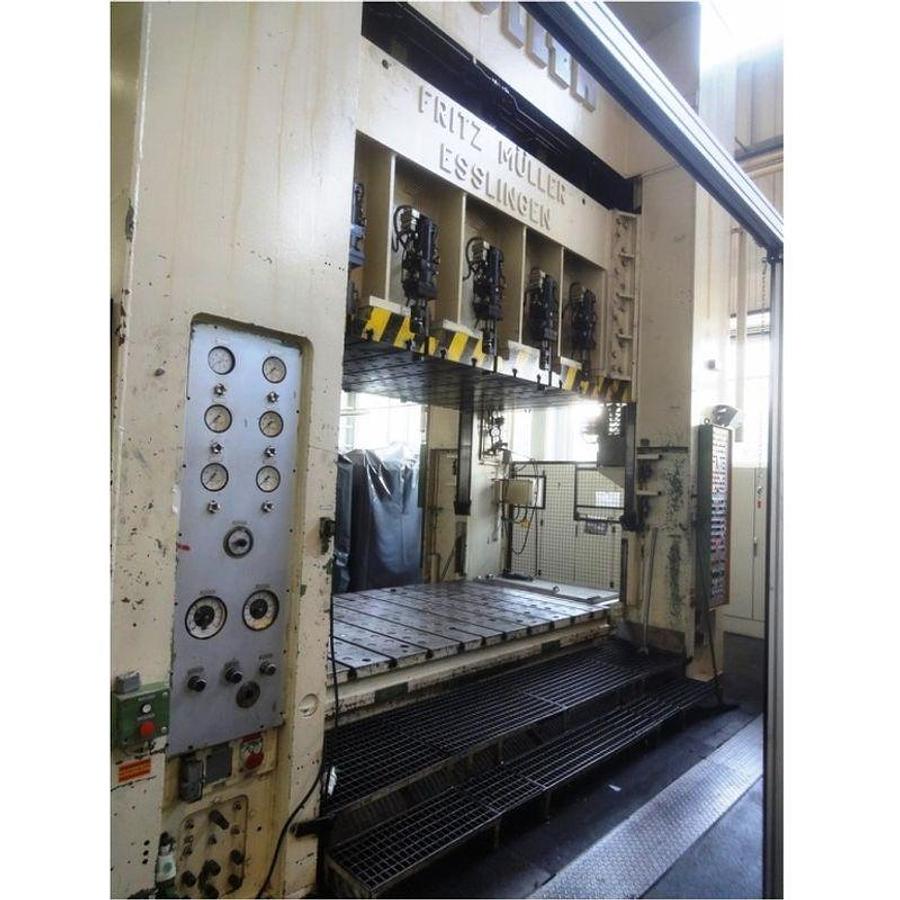

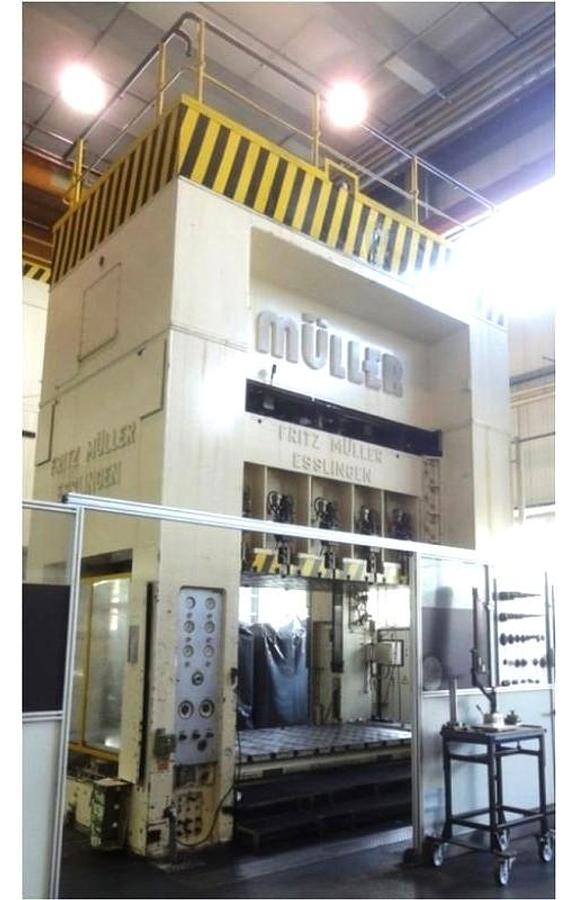

800 tons Press Sheet Stamping Hydraulic Muller ZE800-35.2.1

Capacity : 800 tons,

Stroke : 1100 mm,

Distance between columns : 3550 mm,

Side window : 1900 mm,

Daylight table - ram (stroke up) : 1900 mm,

Surface of table : 3500 x 1800 mm,

Press force of die cushion in table : 350 tons,

Stroke of die cushion in table : 280 mm,

Surface of ram : 3500 x 1800 mm,

Force of drawing cushion in ram : 8000 tons,

Stroke of drawing cushion in cam : 160 mm,

 Dimensions (W x D x H) : 5300 x 4300 x 7300 mm

Weight : 100 tons.

Year of manufacturing : 1970 / 98.
