Borer Horizontal Floor Type CNC FPT

X - Axis : 10500 mm,

Y - Axis : 1250 mm (vertical),

Z - Axis : 2500 mm,

Working speed : 0 ÷ 4000 mm/min,

Rapid feed speeds : 12,000 mm/min,

Maximum thrust on X-Y-Z axes : 2200 daN,

Spindle motor power in S1 : 30 kW,

Spindle motor power in S6 : 37.5 kW,

Spindle speed at constant torque : 0 ÷ 235 rpm

Spindle speed at constant power : 235 ÷ 4000 rpm,

Max. spindle torque in S6 : 1500 Nm,

Supply voltage : 400 Vac,

Supply frequency : 50 Hz,

Total installed power : 75.1 kW,

Spindle taper : ISO 50,

Positioning accuracy : +-0.020 mm,

Repeatability accuracy : +-0.010 mm,

Accessories :

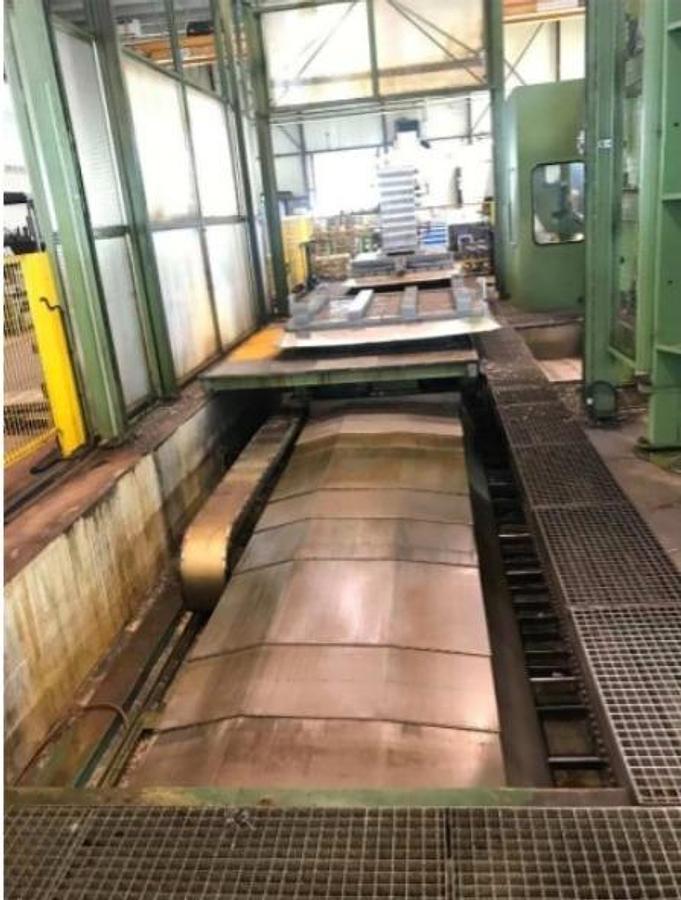

-X-axis pallet with telescopic X-axis cover

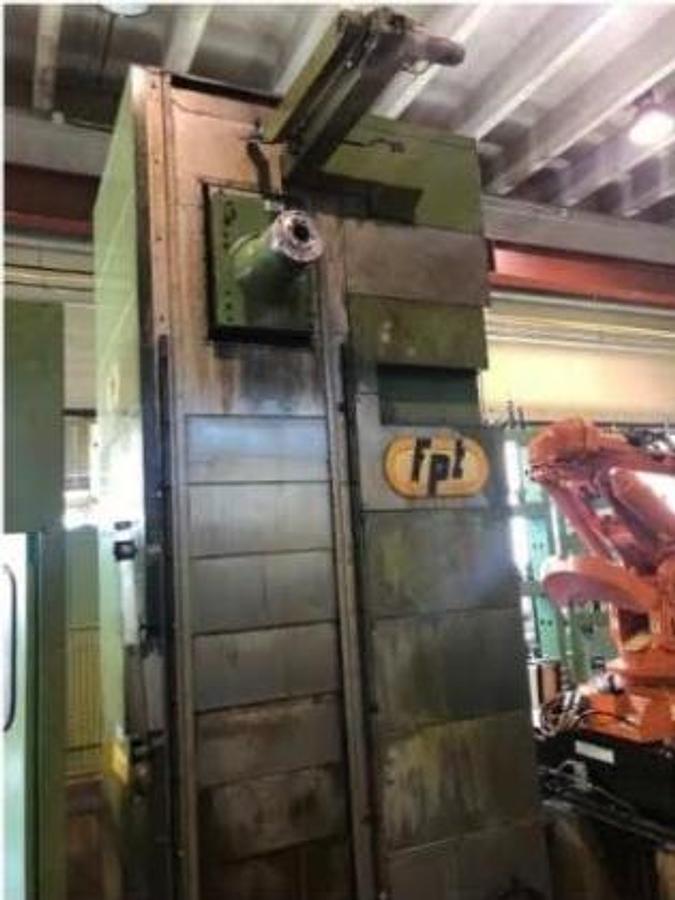

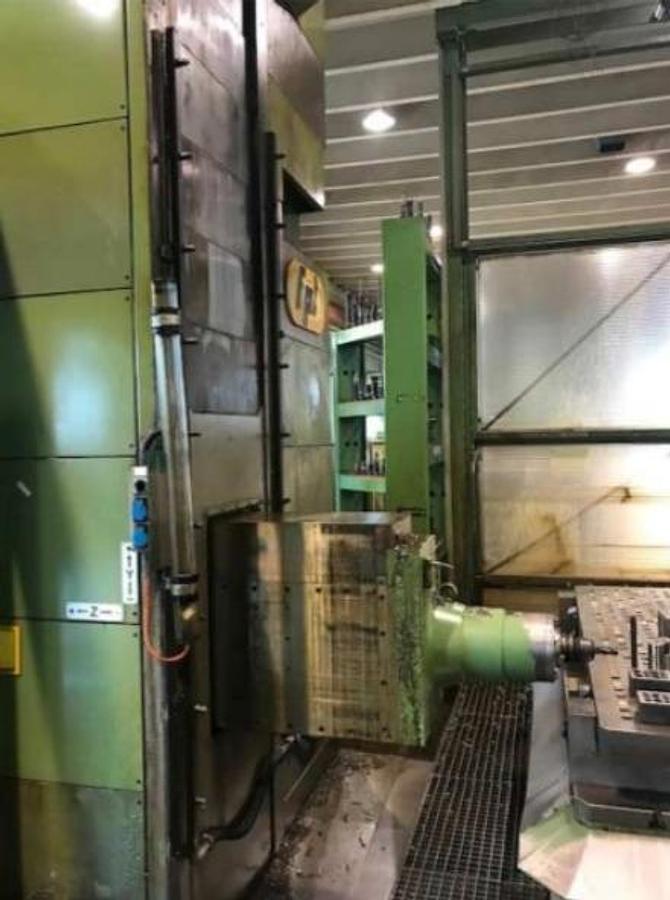

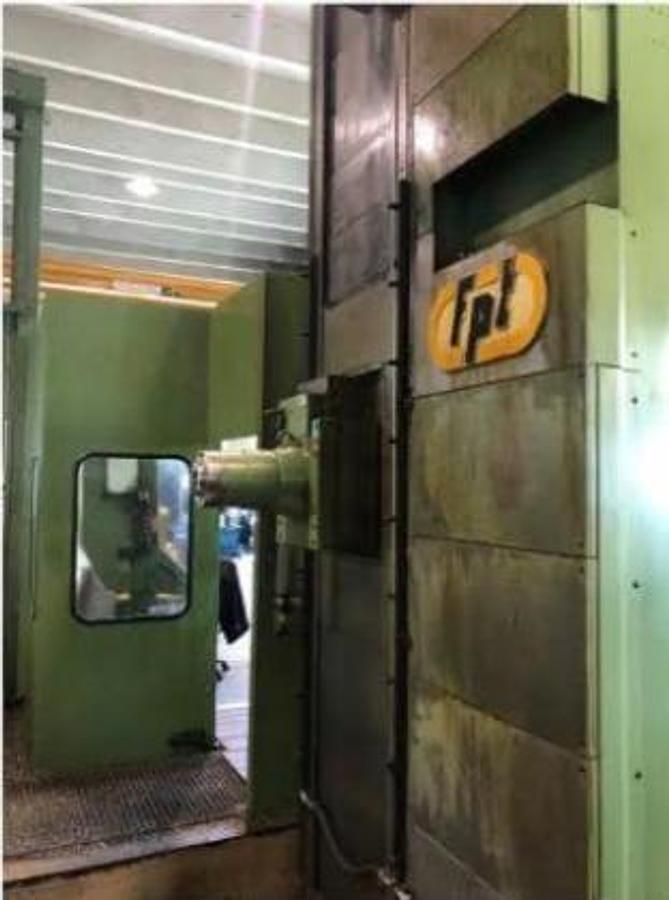

-Mast complete with ram

-Z-axis telescopic cover

-Articulated support for tool setting probe

-Pneumatic support systerm

-Crankcase

-Hydraulic unit

-Filtering tank

-Coolant recovery tank

-Electric cabinet

-Compressed air cabinet

-Heat exchanger

-Operator platform

-Hanging arm with CNC

-Chip conveyor

-Perimeter fences

No rotary table, no floor plates.
