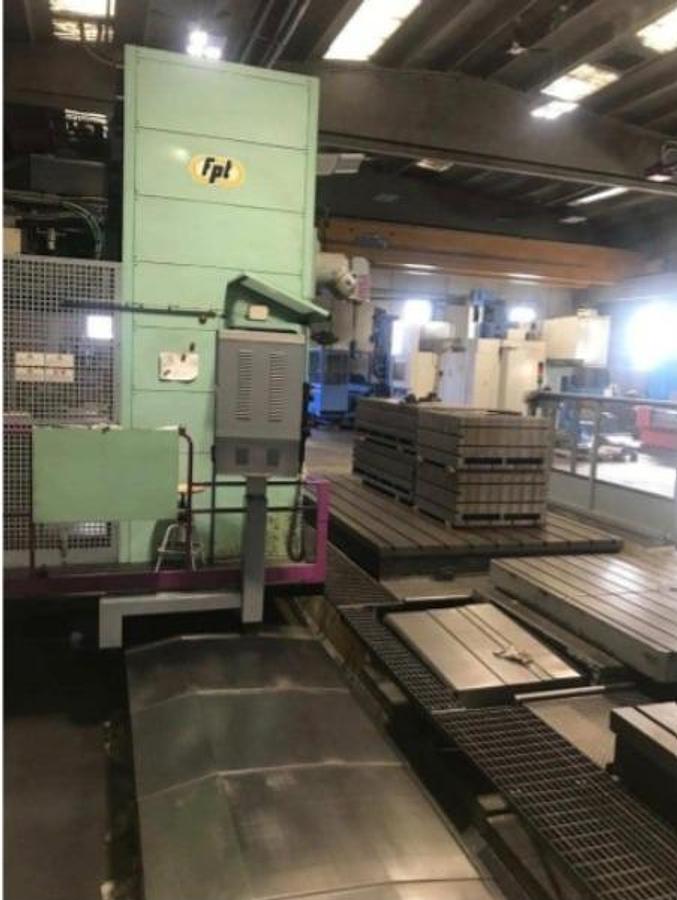

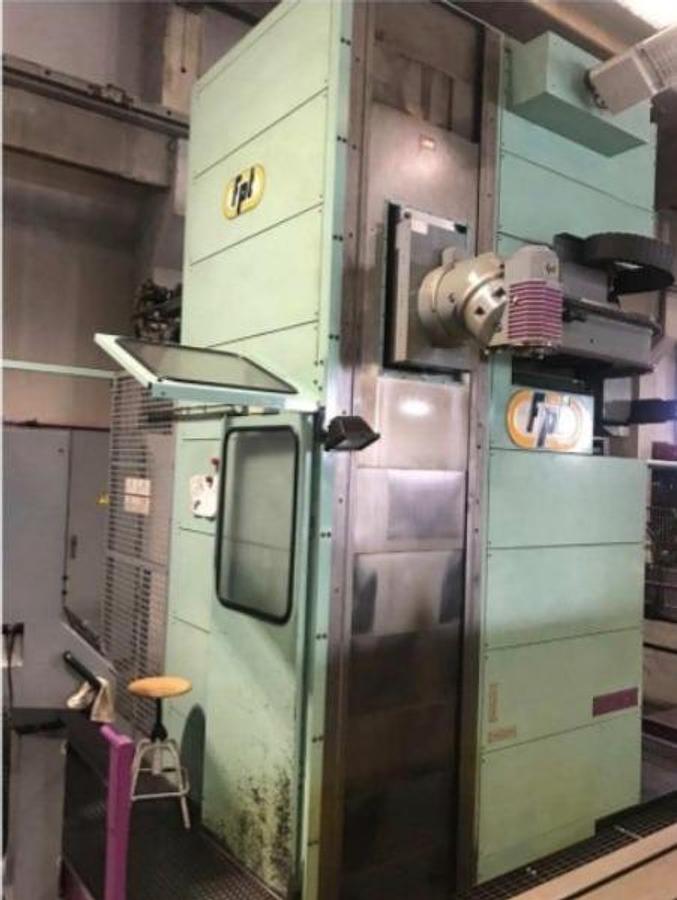

Borer Horizontal Floor Type CNC FPT

X - Axis : 7000 mm,

Y - Axis : 1250 mm (vertical),

Z - Axis : 2500 mm,

Working speed : 0 ÷ 4000 mm/min,

Rapid feed speeds : 12,000 mm/min,

Maximum thrust on X-Y-Z axes : 2200 daN,

Spindle motor power in S1 : 30 kW,

Spindle motor power in S6 : 37.5 kW,

Spindle speed at constant torque : 0 ÷ 235 rpm

Spindle speed at constant power : 235 ÷ 4000 rpm,

Max. spindle torque in S6 : 1500 Nm,

Supply voltage : 400 Vac,

Supply frequency : 50 Hz,

Total installed power : 75.1 kW,

Spindle taper : Not installed,

Automatic head change : Yes,

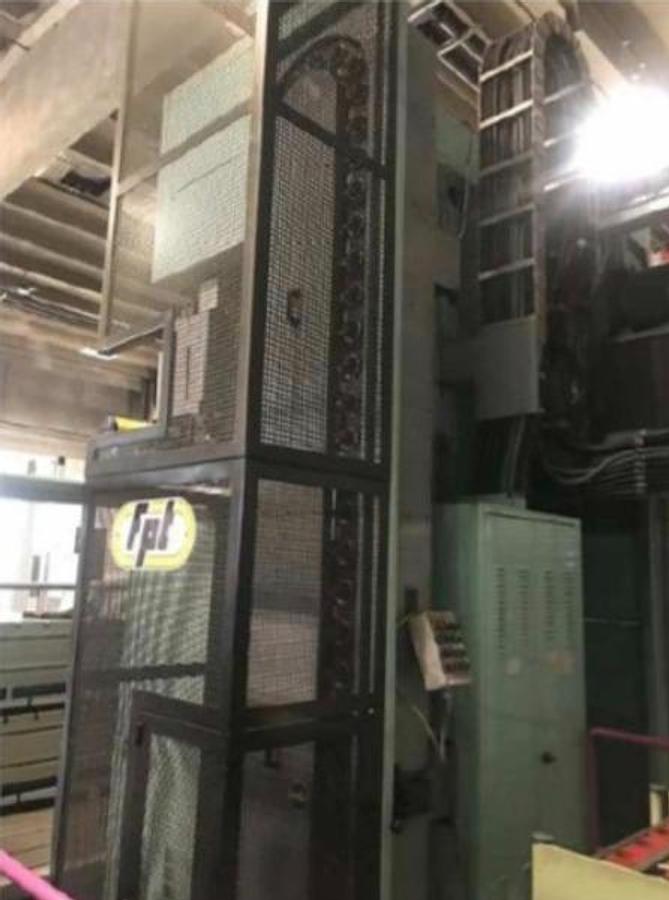

Tool magazine ISO 50 : 60 n° pos,

Automatic tool changer : Installed,

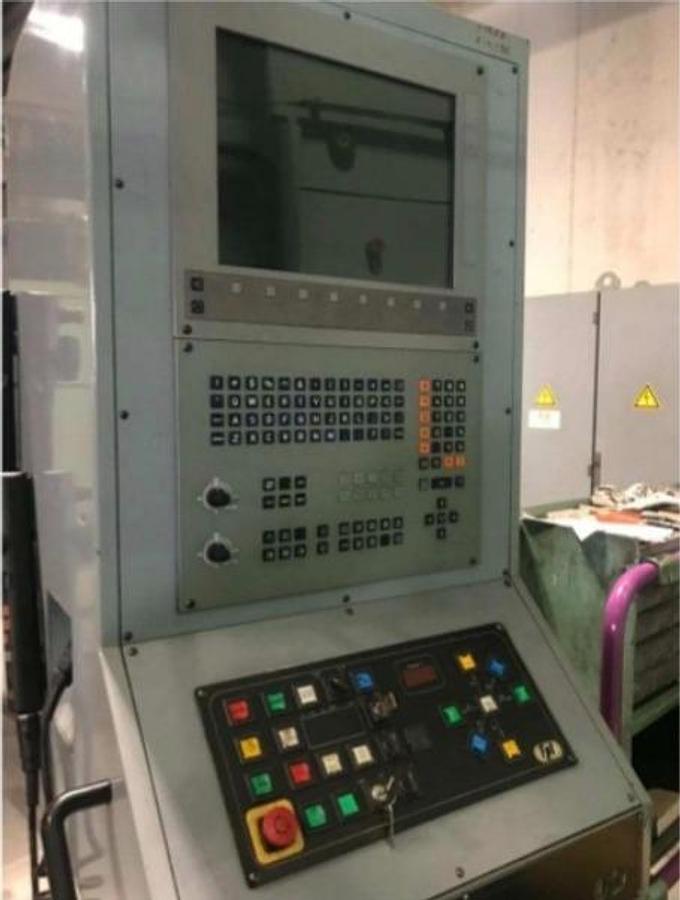

CNC : Heidenhain TNC430M,

Accessories :

-X-axis pallet with telescopic X-axis cover

-Mast complete with ram

-Automatic tool changer

-Z-axis telescopic cover

-Hydrostatic support system

-Crankcase

-Hydraulic power pack

-Oil cooler

-Coolant tank

-Electric cabinet

-Area compartmentation barriers

-Swarf evacuator

No rotary table, no floor plates.
