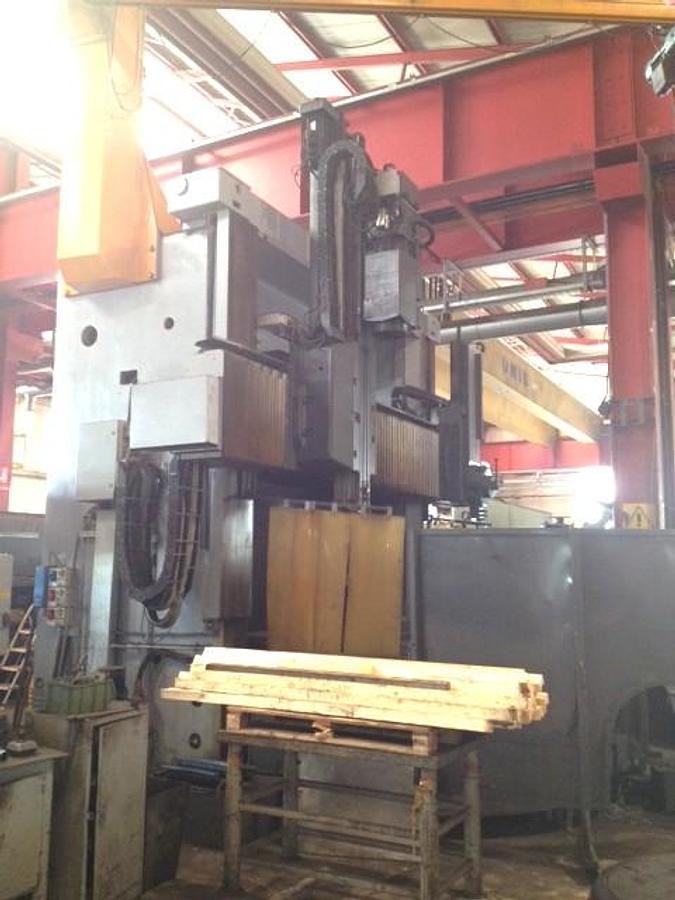

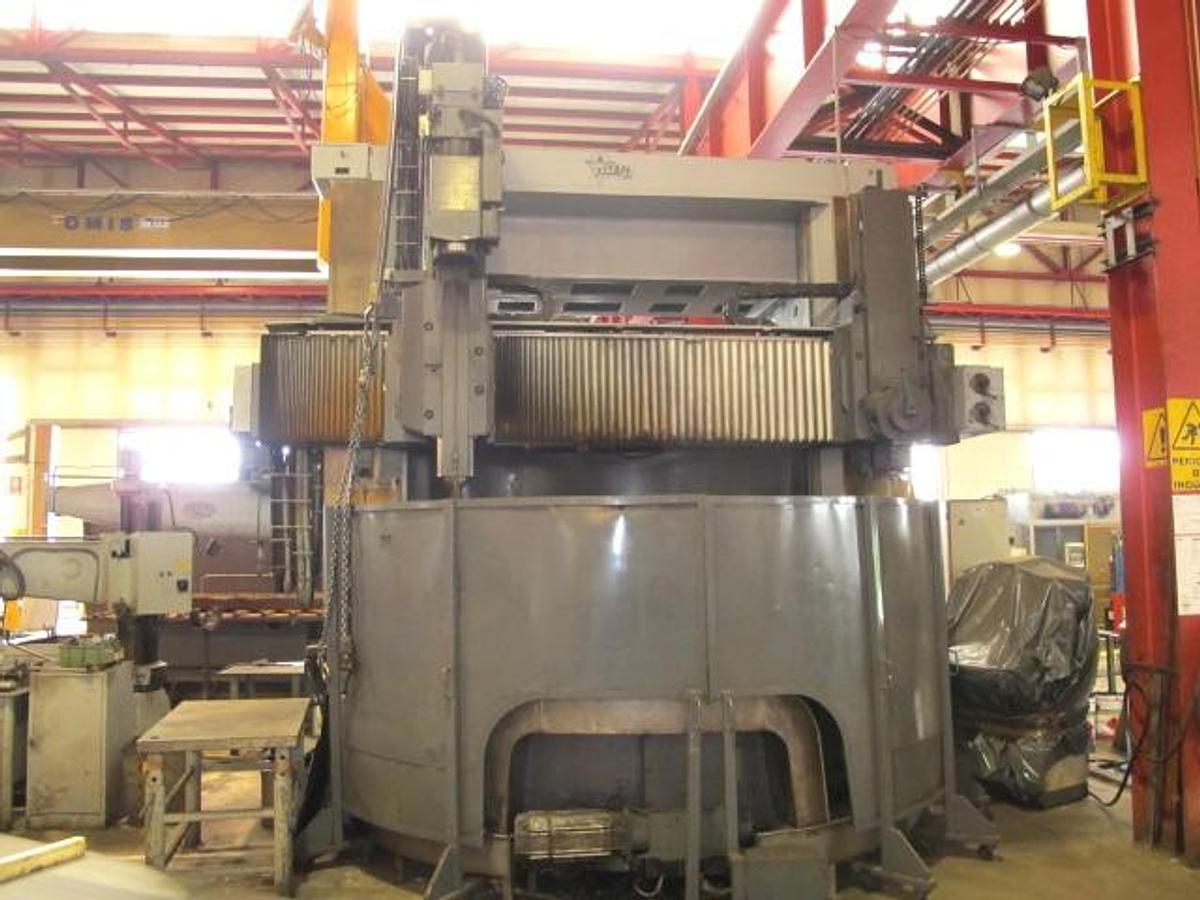

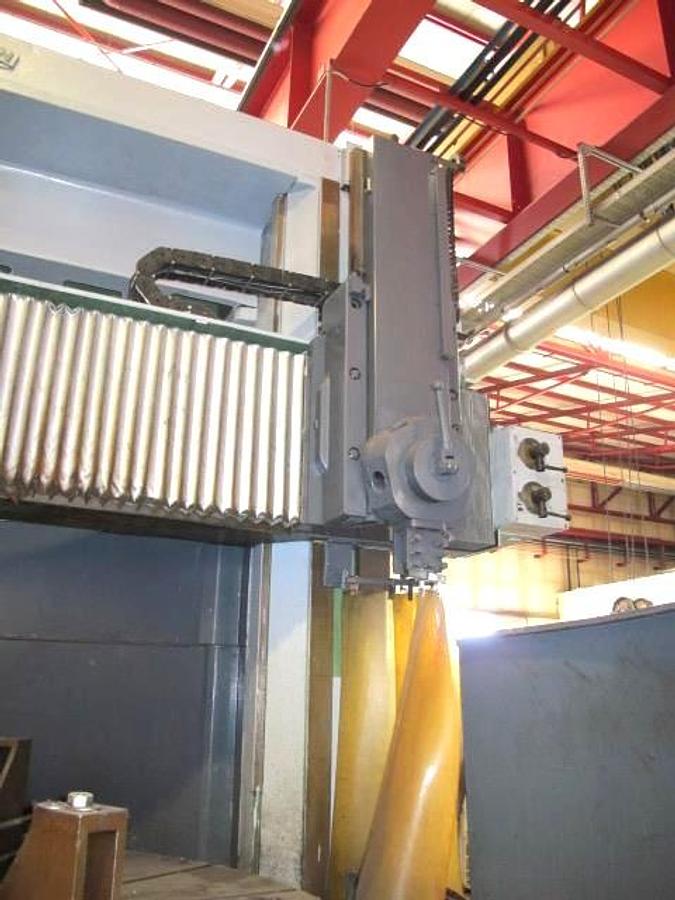

Lathe Vertical Turning CNC Titan MOD.D33

N°02 vertical carriage

Platform diameter : 3000 mm,

Max working diameter : 3160 mm,

Min diameter internal working : 400 mm,

Max height working piece (under movable cross slide) : 2200 mm,

Max weight piece : 18 tons,

Main drive motor power : 55 kW,

Table speed giri/minute 0,005-92

Cross rail stroke over column : 1600 kW,

Positioning feed : 400 mm/minute,

Motor c.a. for cross rail lifting : 7,5 kW,

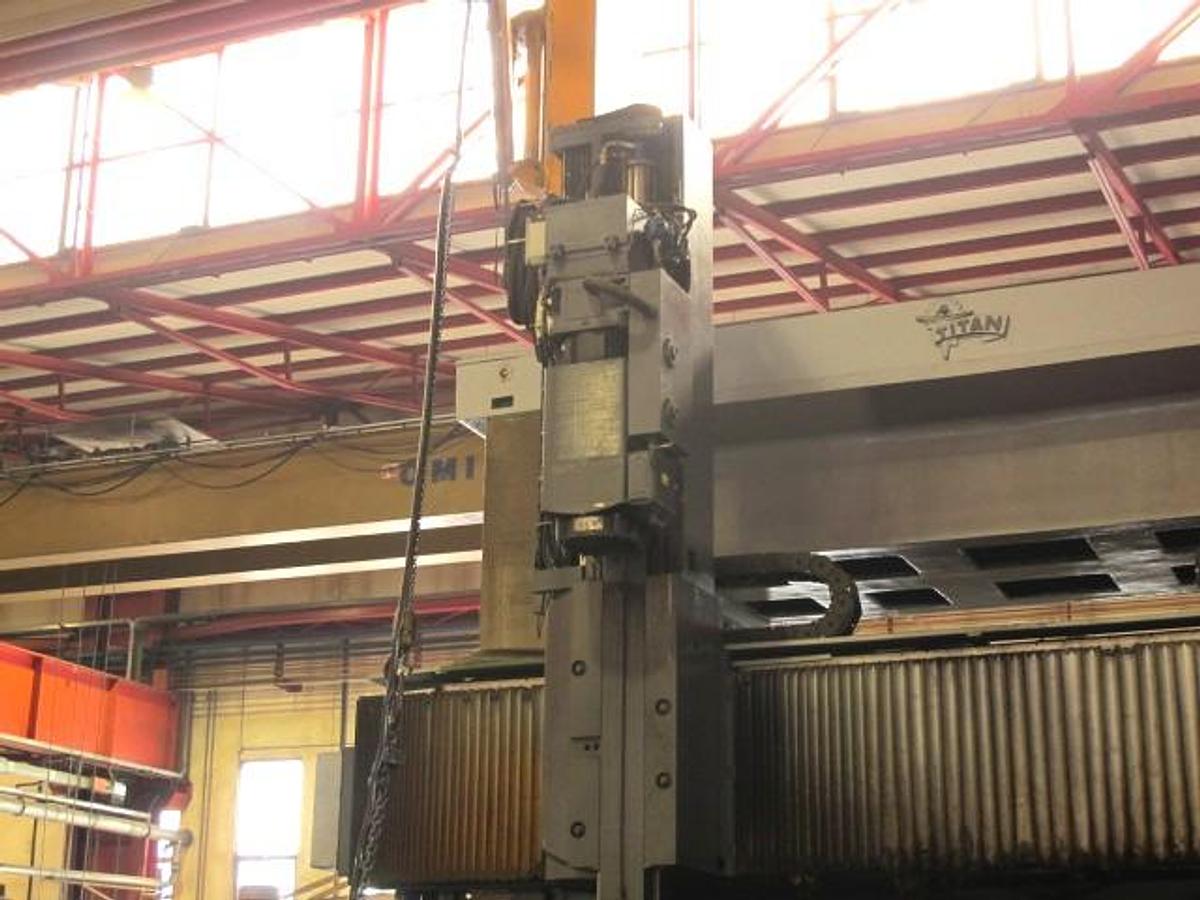

Vertical tool holder carriage sx:

Ram vertical stroke : 1000 mm,

Ram cross section : 224 x 224 mm,

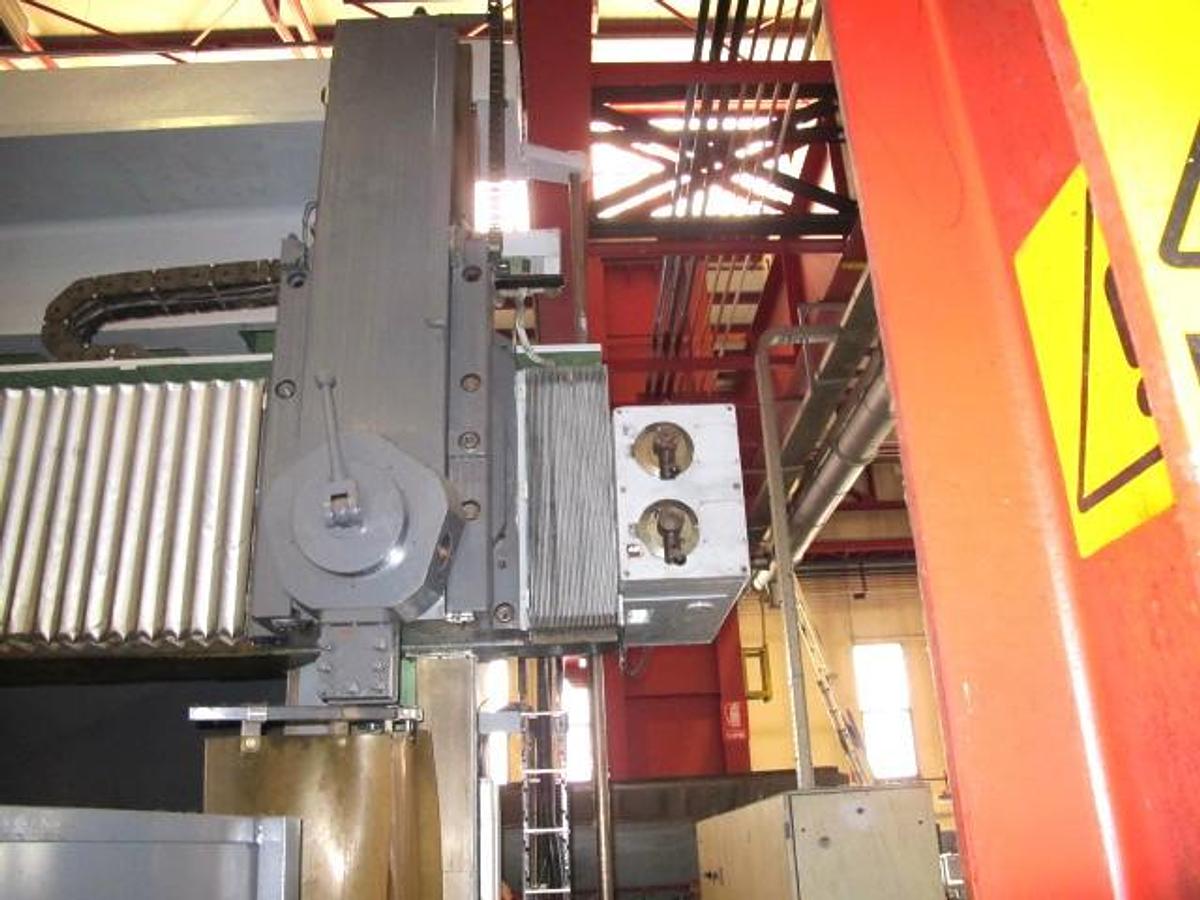

Vertical tool holder carriage dx:

Ram vertical stroke : 600 mm,

Overall dimensions : 5300 x 7600 x 6000 mm,

Weight : 47500 Kg,

Equipped with:

Axis C

Milling cross slide

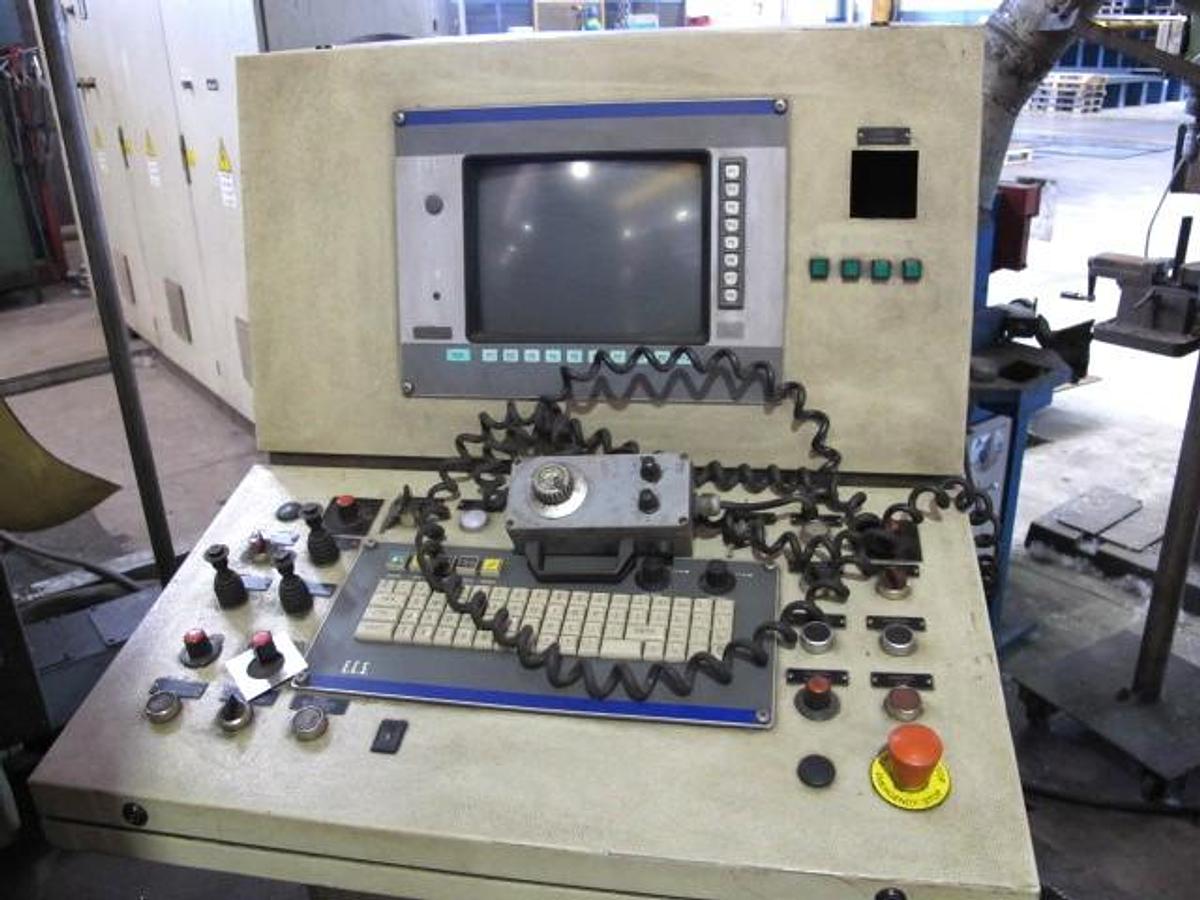

CNC ECS 2400
