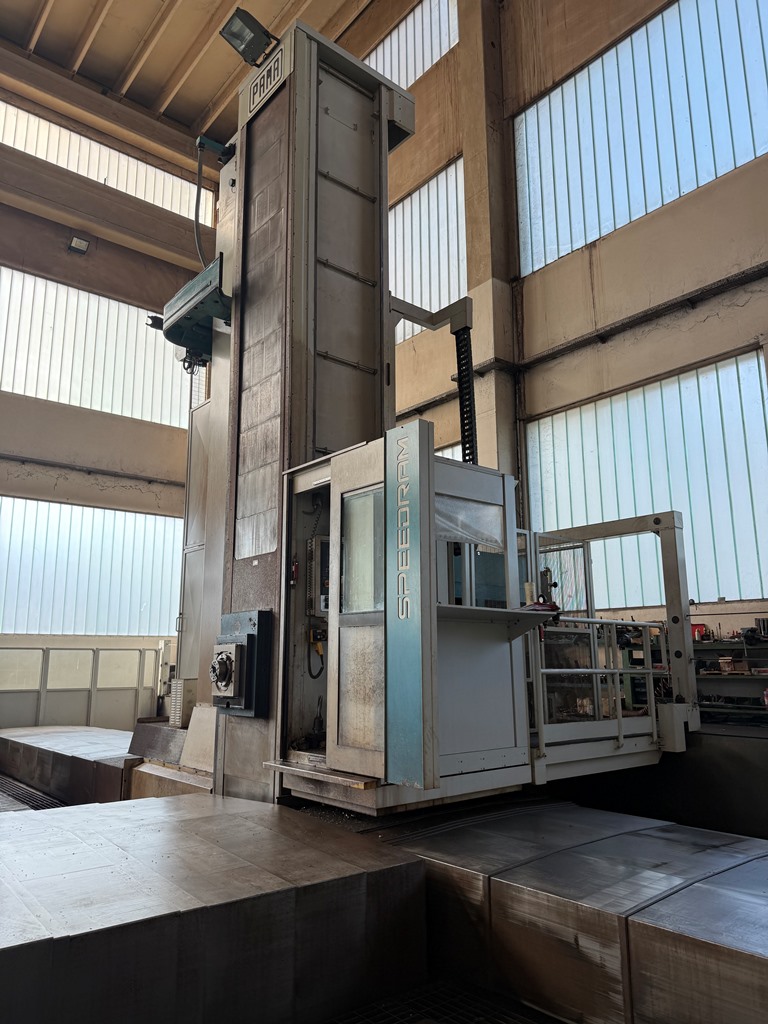

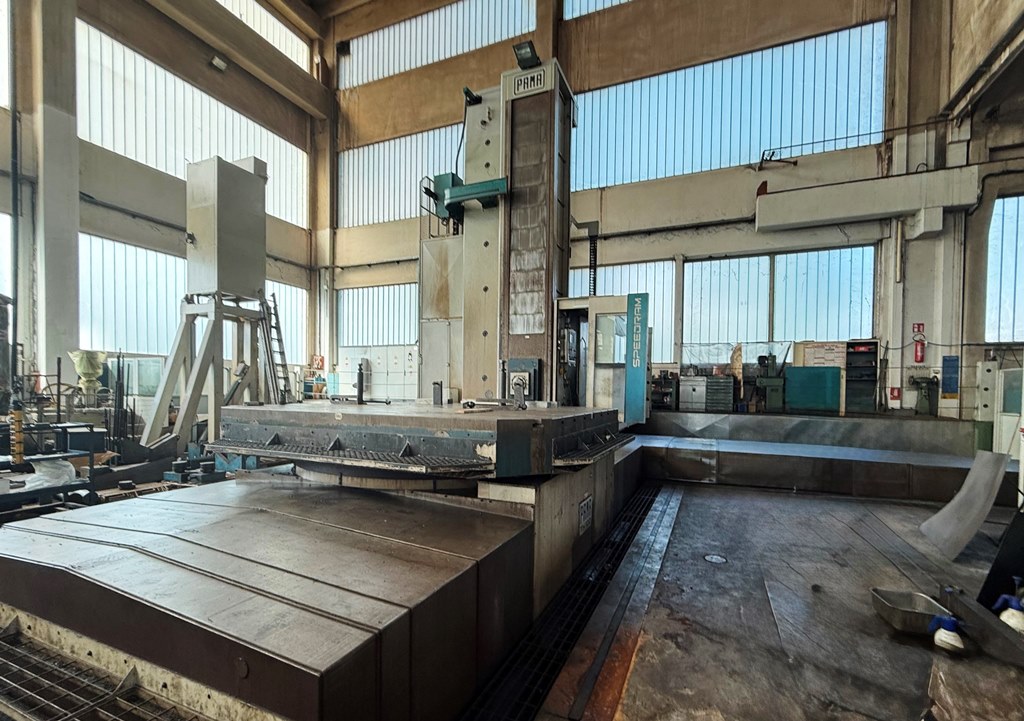

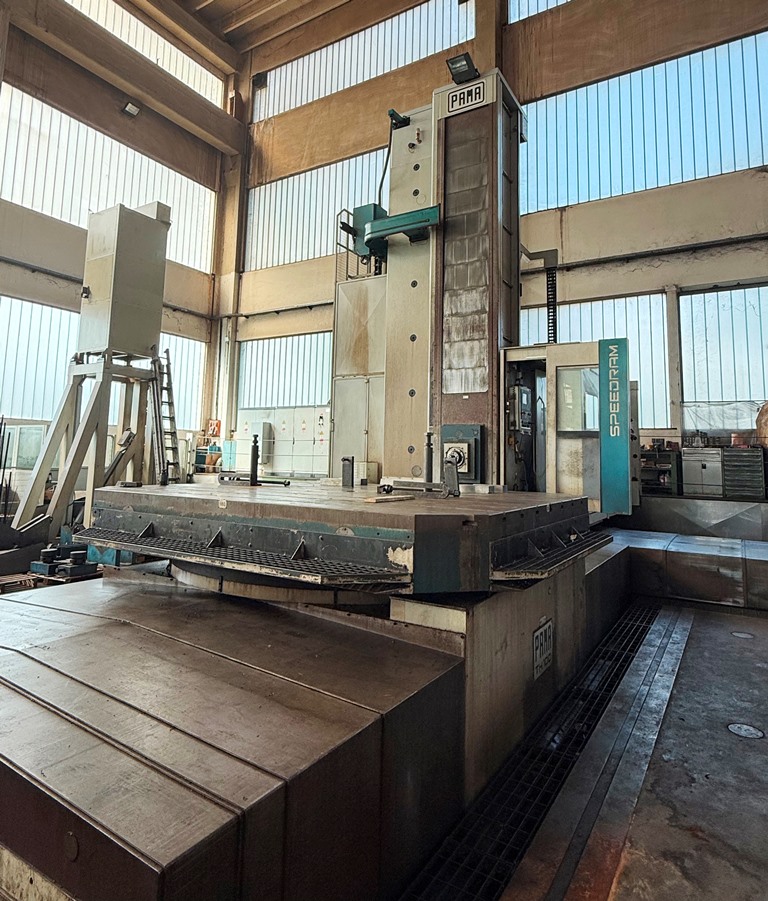

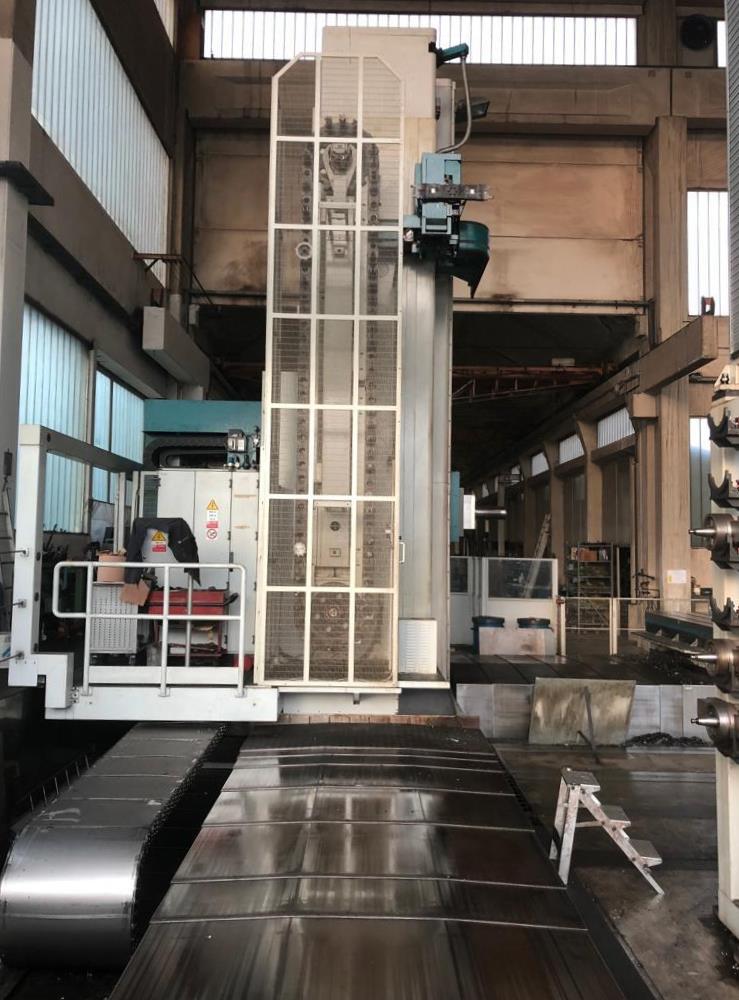

Borer Horizontal Floor Type CNC Pama SPEEDRAM2000

CNC Boring Pama model SPEEDRAM 2000 Hydrostatic

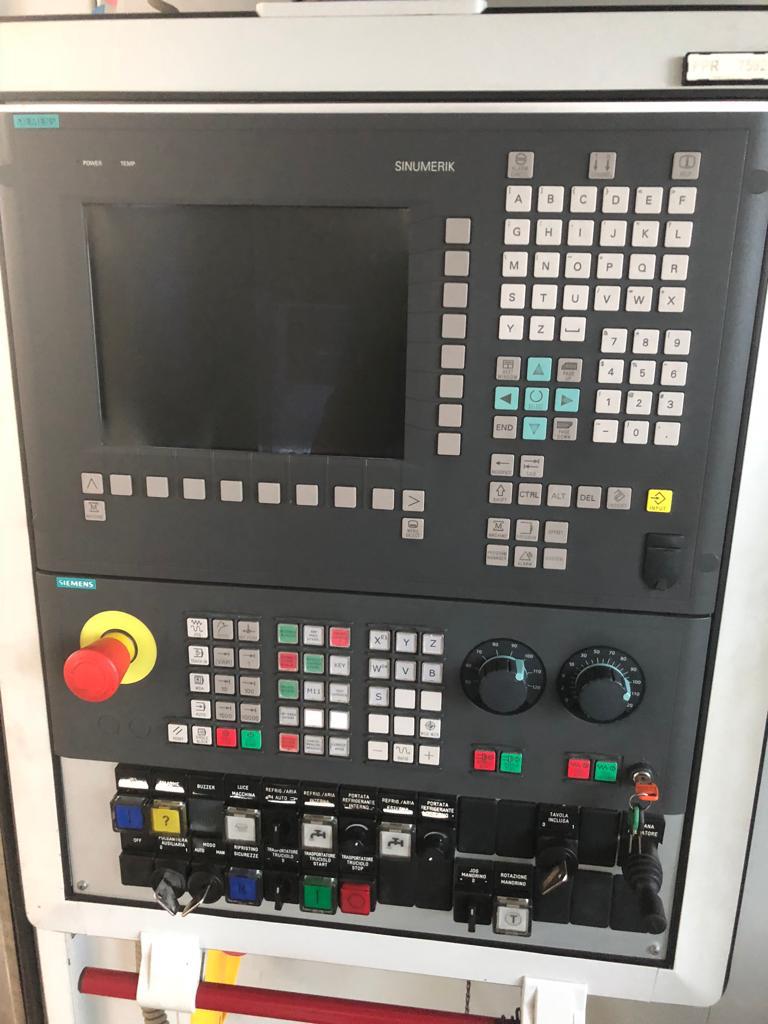

Numerical control Siemens Sinumerik 840D

X-axis : 13.000 mm,

Y-axis : 5000 mm,

Z-axis : 1200 mm,

W-axis : 1000 mm,

Total axial travel (Z+W) : 2200 mm,

Work feed on all axes : 8000 mm/min,

Rapid feed on all axes : 20.000 mm/min,

Spindle:

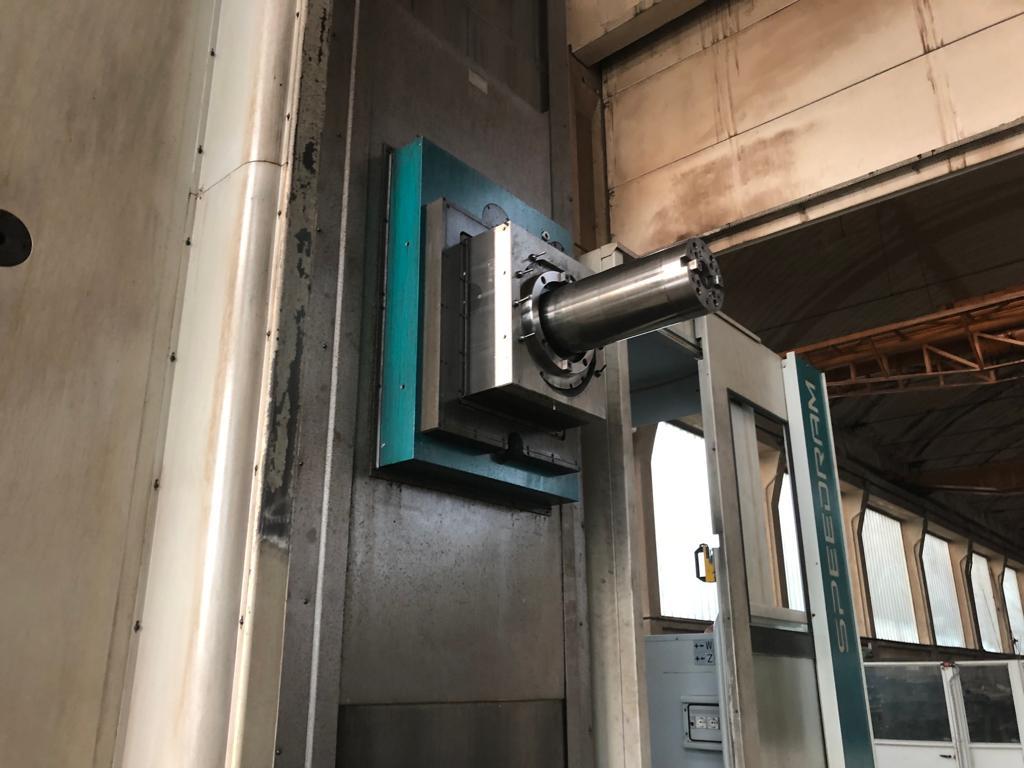

Boring spindle diameter : 180 mm,

Ram dimensions : 400 x 440 mm,

Spindle rotation speed (3 ranges) : max 2500 rpm,

Spindle power : (S1) kW 91,

Rated spindle torque : (S1) Nm 9.050,

Boring spindle internal taper : ISO 50 DIN 69871 AD-Type Big Plus,

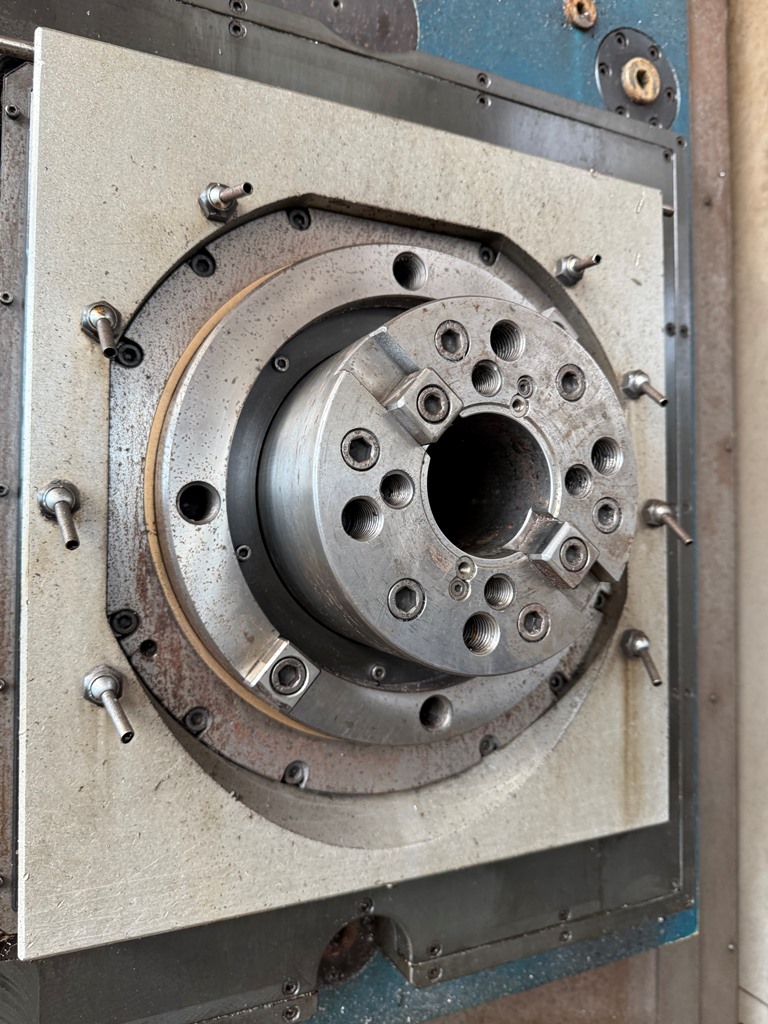

Orthogonal indexable head : TTL2 25 360,

Tool taper : ISO 50 DIN 69871/2 AD-Type Big Plus,

Max spindle power : 25 kW,

Max spindle speed : 2500 rpm,

Speed ratio : 1:1,

Spindle indexing +/- 100°, 200 positions every 1°,

Head indexing +/-180°, 360 positions every 1°,

Max rated spindle torque : 1000 Nm,

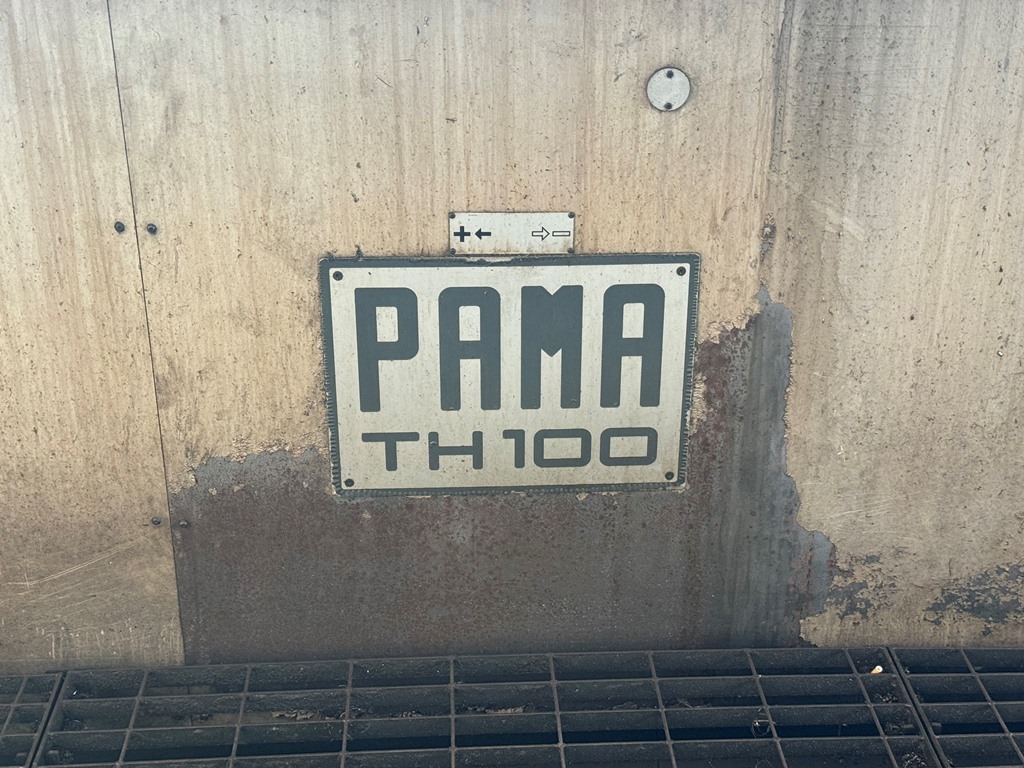

Rotary and linear axis table TH 100:

Table dimensions : 3000 x 3500 mm,

Load capacity : 100 tons,

Center T-slot dimension : 36h7 mm,

Side T-slot dimension : 36h12 mm,

Slot pitch : 320,

Longitudinal travel V-axis : 2500 mm,

Feed/rapid speed V-axis : 10.000 mm/min,

Chain-type tool magazine cu 145 r80, 80 tools,

Machine weight : approximately 160/165 tons.

Complete with:

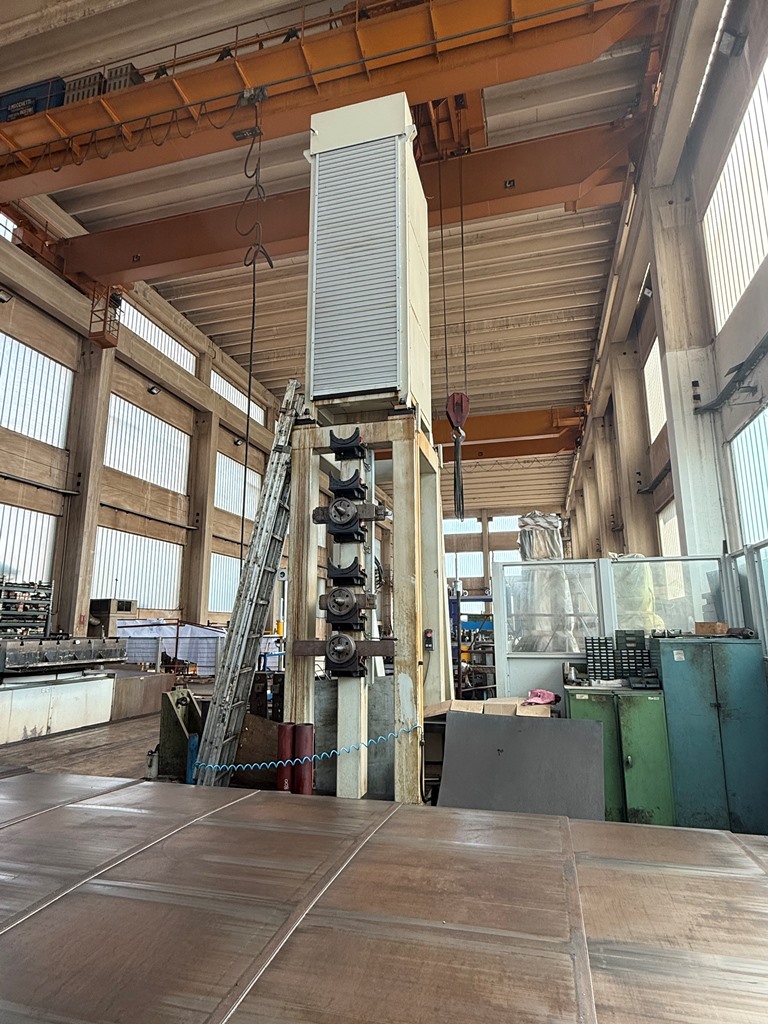

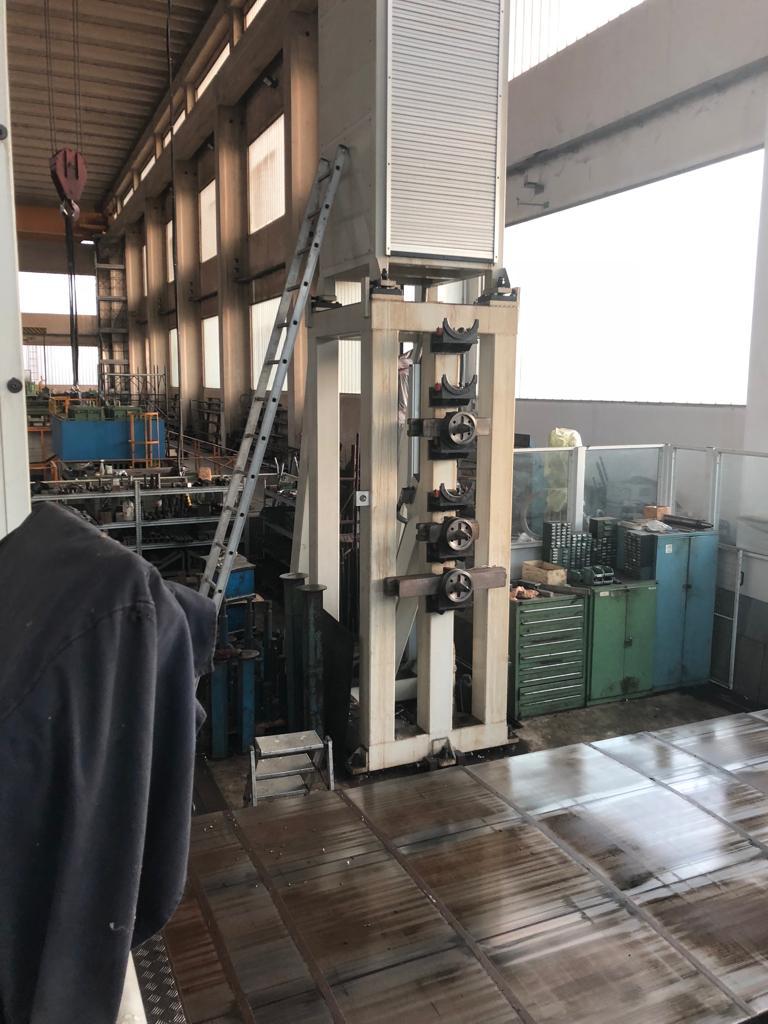

- Accessory storage with 2+1 positions, fixed enclosed type

- Fixed tool holder rack (ISO50, 6 positions)

- External - internal tool coolant system 30 bar

- Radio transmission workpiece probe (renishaw)

- Hinged belt chip conveyor

- No. 02 Chip conveyors on sides of rotary table
