1000 tons Press Knuckle Joint Coining Barnaul KB8340

Capacity : 1000 tons,

Stroke : 170 mm,

Stroke per minutes : 32 SPM,

Shut height : 490 mm,

Slide adjustment : 16 mm,

Table surface area : 800 x 800 mm,

Ram surface : 825 x 860 mm,

Free frontal opening (L-R) : 900 mm,

Upper ejector stroke : 16 mm,

Upper ejector capacity : 10 tons,

Lower ejector stroke : 80 mm,

Lower ejector capacity : 32 tons,

Dimension (L x W x H) : 295 x 1950 4090 mm,

Main drive : 33.5 kW,

Machine weight : 26 kg.

Extended machine accessories: Full line ready to produce including :

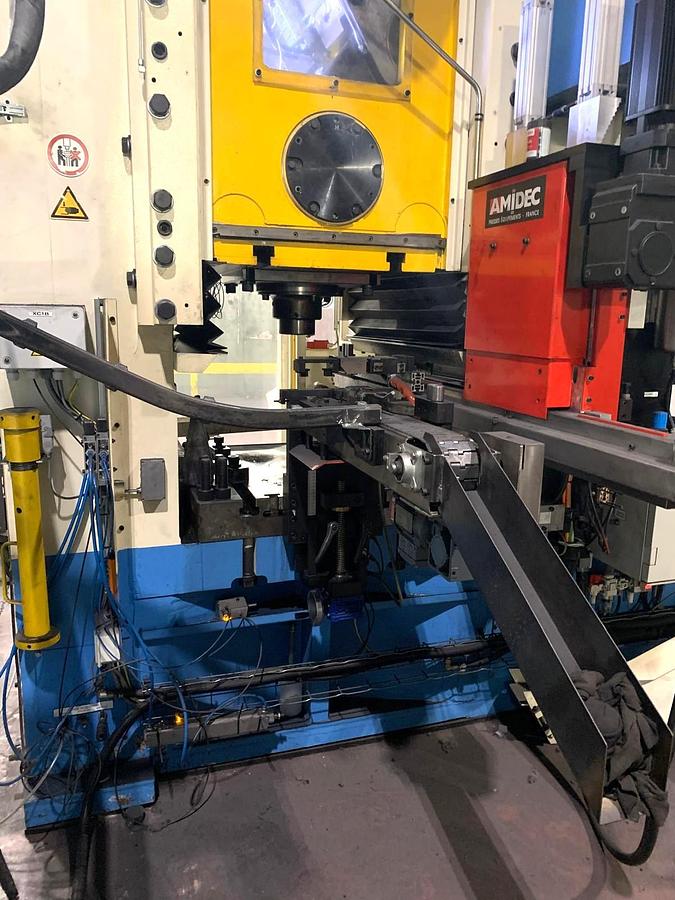

*New AMIDEC (France) 2 axis transfer arm, equipped with:

2 grippers for the handling of billets

1 nozzle for cleaning and lubrication of forging tools

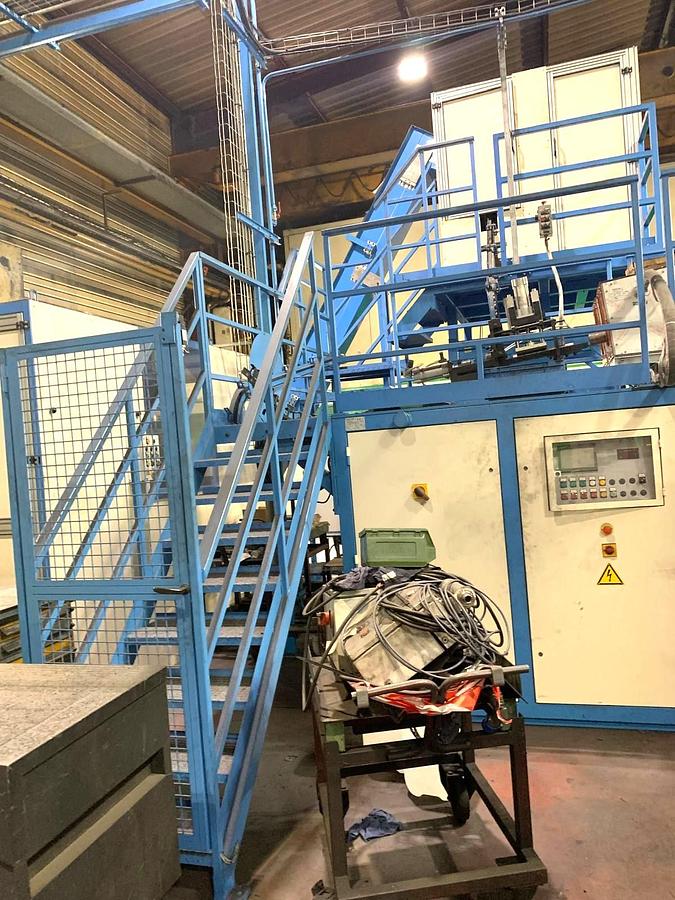

*New Induction s.r.l. (Italy) heater 200kW designed to heat carbon steel billets diameter 24 to 75,5mm, length 22,1 to 33,1mm. 700 to 800°C

Scope of supply of the heating system

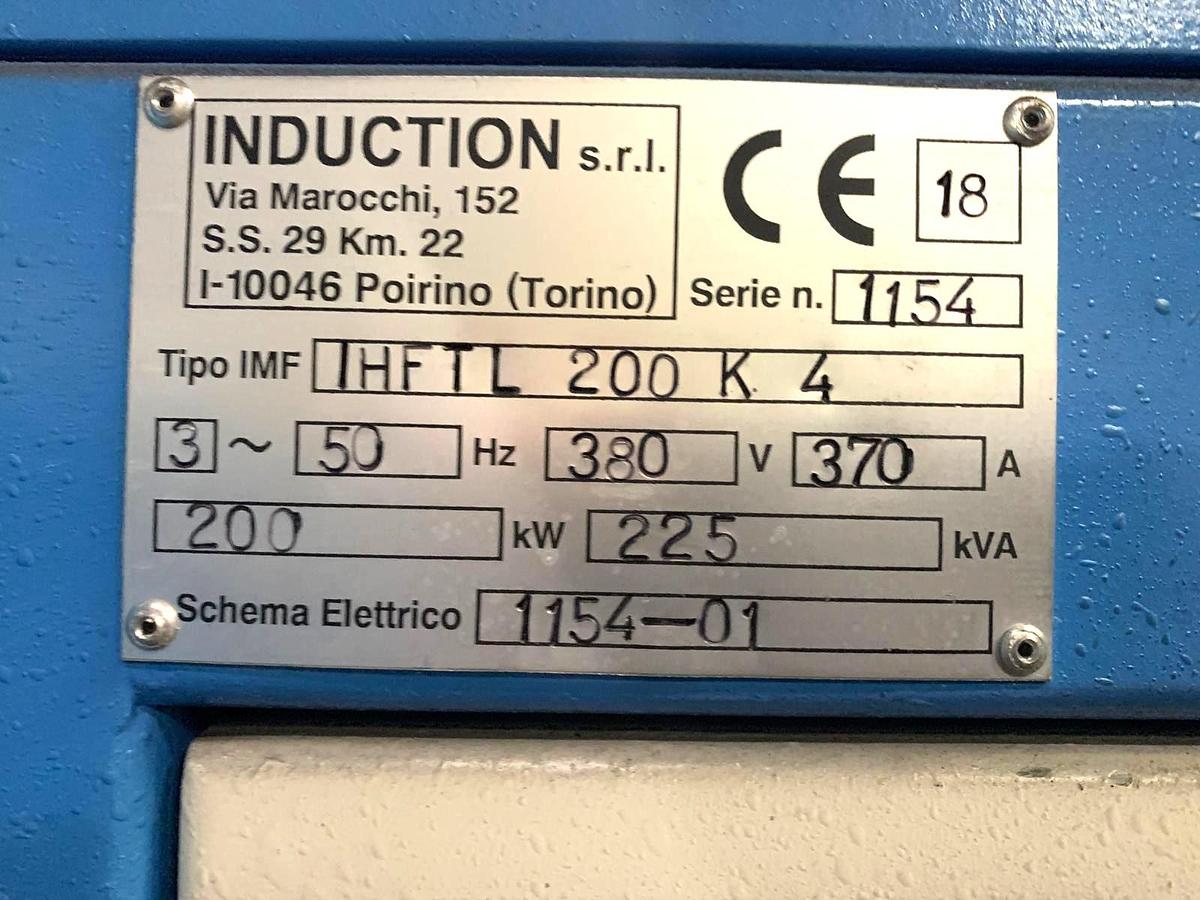

A/ M.F. Static converter model IHFT 200 K4 B/

Frame for the M.F. capacitors and inductors

C/ automatic loading system for disc-shaped billets with reversible box-

Tilting box- Storage conveyor

Vibrating bowl

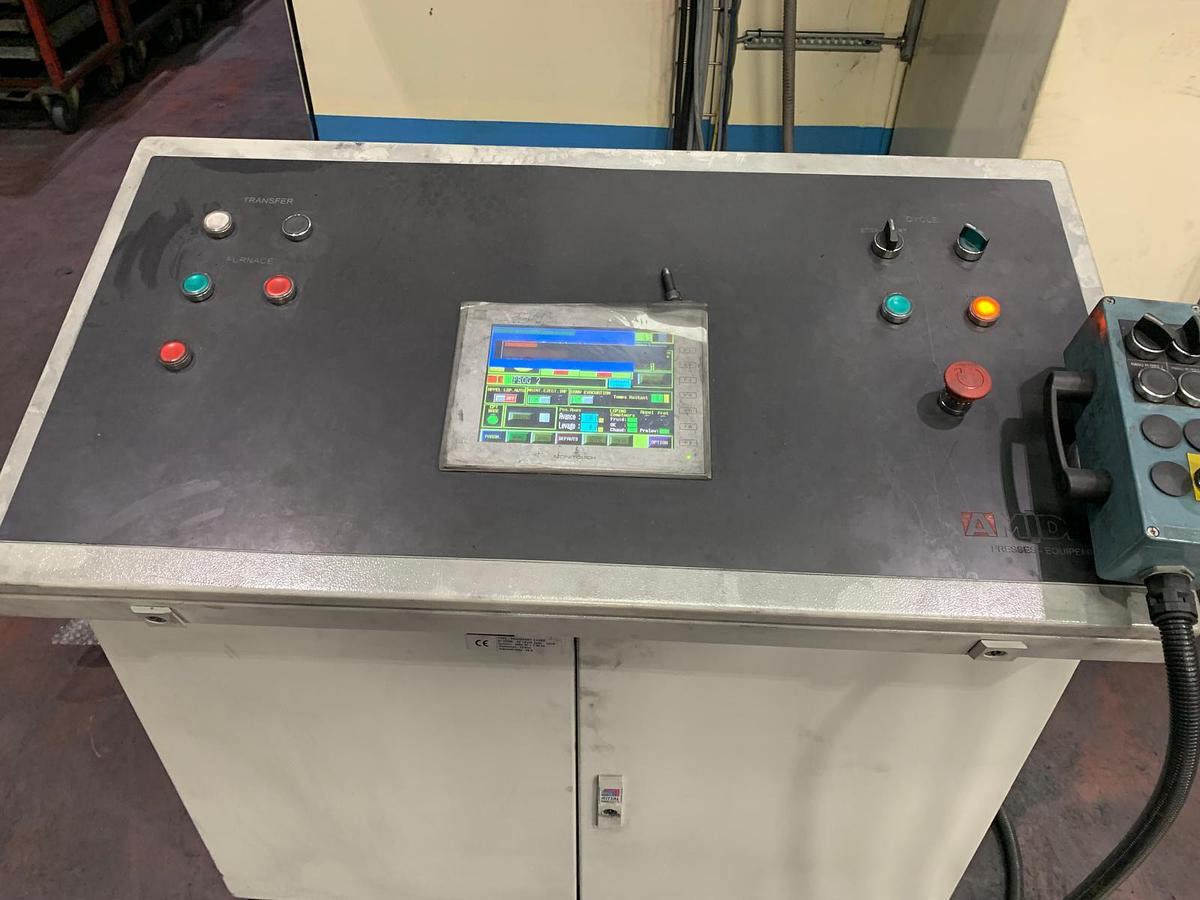

Command and control cabinet

Steel support

Soundproof cabine

D/ 1 system for the introduction of the billets to the inductor and 1 system for exit of the billets.

E/ Inclined inductor length 1200mm with inox pipe

F/ 1 automatic inductors exchange double version (for 2 inductors)

G/ 1 optical pyrometer

H/ 1 integrated dry supply transformer

I/ PLC Siemens S1500 installed on the converter

J/ Cooling system.
