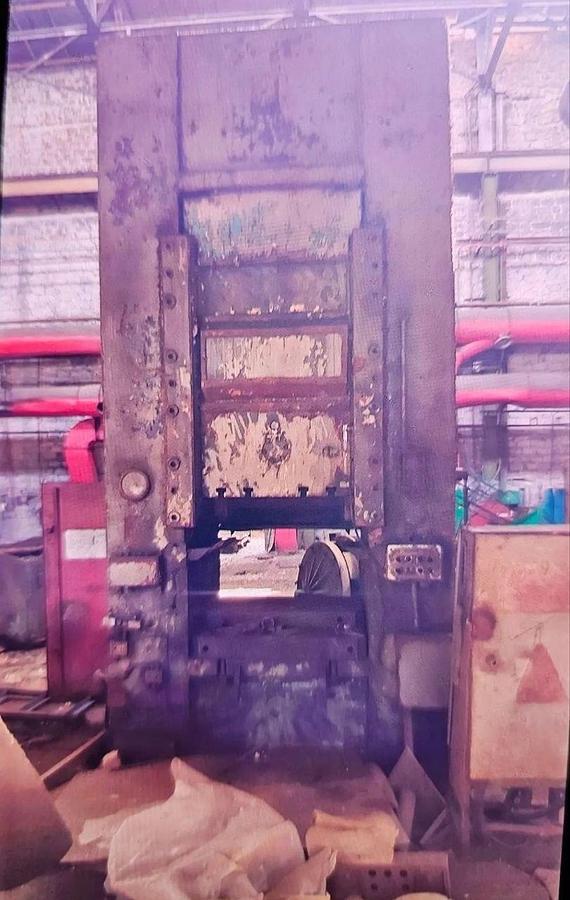

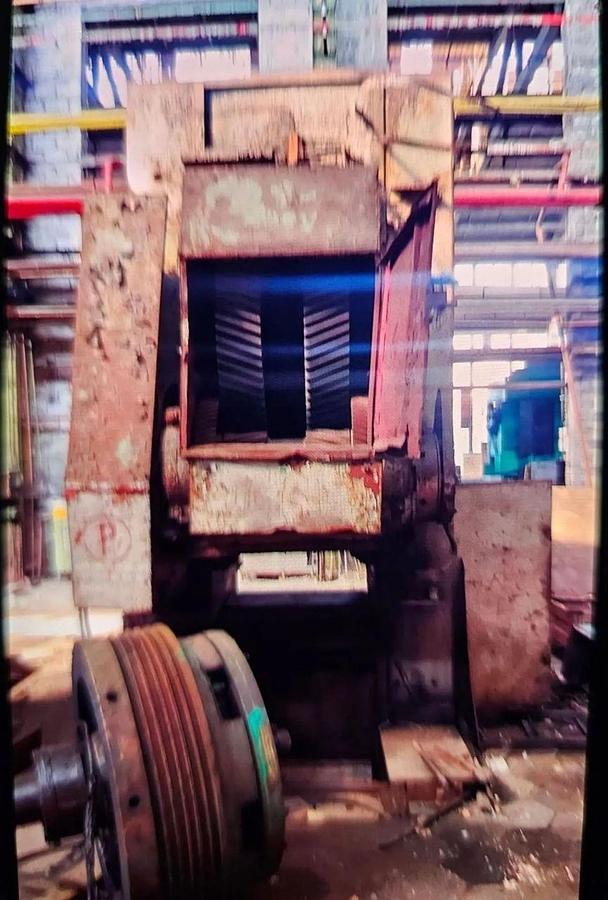

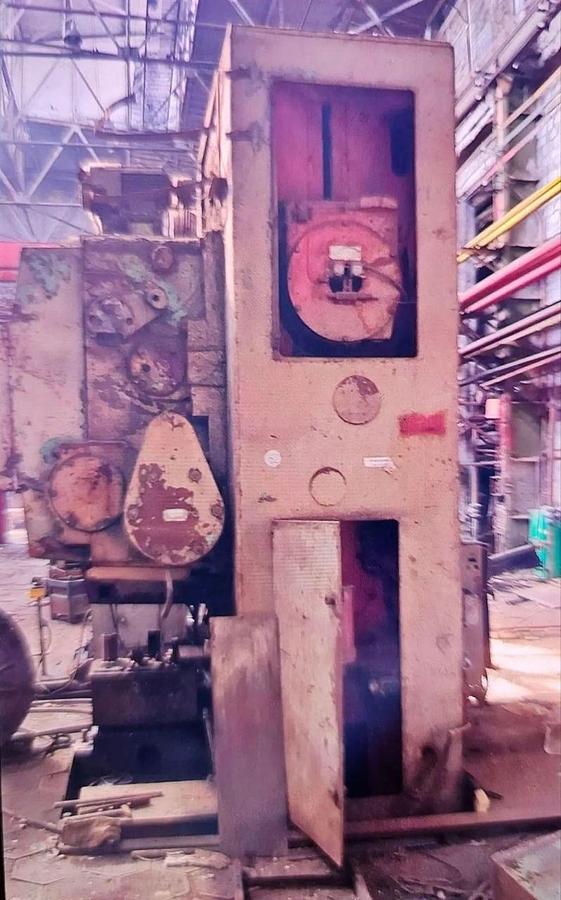

400 tons Press Cold Extrusion AC5100 Barnaul

Capacity : 400 tons,

Nominal effort : 4000 kN,

Ram stroke : 230 mm,

Number of strokes per minute 25,

Shut height : 750 mm,

Shut height adjustment : 16 mm,

Table size : 1000 x 1250 mm,

Slide dimension (front to back) : 940 mm,

Bolster plate thickness : 160 mm,

Slide dimension (left to right) : 900 mm,

Upper ejector stroke : 16 mm,

Upper ejector force : 160 kN,

Lower ejector stroke : 140 mm,

Lower ejector force : 500 kN,

Press rigidity (reference data) : 3600 kN,

Height above floor level : 4400 mm,

Overall dimensions : 2270 x 2600 x 4750 mm,

Weight : 37.4 tons.
