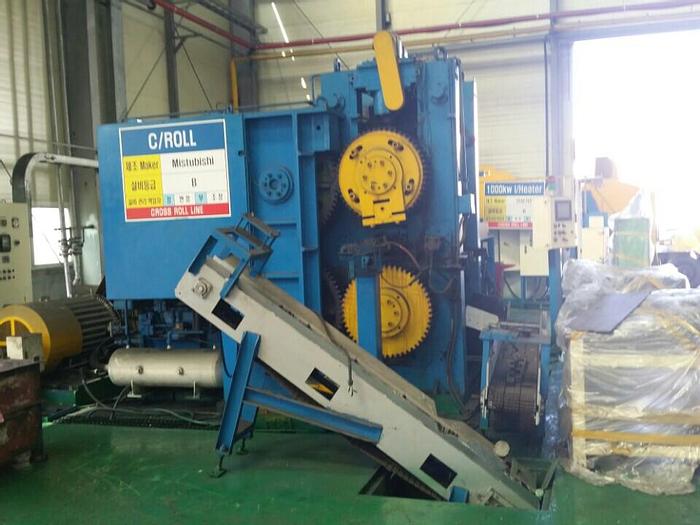

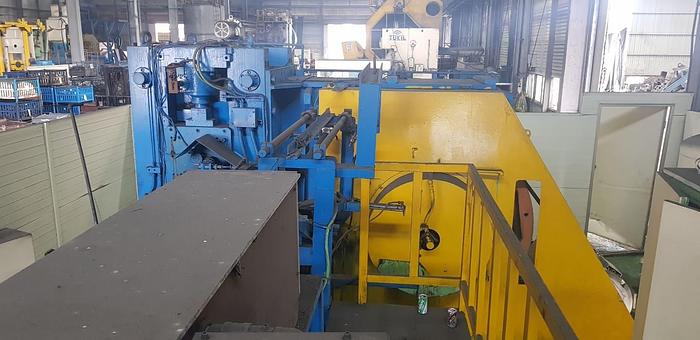

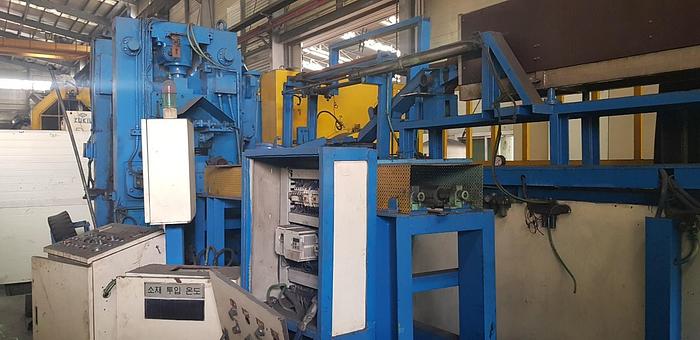

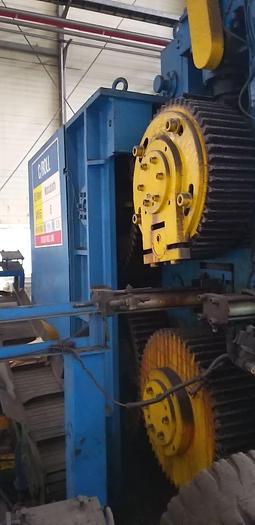

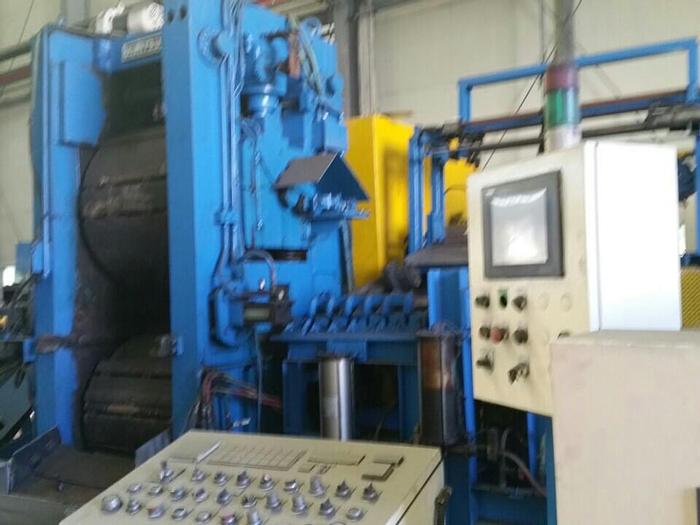

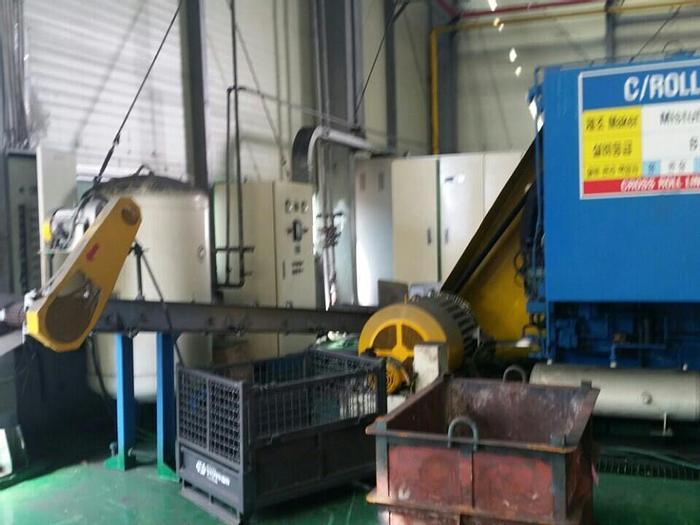

Cross Wedge Rolling Mill Mitsubishi

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerMitsubishi
Year2000
ConditionUsed
Stock NumberMA1581
Item conditionGood condition

Description

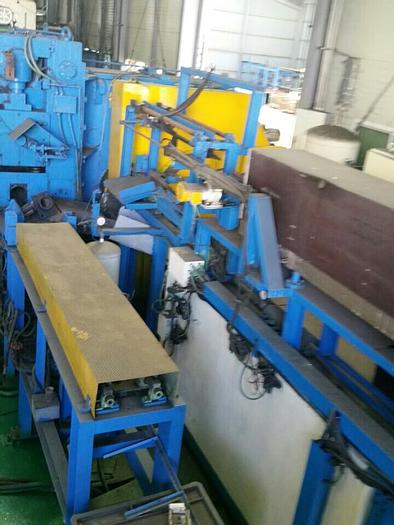

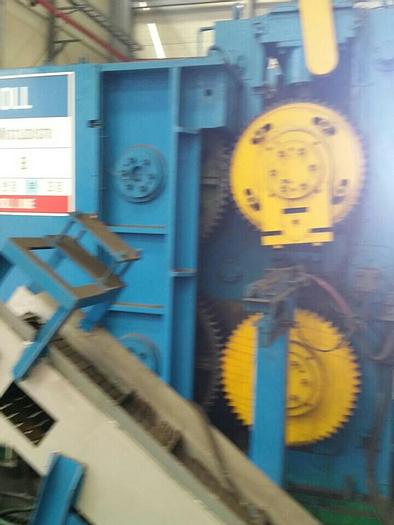

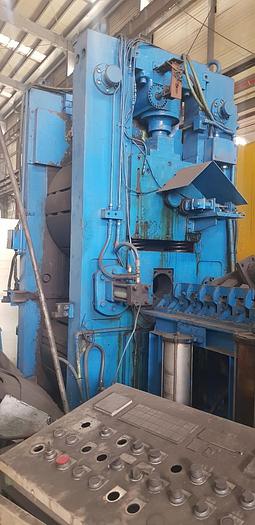

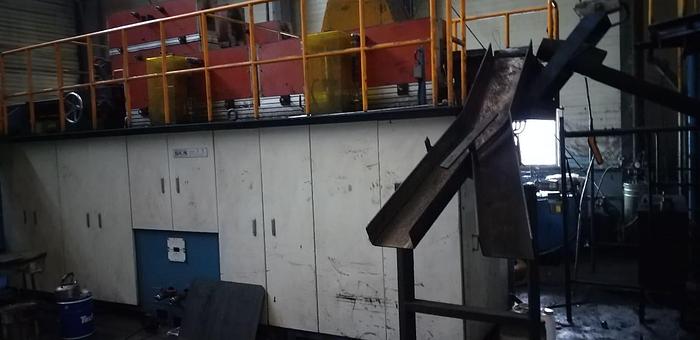

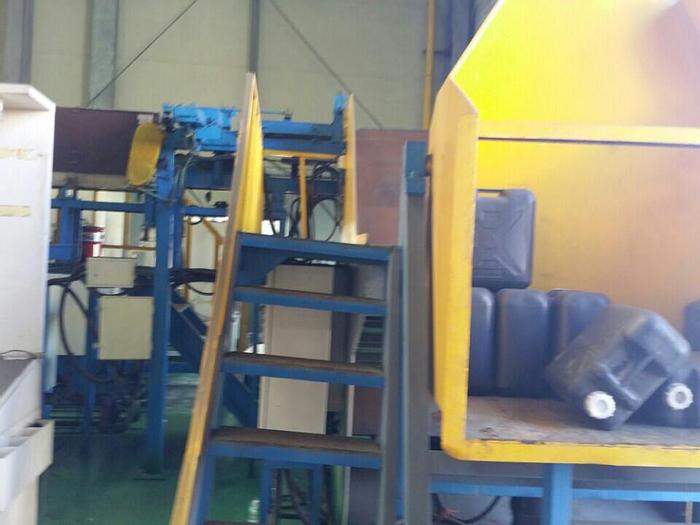

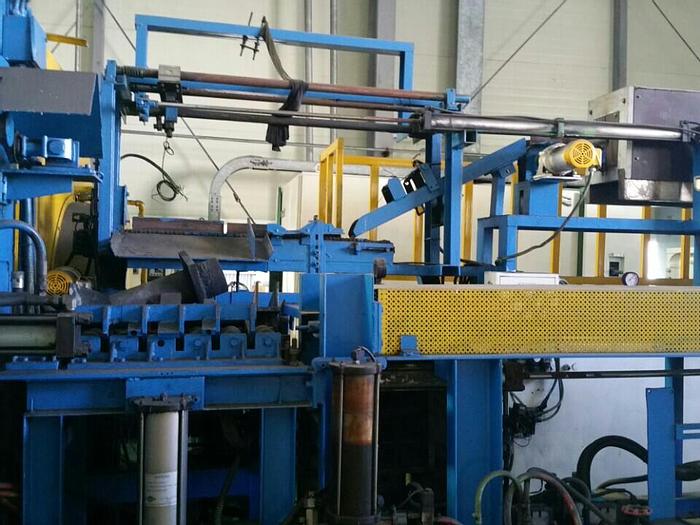

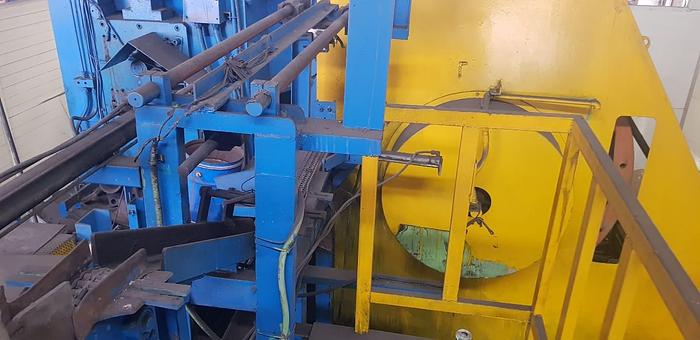

Cross Wedge Rolling Forging Line

Roll dice diameter: 1000 mm,

Roll diameter: 920 mm,

Roll width: 700 mm,

Roll speed: 10 rpm

Roll force power: 20 ton

Roll rotation torc: 14ton-m

Material diameter: 50-100mm

Workpiece length: Max.500mm

Reducer ratio: i=1/82

Main Motor: 150kw x 8p

Motor rpm: 900rpm

Main equipment weight: 37 ton

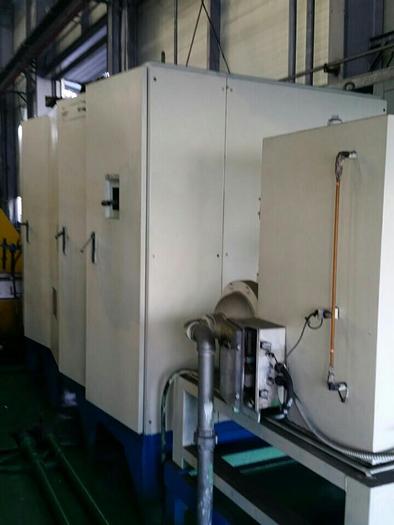

(Induction heater)

Manufacturer: Insung(Korean)

Manufacturing year: 2000

Main electric supply: AC 3 phase, 580V, 1500kVA, 60HZ

Output: 900V, 1000kW, 1.2 kHZ
